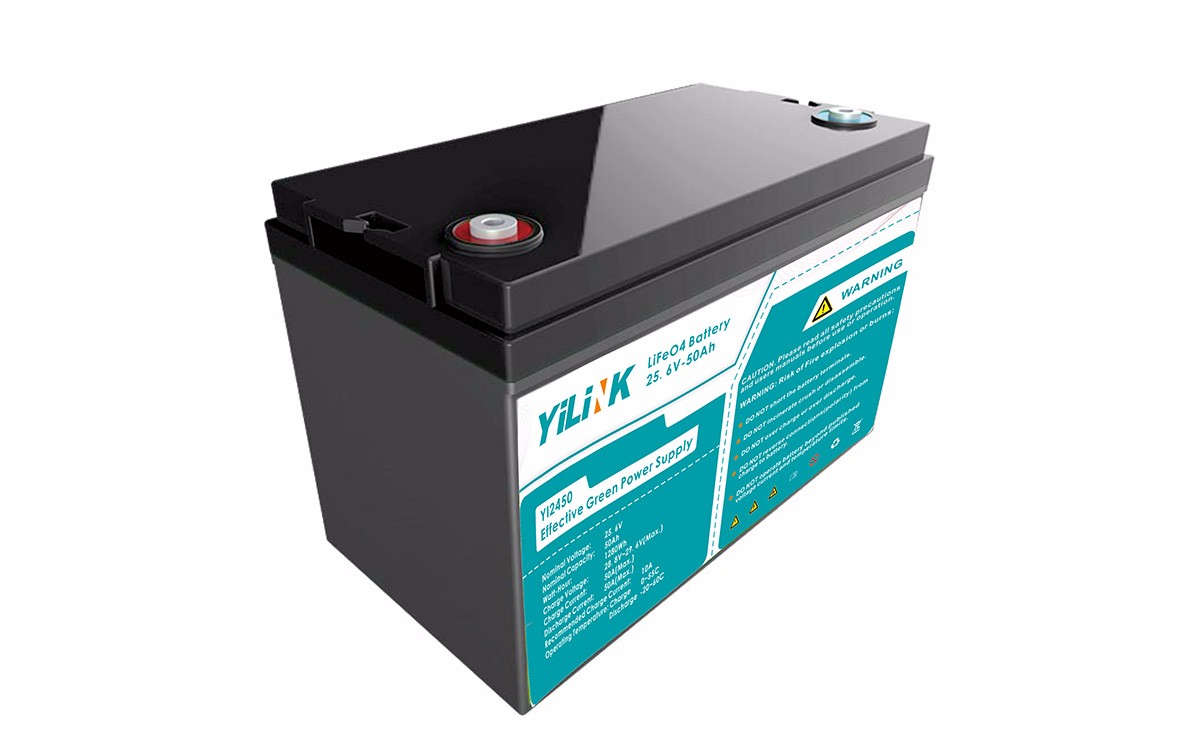

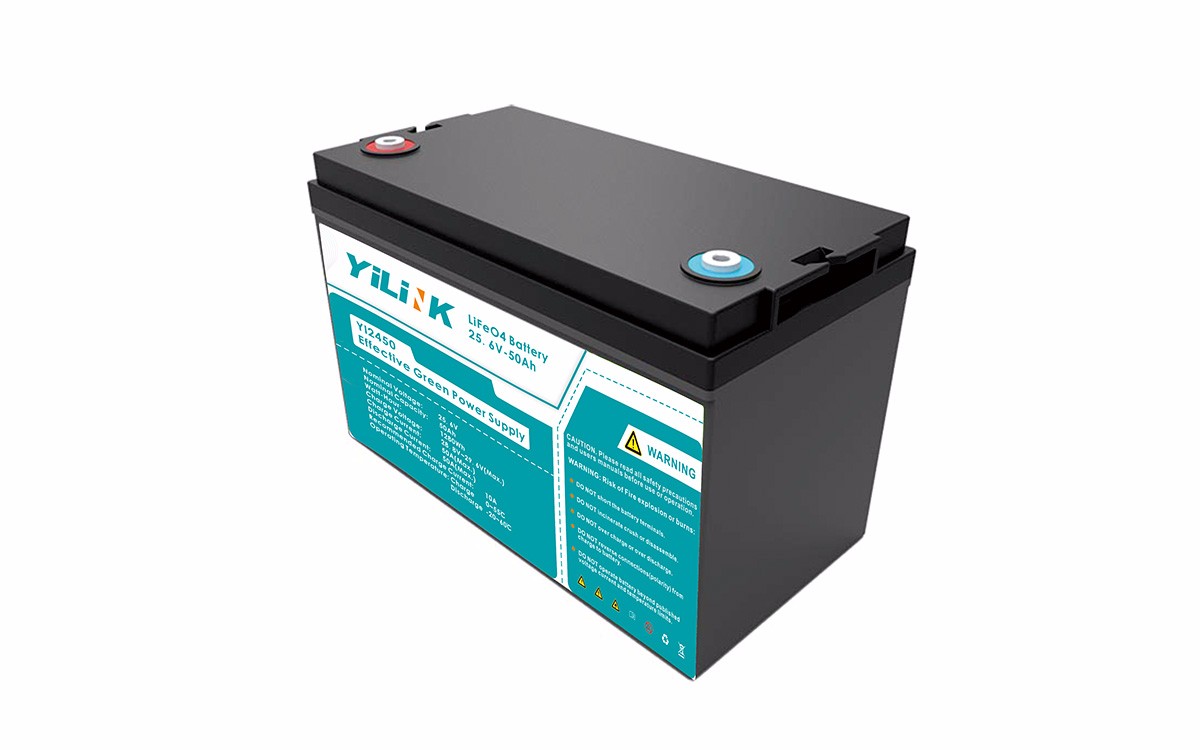

Lithium ion Lifepo4 24V50Ah 1200Wh Battery Lead Acid Battery Replacement

YILINK 24V Series lithium battery is tailored for lead acid battery replacement. It is designed outperform than traditional lead acid battery in terms of cycle life, efficiency, weight and reliability. YILINK 24V Series battery can be connected in parallel to gain more power and backup.

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	YL2450	YL24100
Battery Type	LiFeO4
Electrical Characteristics
Nominal Voltage(V)	25.6
Nominal Capacity(Ah)	50	100
Energy(kWh)	1.2	2.4
Max. Output Power(kW)	1.2	2.4
Internal Resistance(mΩ)	75	65
Working Voltage(V)	20~29.6
Cycle Life	≥3500，@35℃
Design Life(years)	≥10
Months Self Discharge	≤2%，@35℃
Efficiency of Charge&Discharge	≥99.5%，@0.2C
Charge Parameter
Charge Cut-off Voltage(V)	28.8~29.6
Charge Mode	CC-CV（0.2C to 14.4V，then 14.4V charge current to 0.02C）
Max.Charge Current(A)	50	100
Recommend Charge Current A）	10	20
Discharge Parameter
Discharge Cut-off Voltage(V)	20~22.4
Max.Discharge Current(A)	50	100
Recommend Charge Current A）	10	20
Environmental Parameter
Charge Temperature(℃)	0~55
Discharge Temperature(℃)	-20~60
Storage Temperature	-10~45℃，@60%±25%RH
Mechanical Parameter
Dimension（mm）WDH	330172215	522240218
Net Weight(Kg)	12.5	25
Output Terminal	M8

■ Build-in Intelligence battery protection system

■ Non-Toxic & Non-Hazardous cobalt- free LIfePO4 chemistry

■ Long cycle life, life > 1o years @25 ℃/ 77℉

■ Light-weight than equivalent lead-acid battery

■ Wide operating temperature range, good high and low temperature performance

■ High efficiency, energy saving, stable power supply

■ The powerful function of high power output, short time and high rate discharge

■ The self-discharge rate is extremely low and can be stored for a long time

■ No memory effect, maintenance-free

■ Bluetooth for option

■ LCD display for option

■ Communication function for option

■ Scalability

■ Easy installation
