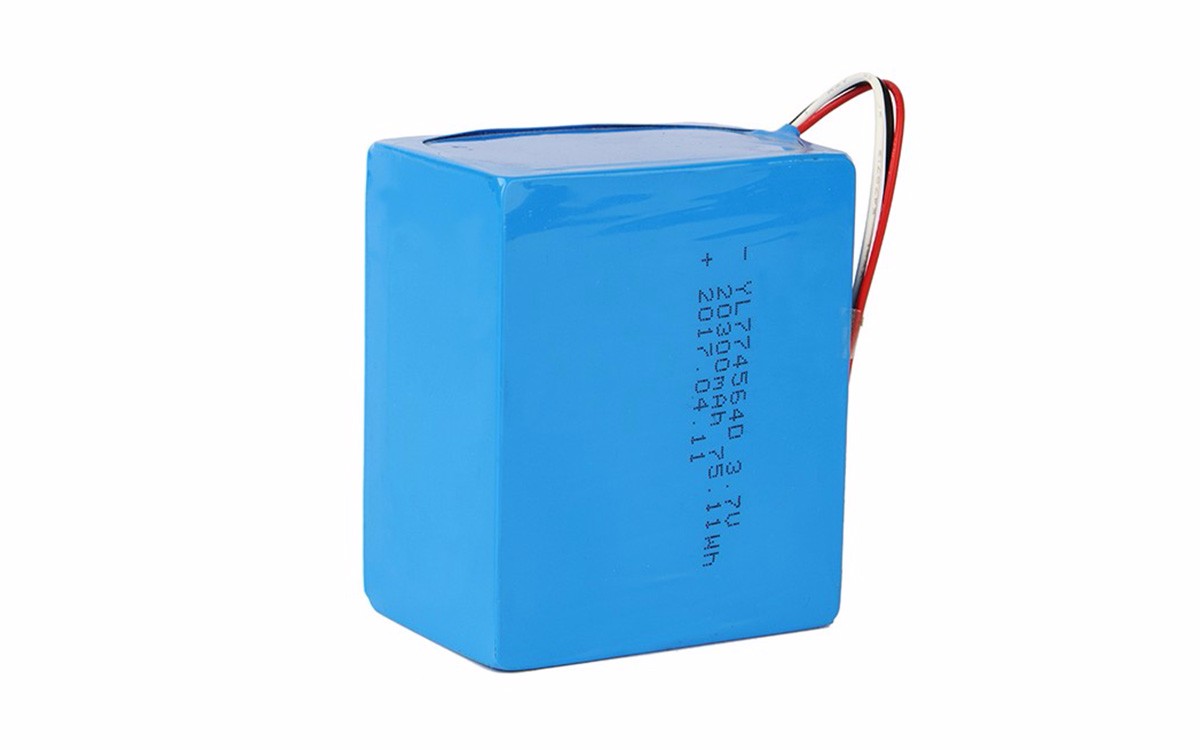

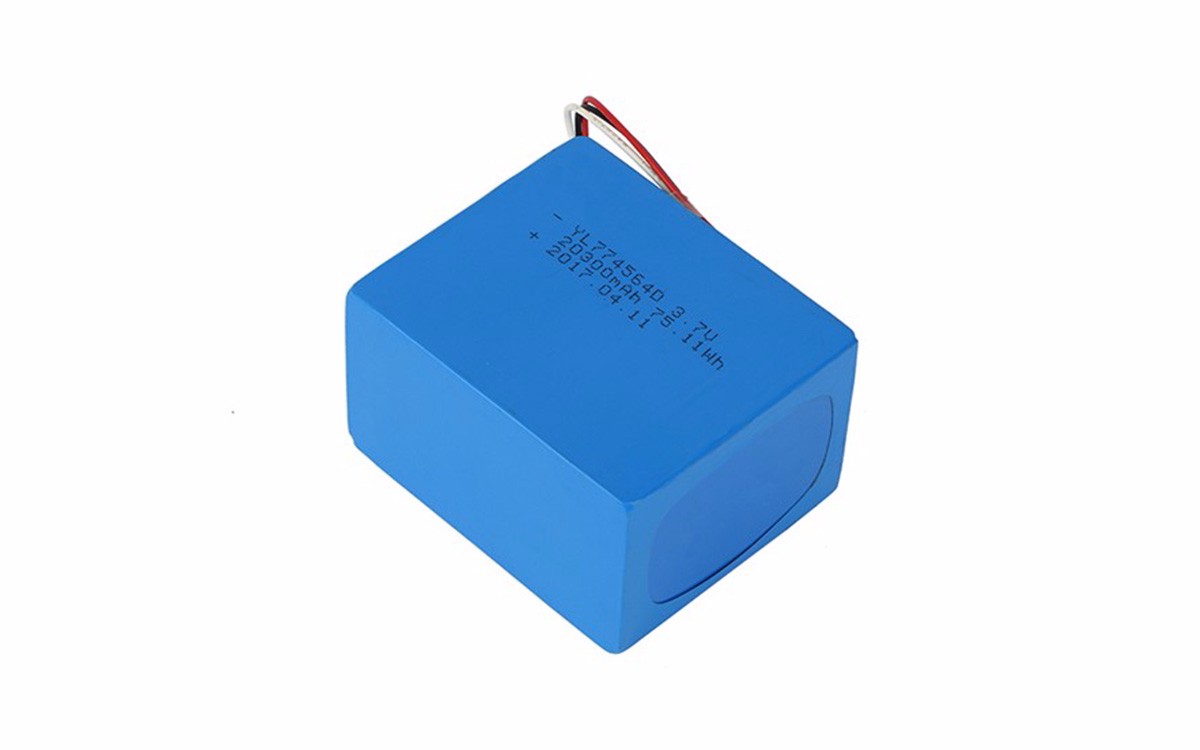

Lithium Li-polymer 7745640 3.7V 20.3AH Battery Pack For Outdoor Equipment

Return

Application：

Smart Device | Bluetooth Device | Wearable Device | Medical Device

Certification：

INQUIRY

Share it：

Item	Parameters	Note
Nominal DC Voltages - V	3.7V	The specifications are adjustable according to your specific needs
Rated Capacity - Ah	20.3Ah
Energy - Wh	75.11Wh
Battery Chemical	Li-polymer
Max continuous discharge current - A	20.3A
Peak discharge current – A & Sec	40.6A-2Sec
Max continuous charge current - A	10.15A
BMS/PCB	PCB
Protection	Over-Voltage
	Over-Current
	Over-Temperature
	Short - Circuit
Operation Temperature – ℃ / °F	-20～60℃ -4～140°F
Charge Temperature – ℃ / °F	0～40℃ 32～104°F
Storage Temperature – ℃ / °F	-20～45℃ -4～113°F
Dimension - mm	564768MM
Dimension - Inches	2.201.852.68Inches
Weight - Kg	0.4Kg
Weight – Lbs	0.88Lbs
Enclosure Material	PVC
Terminal	Customization
Communication	None
Maintenance	Maintenance Free
Application	Outdoor Equipment
