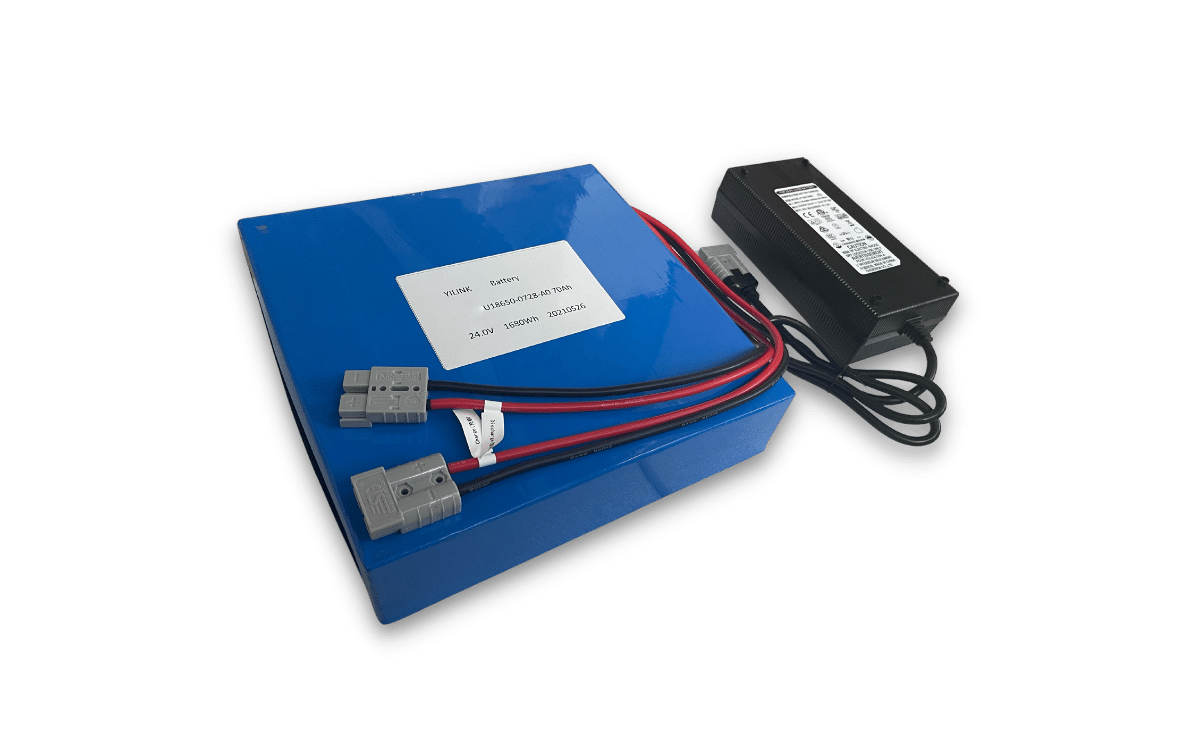

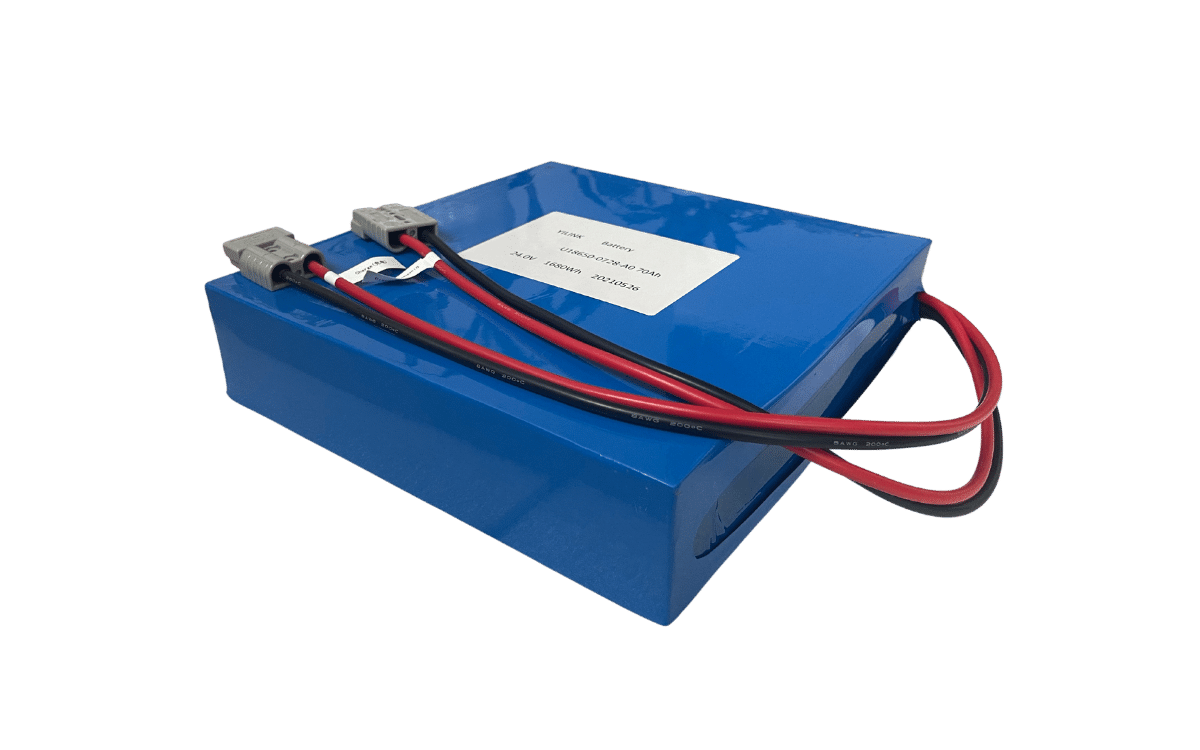

24V70Ah AGV Battery Motive Lithium Battery

Yilink 24V70Ah li-ion battery pack can be integrated into your varies applications, for instance, AGV, Robot, Marine, E-Scooter, ect. It’s RS485, CAN communication functions allows you to integrate it with your applications and products intelligently. The Yilink BMS provide it double protection to prevent the battery pack from any harsh risks, for instance, short-circuit, over-current, over-voltage, high-temperature, etc.

Application：

AGV | ROBOT | E-SCOOTER | MARINE

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	YL2470-0025
Battery Type	Li-ion/NCA
	Electrical Characteristics
Nominal Voltage(V)	25.2
Nominal Capacity(Ah)	70
Energy(kWh)	1.764
Max. Output Power(kW)	1.764
Internal Resistance(mΩ)	≤160 m Ω
Working Voltage(V)	19.4~29.4
Months Self Discharge	≤2%，@35℃
Efficiency of Charge & Discharge	≥99.5%，@0.2C
Charge Parameter
Charge Cut-off Voltage(V)	29.4±0.1V
Standard Charge Mode	0.2C14A constant current charge to 29.4V, then constant voltage 29.4V charge till charged current declines to ≤ 0.02C1.4A
Max. Charge Current(A)	35A
Recommend Charge Current A）	14A
Discharge Parameter
Discharge Cut-off Voltage(V)	19.6±0.2V
Max. Discharge Current(A)	70A
Recommend Discharge Current (A)	14A
Environmental Parameter
Charge Temperature(℃)	0~55
Discharge Temperature(℃)	-20~60
Storage Temperature	-10~45℃，@60%±25%RH
Mechanical Parameter
Dimension（mm）WDH	31030070MM
Net Weight (Kg)	9.3
Output Terminal	Anderson Connector

▎Briefly introduction

▎Advantages

Suitable for your varies applications: AGV, Robot, E-scooter, UPS, etc
RS485, CAN communication functions
Compact structure with high energy density, Lightweight
Green and environmental protection, using green materials, without any heavy metals
Wide operating temperature range
High efficiency, energy saving, stable power supply
The self-discharge rate is extremely low and can be stored for a long time
No memory effect, maintenance-free
Configurable communication function, intelligent management
Super long service life, lifetime> 1o year @ 25℃/ 77℉
