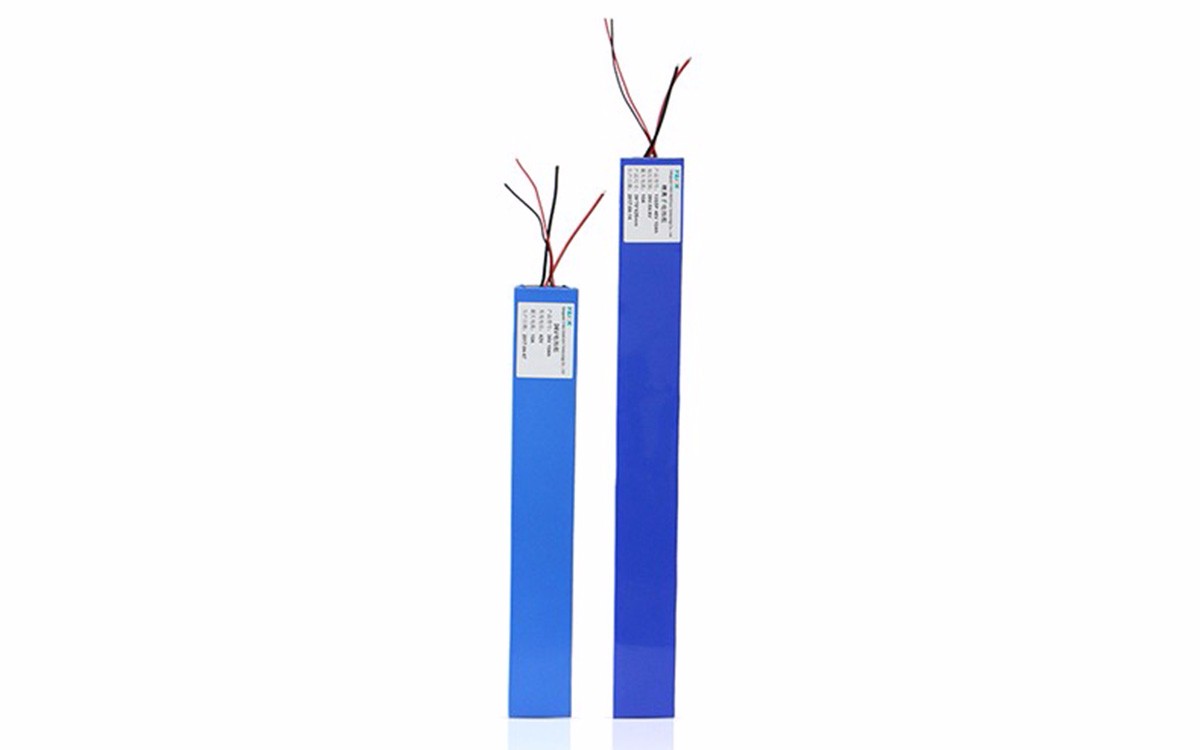

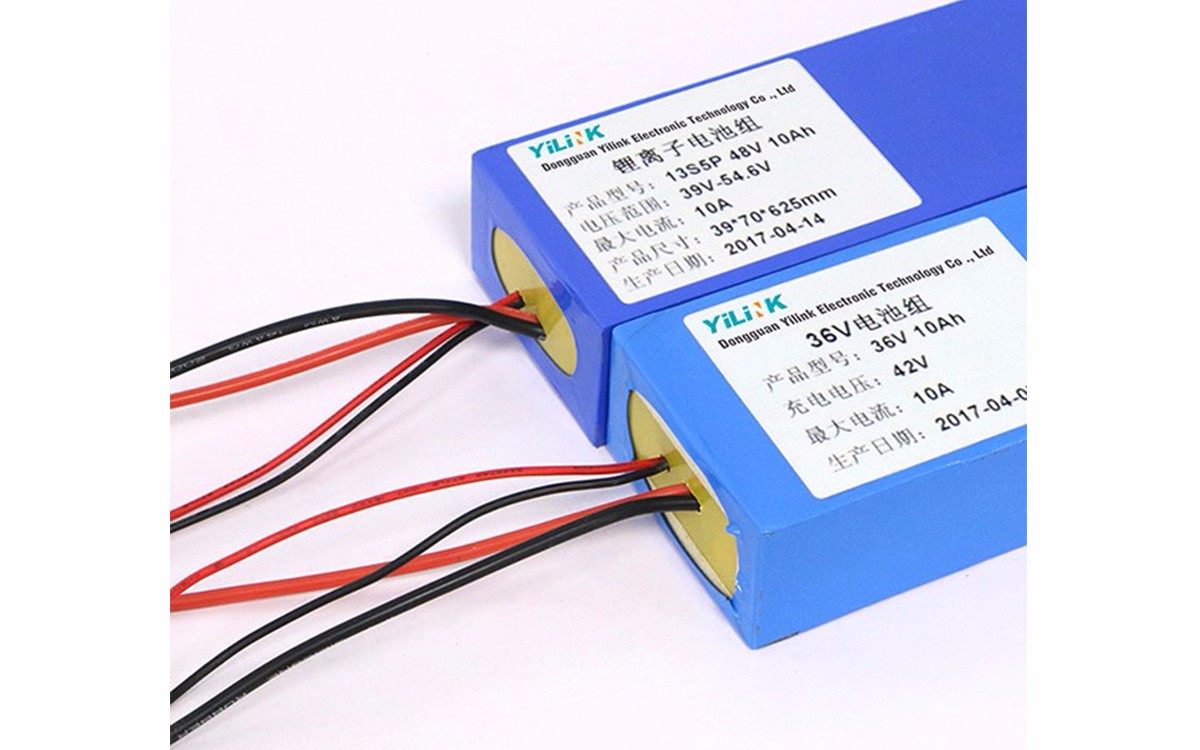

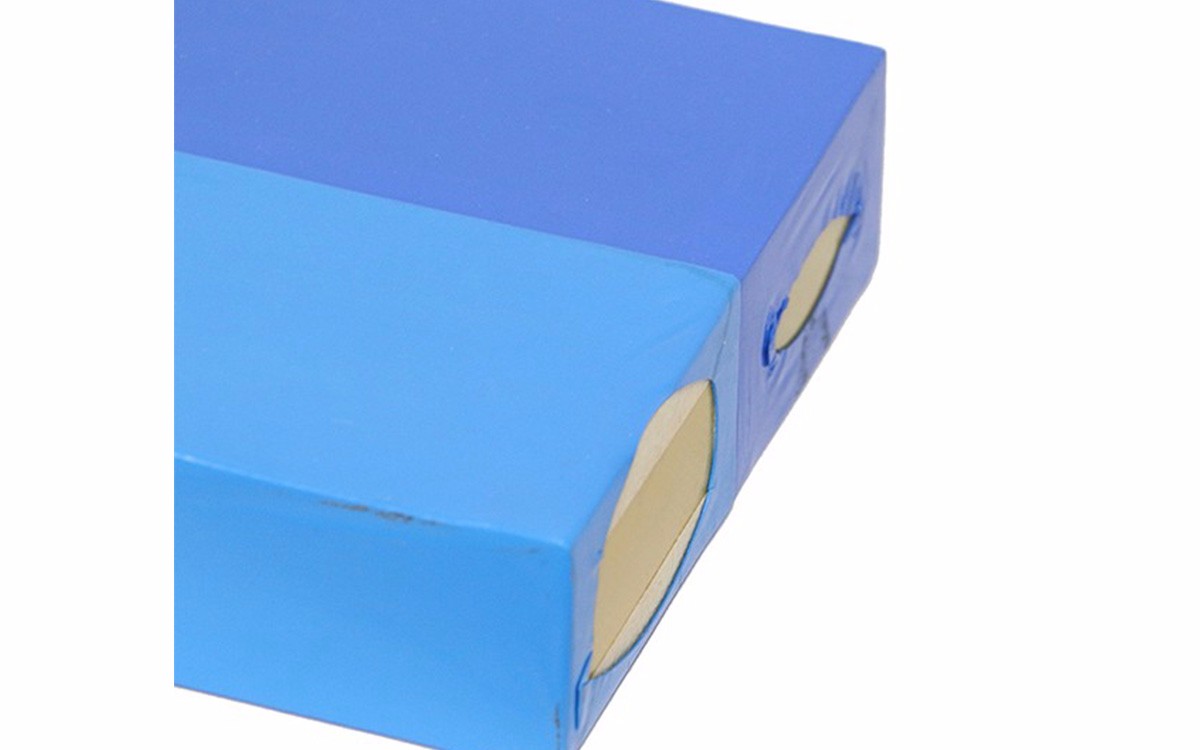

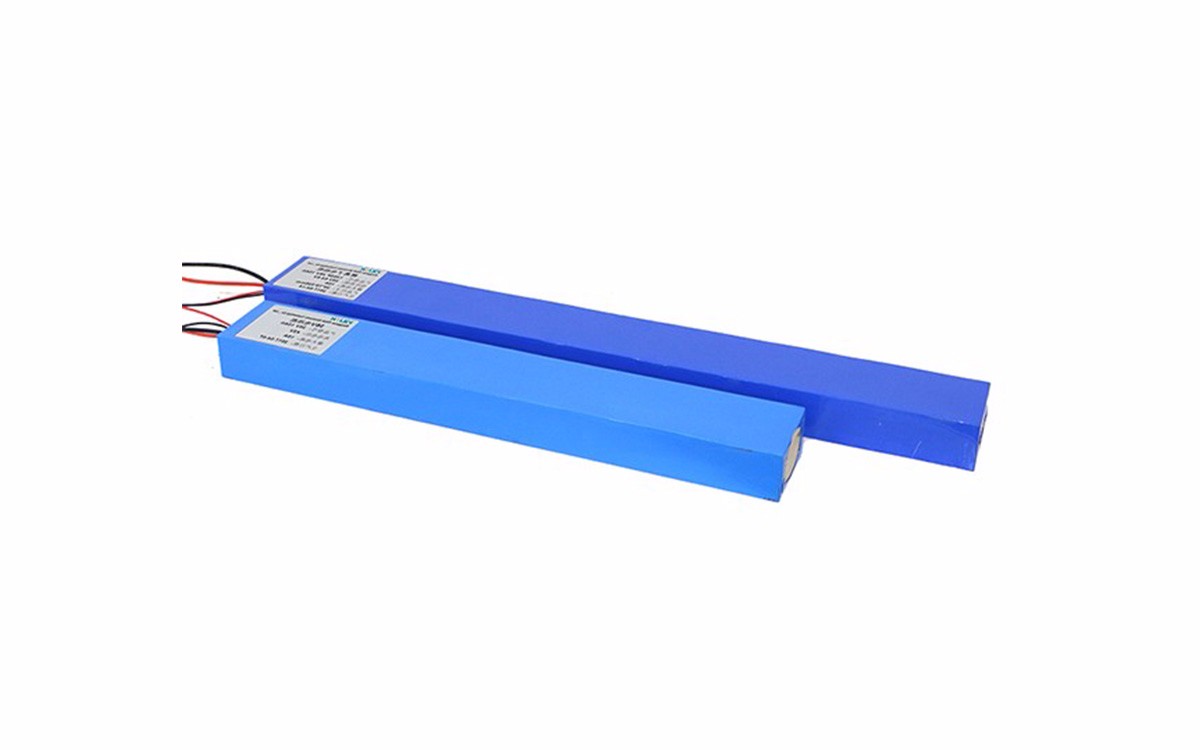

Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle
Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle
Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle
Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle
Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle
Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle
Application：
Electric Vehicle | Sightseeing Vehicle | AGV | Golf Carts | Low-speed Cars
Certification：
Lithium-ion NCM 48V10AH Battery Pack For Electric Vehicle

Share it：

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V48V










The specifications are adjustable according to your specific needs

Rated Capacity - Ah10Ah
Energy - Wh480Wh
Battery ChemicalNCM
Max continuous discharge current - A10A
Peak discharge current – A & Sec20A-2Sec
Max continuous charge current - A5A
BMS/PCBPCB



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20～60℃

-40～140°F

Charge Temperature – ℃ / °F

0～45℃

32～113°F

Storage Temperature – ℃ / °F

-10～45℃

24～113°F

Dimension - mm39*70*625mm
Dimension - Inches1.53*2.75*24.60Inches
Weight - Kg3.4Kg
Weight – Lbs7.50Lbs
Enclosure MaterialPVC
TerminalCustomization
CommunicationNone
MaintenanceMaintenance Free
ApplicationElectric Vehicle /  Robot,Back-up Power, etc
