Utility, C&I Batteries - YILINK Energy

LiFePO4

YILINK iPower Series

LifePO4 High-Voltage Lithium Battery

Through smart Lithium, Solar Precious Gifts to The Planet Should be Shared with and Sustained for Every People.

Solar Storage Lithium Battery

10 Years Warranty

Eco-Friendly

Process Reliable

Intellgigent and Scalable

Power Your Utility, Industrial &Commercial

The modular design and multiple levels of control allow you to meet a wide variety of backup needs for residential sites,commercial sites, industrial areas and communities.

YiLiNK high-voltage battery system integrates premium high-cycle lithium iron phosphate cells and battery management system with multiple levels of protection and monitoring.The reliable battery cells and energy management system can solve the power demand of each scenario and also bring excellent return on investment for the owner.

Power Your Utility, Industrial &Commercial

Get Benefits from iPower

Smart monitoring and communication with ■

Inverter, PCS and EMS

Multi-level protections and monitoring ■

Intelligent

Smart monitoring and communication with ■

Inverter, PCS and EMS

Multi-level protections and monitoring ■

Reliable

Highly reliable lithium battery cells and BMS ■

Voltage from 192V to 1500Vdc ■

with various capacities

■ Various installation supports:

wall mounting, rack mounting and container

installations Easy and flexible installation

Convenient

■ Various installation supports:

wall mounting, rack mounting and container

installations Easy and flexible installation

Durable

■ Designed life >15 Years

■ Cells balance system

■ 6000+ Cycles

Sustainable

■ Non-Toxic & Non-Hazardous cobalt-free

■ Eco-Friendly

Deploy & Power Everywhere

iPower LifePO4 batteries are ideal for off-grid and hybrid applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, farm, factory, data room, holiday hotel, etc.

Deploy & Power Everywhere

iPower LifePO4 batteries are ideal for off-grid and hybrid applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, farm, factory, data room, holiday hotel, etc.

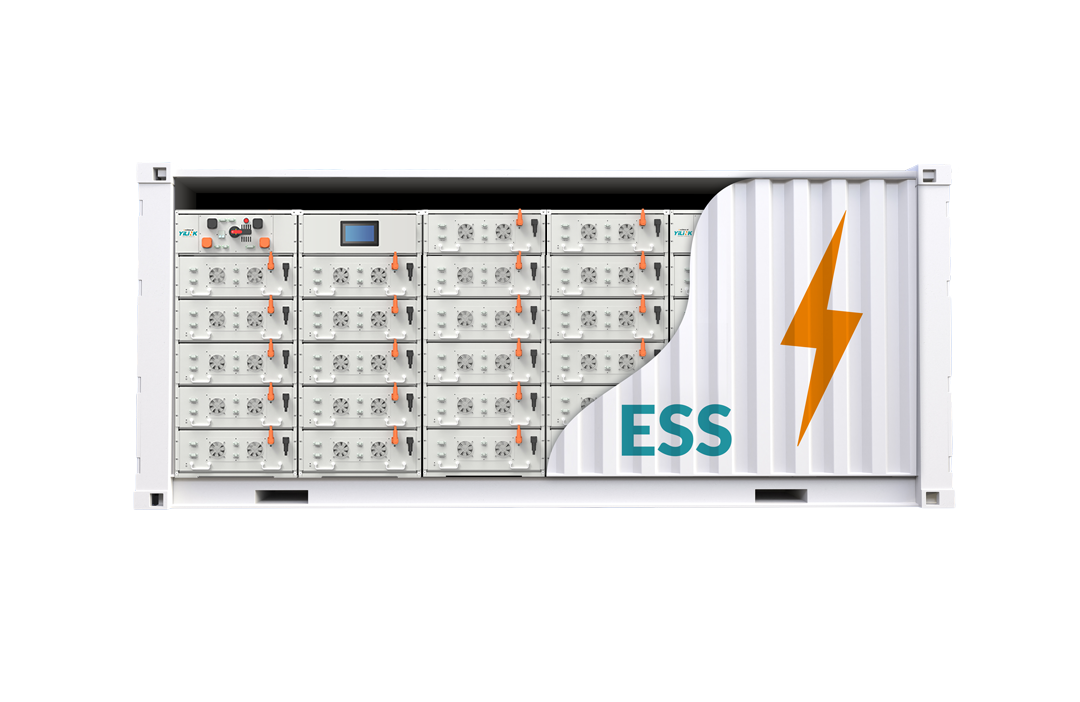

Power on Your Choice

A Glance at iPower

Battery Module

HVM206

Battery Type

Nominal Voltage(V)

Nominal Capacity(Ah)

Energy（kWh)

Dimension(mm)D*W*H

LiFePO4

48

206

9.888

460*640*228

HVM280

Battery Type

Nominal Voltage(V)

Nominal Capacity(Ah)

Energy（kWh)

Dimension(mm)D*W*H

LiFePO4

48

280

13.440

550*640*228

HVM412

Battery Type

Nominal Voltage(V)

Nominal Capacity(Ah)

Energy（kWh)

Dimension(mm)D*W*H

LiFePO4

48

412

19.776

730*640*228

Cycle Life：

More than 6,000 Times, @0.2C, 80% DoD, 25℃

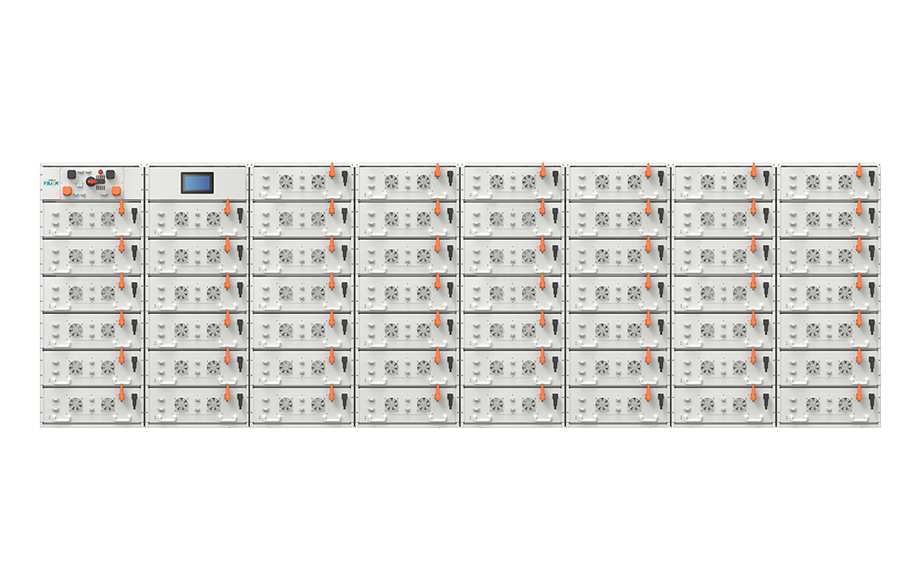

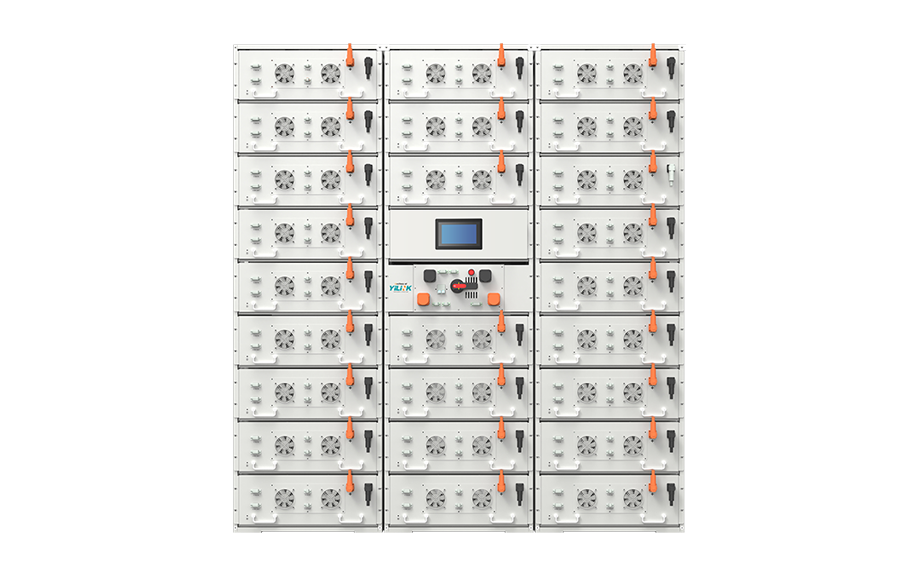

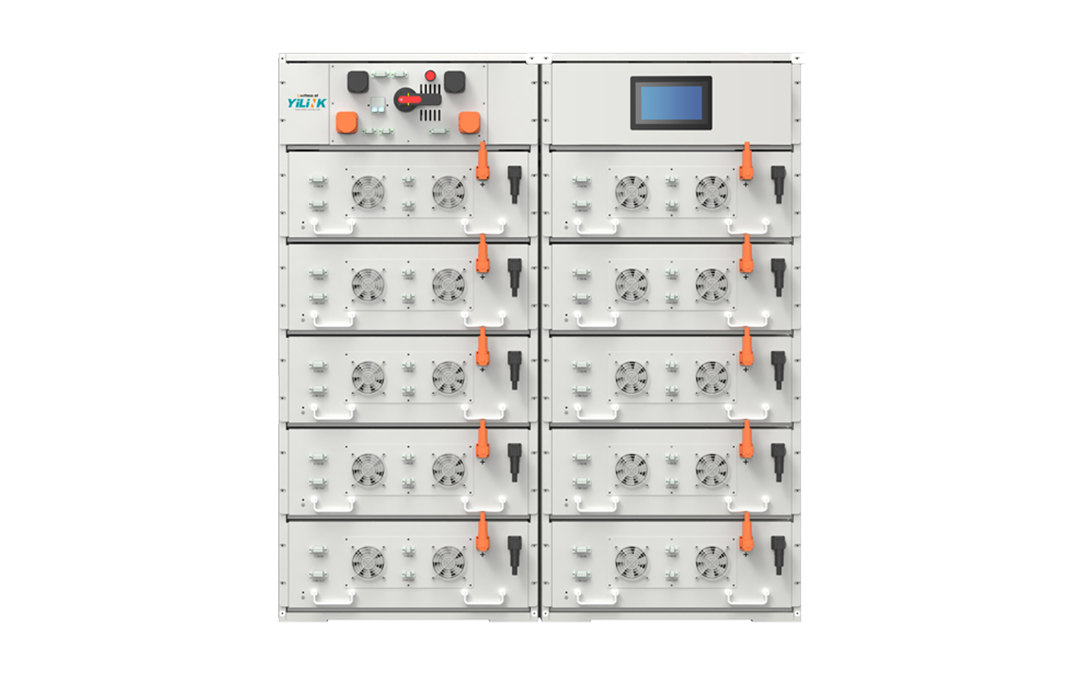

Battery Cluster & Stack

YL-C384280

Battery Type

Nominal Voltage (V)

Nominal Capacity (Ah)

Energy (kWh)

Max. Output Power (kW)

Operating Voltage (V)

Dimension (mm) D*W*H

Gross weight (Approx.kg)

Recommend DoD

Efficiency of Charge & Discharge

Communication

Parallel Capability

Operation Temperature

Calendar Life

Protection Level

Cooling Type

Standards

LiFePO4

384

280

107.520

50

300~438

790*1400*1250

1000

80~90%

≥99.5% @0.2C

CAN/RS485/Modbus

15*Clusters

-20~55℃

10 Years

IP21

Air cooling + Natural cooling

UL9540A; UL1973; CE; IEC62619; UN38.3

YL-C528280

Battery Type

Nominal Voltage (V)

Nominal Capacity (Ah)

Energy (kWh)

Max. Output Power (kW)

Operating Voltage (V)

Dimension (mm) D*W*H

Gross weight (Approx.kg)

Recommend DoD

Efficiency of Charge & Discharge

Communication

Parallel Capability

Operation Temperature

Calendar Life

Protection Level

Cooling Type

Standards

LiFePO4

528

280

147.840

75

412.5~602.25

790*1400*1500

1320

80~90%

≥99.5% @0.2C

CAN/RS485/Modbus

15*Clusters

-20~55℃

10 Years

IP21

Air cooling + Natural cooling

UL9540A; UL1973; CE; IEC62619; UN38.3

YL -C720280

Battery Type

Nominal Voltage (V)

Nominal Capacity (Ah)

Energy (kWh)

Max. Output Power (kW)

Operating Voltage (V)

Dimension (mm) D*W*H

Gross weight (Approx.kg)

Recommend DoD

Efficiency of Charge & Discharge

Communication

Parallel Capability

Operation Temperature

Calendar Life

Protection Level

Cooling Type

Standards

LiFePO4

720

280

201.600

100

562.50~821.25

790*1400*2150

1800

80~90%

≥99.5% @0.2C

CAN/RS485/Modbus

15*Clusters

-20~55℃

10 Years

IP21

Air cooling + Natural cooling

UL9540A; UL1973; CE; IEC62619; UN38.3

YL -C1248280

Battery Type

Nominal Voltage (V)

Nominal Capacity (Ah)

Energy (kWh)

Max. Output Power (kW)

Operating Voltage (V)

Dimension (mm) D*W*H

Gross weight (Approx.kg)

Recommend DoD

Efficiency of Charge & Discharge

Communication

Parallel Capability

Operation Temperature

Calendar Life

Protection Level

Cooling Type

Standards

LiFePO4

1075.2

280

301.056

150

840~1226.4

790*2090*1950

2620

80~90%

≥99.5% @0.2C

CAN/RS485/Modbus

15*Clusters

-20~55℃

10 Years

IP21

Air cooling + Natural cooling

UL9540A; UL1973; CE; IEC62619; UN38.3

YL-C1248412

Battery Type

Nominal Voltage (V)

Nominal Capacity (Ah)

Energy (kWh)

Max. Output Power (kW)

Operating Voltage (V)

Dimension (mm) D*W*H

Gross weight (Approx.kg)

Recommend DoD

Efficiency of Charge & Discharge

Communication

Parallel Capability

Operation Temperature

Calendar Life

Protection Level

Cooling Type

Standards

LiFePO4

1248

412

514.176

250

975~1423.5

755*2090*2260

4100

80~90%

≥99.5% @0.2C

CAN/RS485/Modbus

15*Clusters

-20~55℃

10 Years

IP21

Air cooling + Natural cooling

UL9540A; UL1973; CE; IEC62619; UN38.3

Remark

Battery Type

Nominal Voltage

Nominal Capacity

Energy

Max. Output Power

Operating Voltage

Dimension

Gross weight

Recommend DoD

Efficiency of Charge & Discharge

Communication

Parallel Capability

Operation Temperature

Calendar Life

Protection Level

Cooling Type

Standards

/

Can be up to 1500Vdc

Capacity can be Battery Module

Depends on FinalSpec Confirmation

/

Power Your Utility, Industrial &Commercial

Discover More Lithium Batteries

100kW/215kWh Solar Lithium Energy Storage System YILINK

50kW/100kWh Solar Lithium Energy Storage System YILINK

Water-proof Wall Mounted 384VDC Battery LifePO4 Lithium Battery YILINK iPower

Powerwall Battery 48V300Ah 15kWh LifePO4 Lithium Battery YILINK iPower

Power Cube Off-grid Home Energy Storage System

High Voltage Battery 192-240V LifePO4Lithium Battery YlLlNK iPower

Portable Power Station Advanced Lithium Technology Solid-state Battery YILINK

Powerwall 48V200Ah 10kWh LifePO4 Lithium Battery YILINK iPower

Utility C&I Batteries AC+DC All in One Lithium Battery YILINK

Utility C&I Batteries 192V-1500Vdc LiFePO4 Lithium Battery YlLlNK

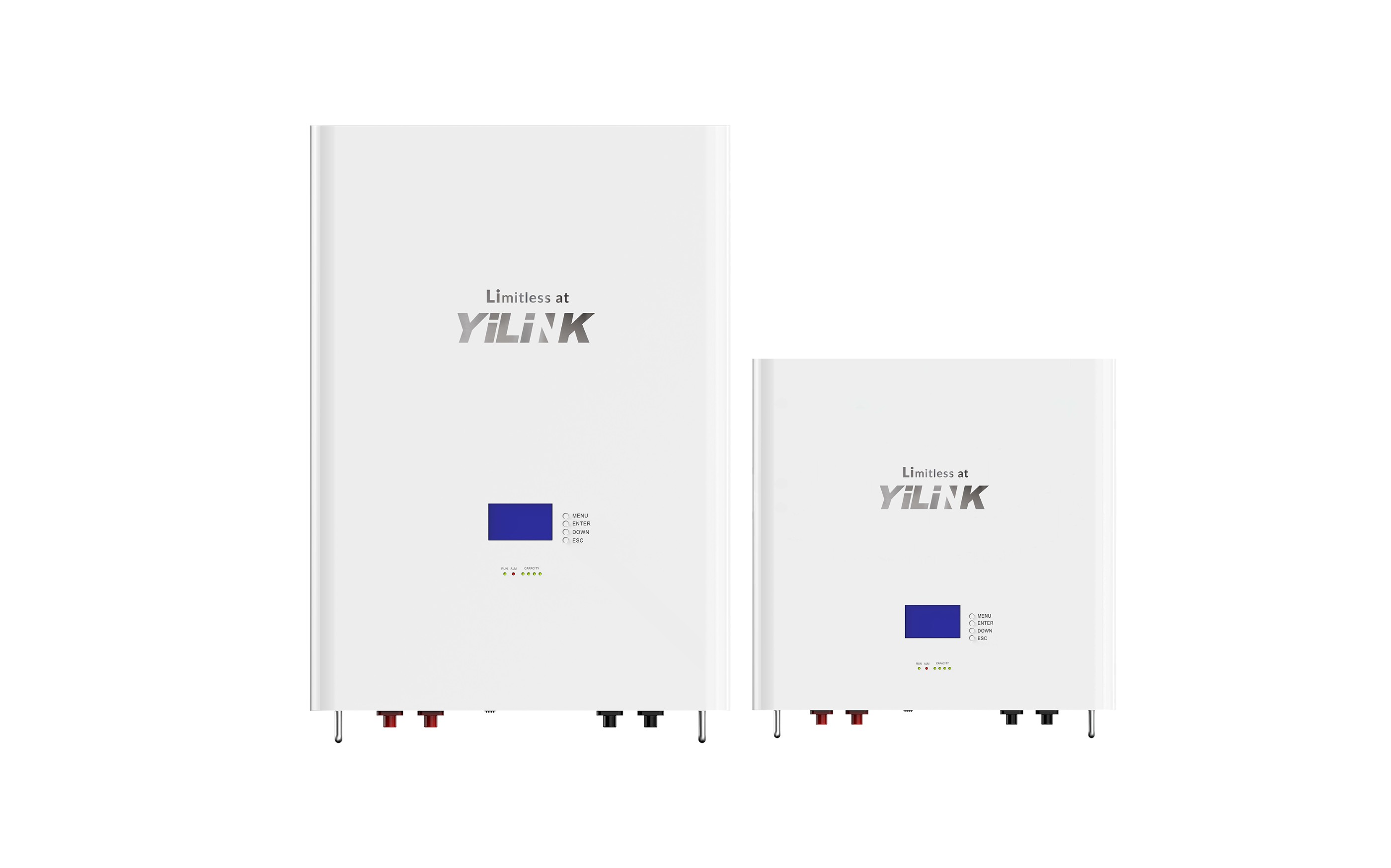

Powerwall 48V100Ah 150Ah 200Ah 4.8Kwh 7.2Kwh 9.6Kwh LifePO4 Lithium Battery

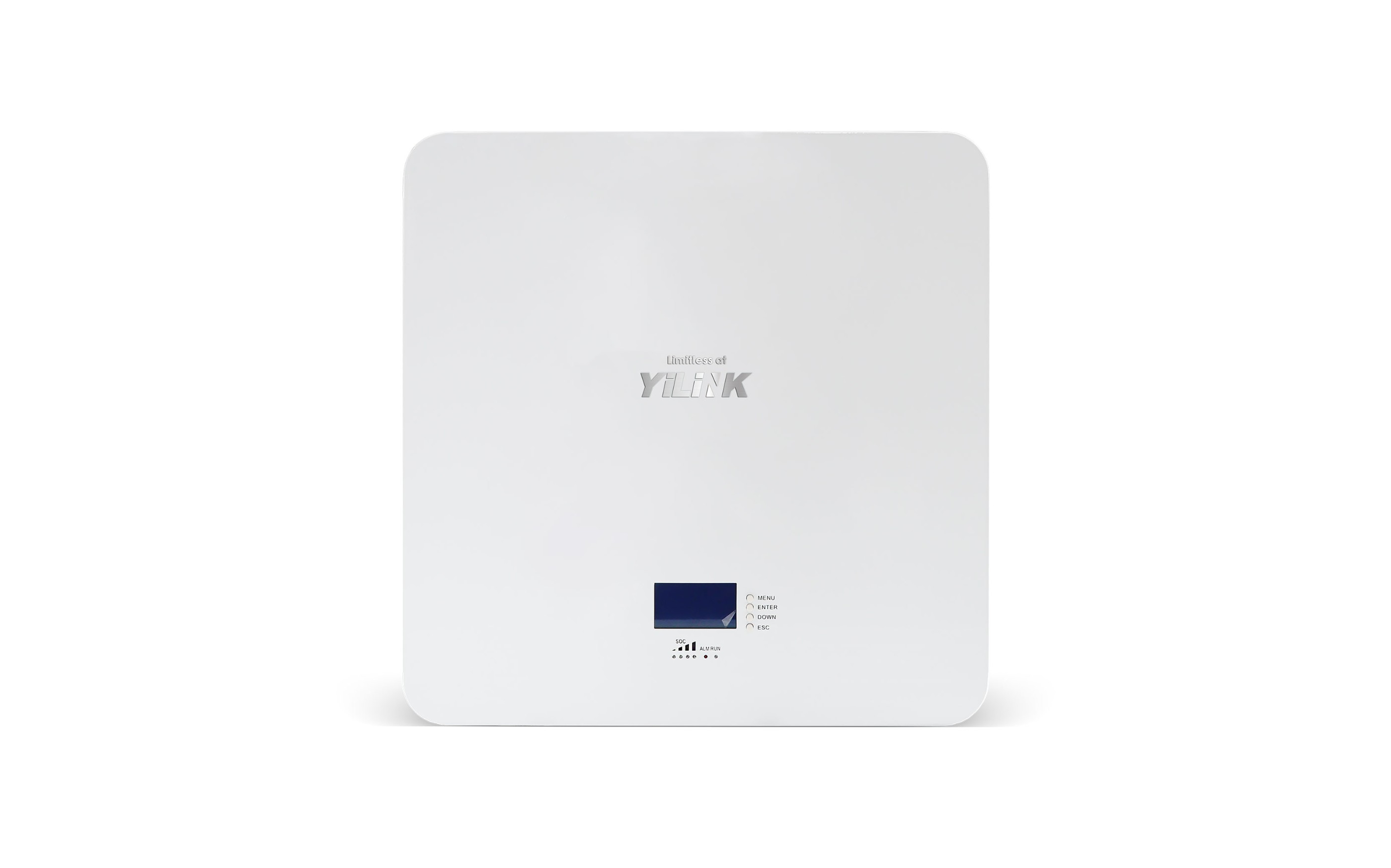

Powerwall 48V100Ah 5Kwh LifePO4 Lithium Battery YILINK iPower
