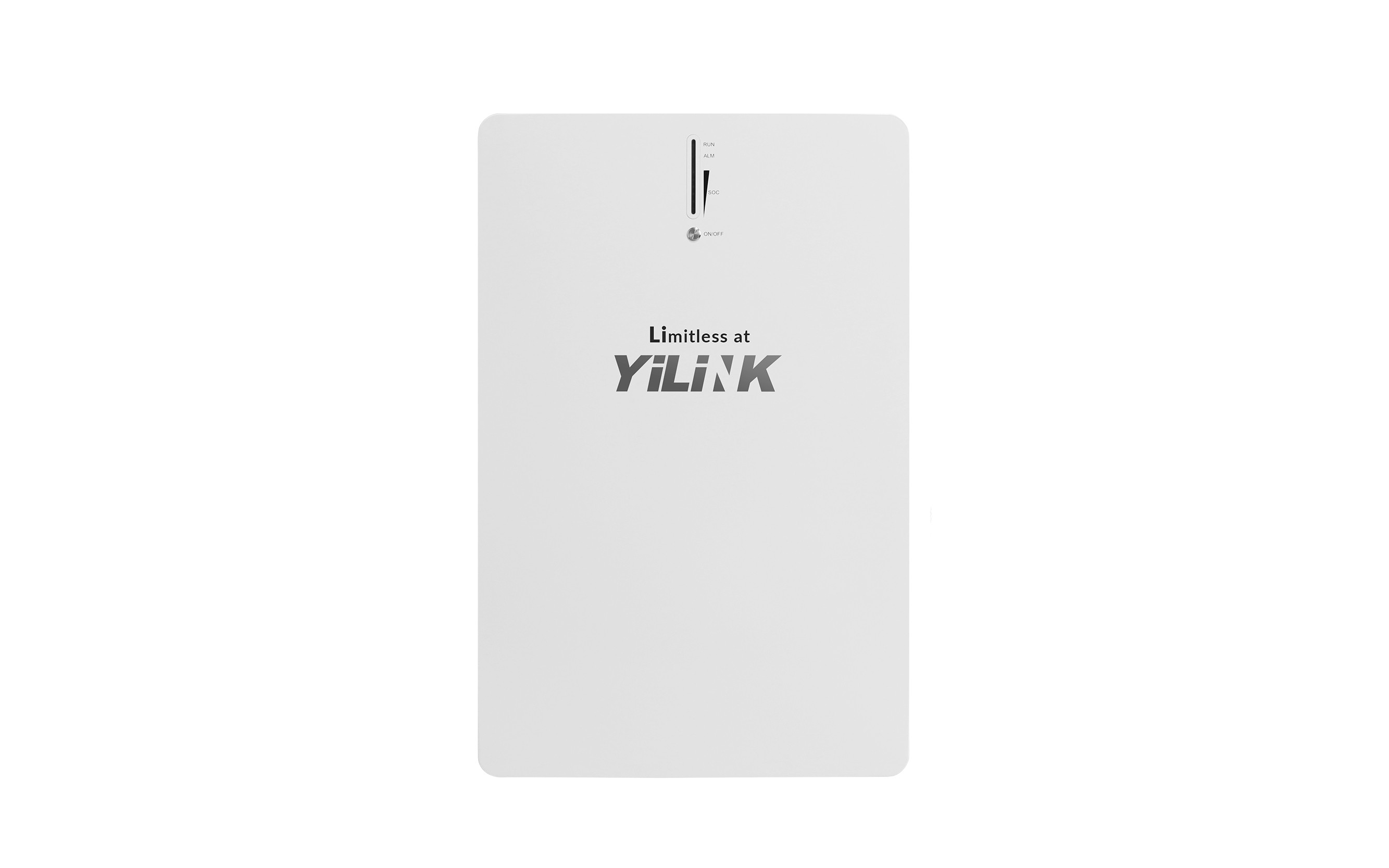

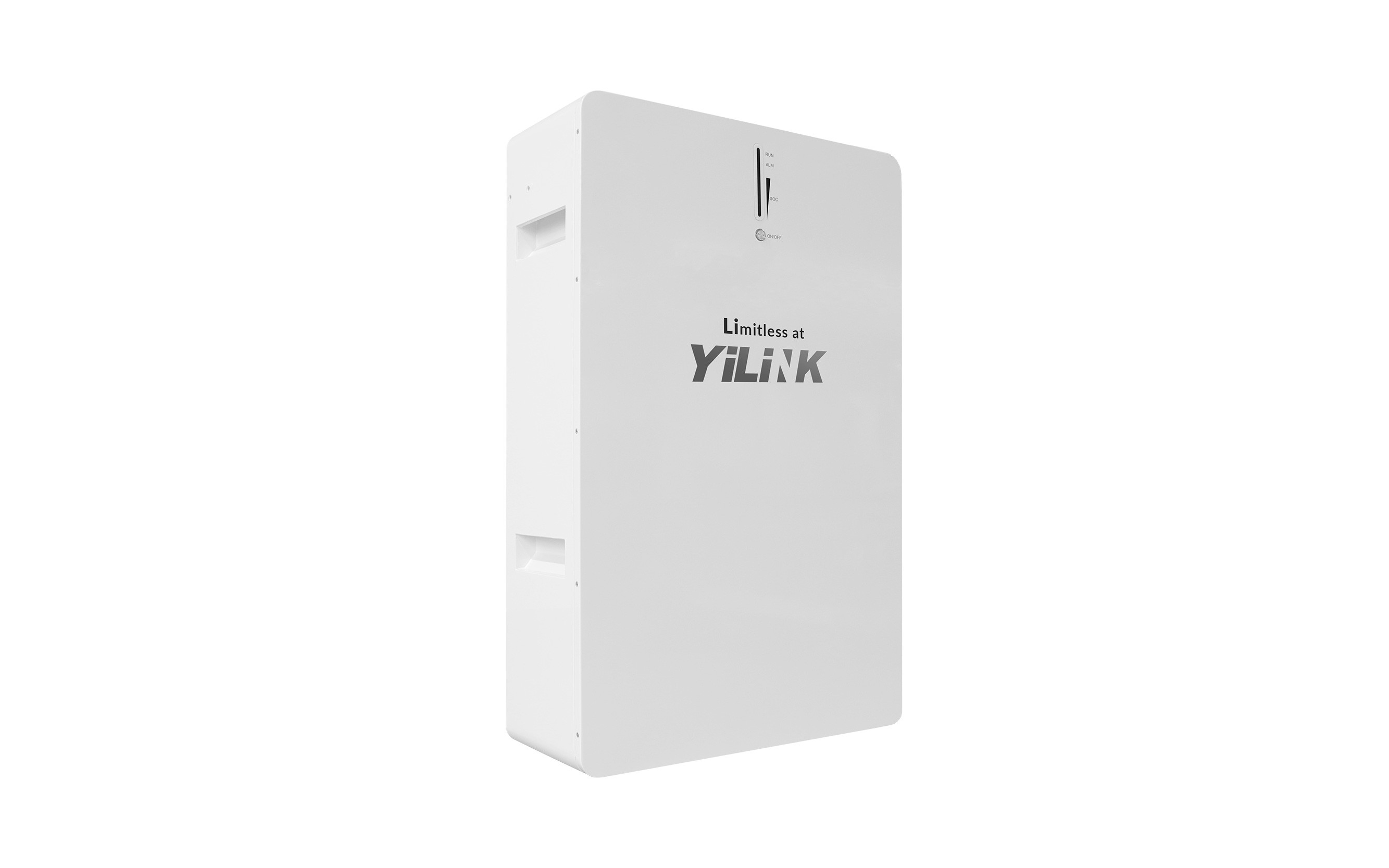

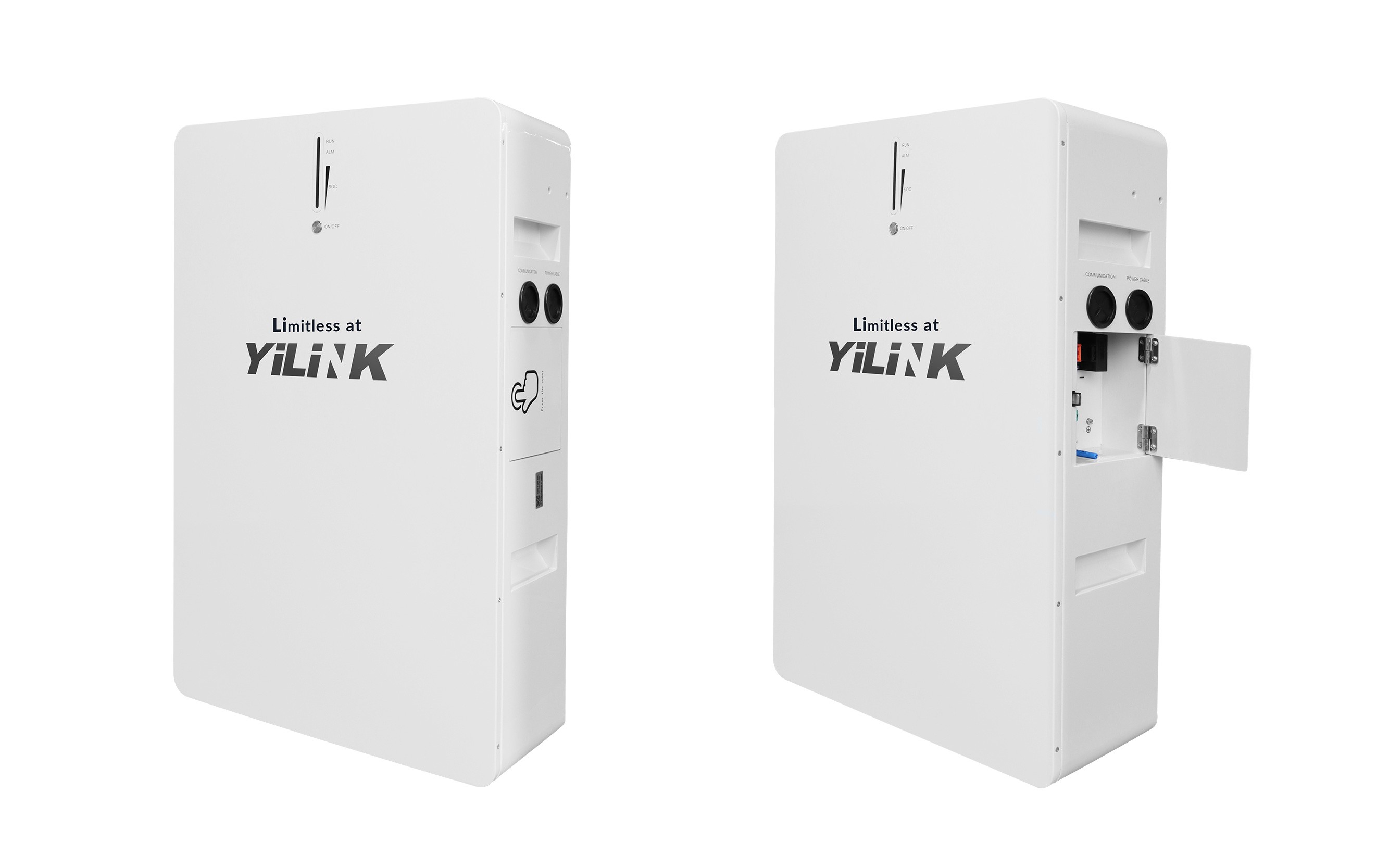

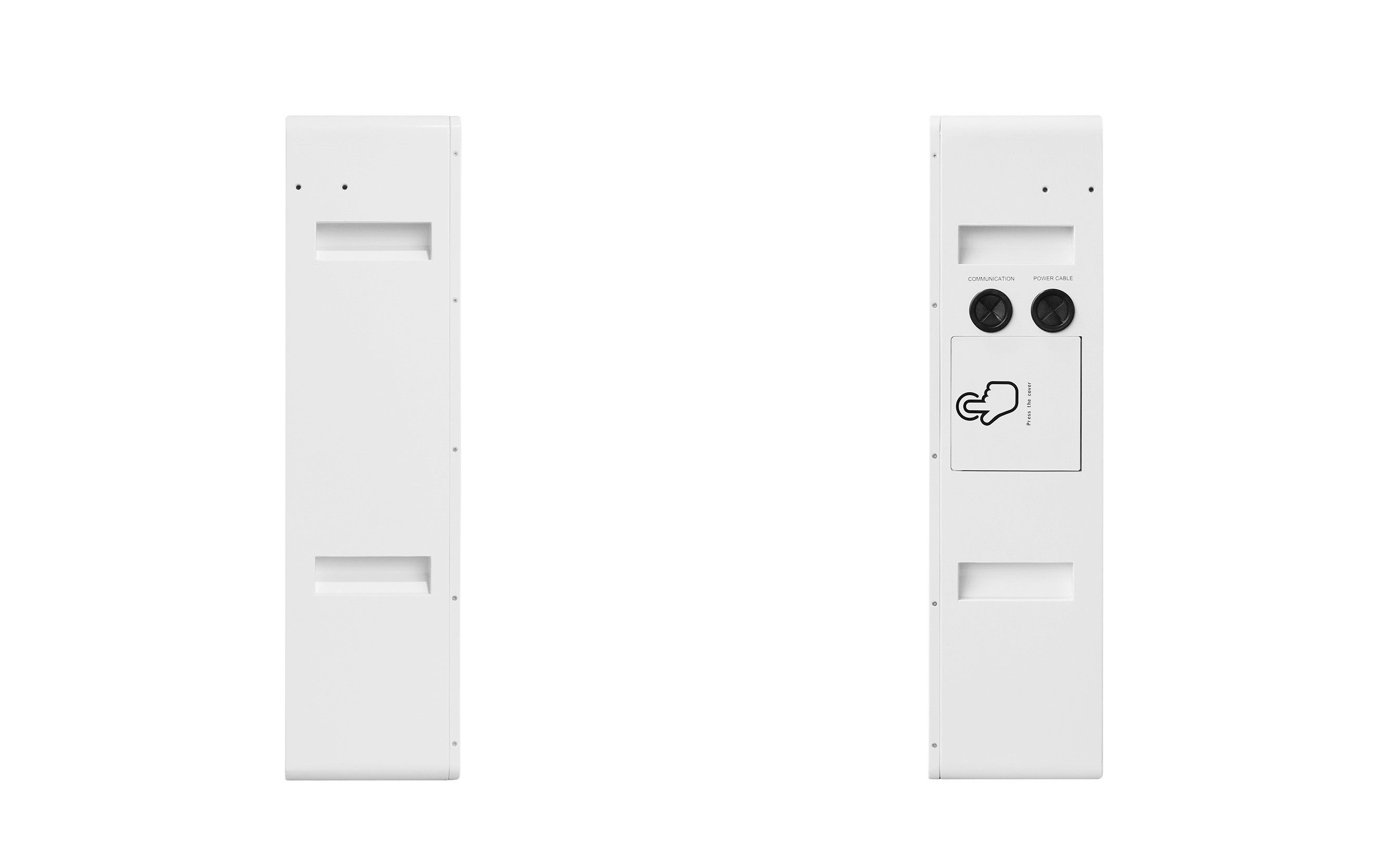

Powerwall Battery 48V300Ah 15kWh LifePO4 Lithium Battery YILINK iPower

Return

Powerwall Battery 48V300Ah 15kWh LifePO4 Lithium Battery YILINK iPower

iPower is specially tailored for energy storage system, it offers a greater efficiency, higher reliability, intelligent battery management system, intelligent battery monitoring system, long lifespan to your solar system.

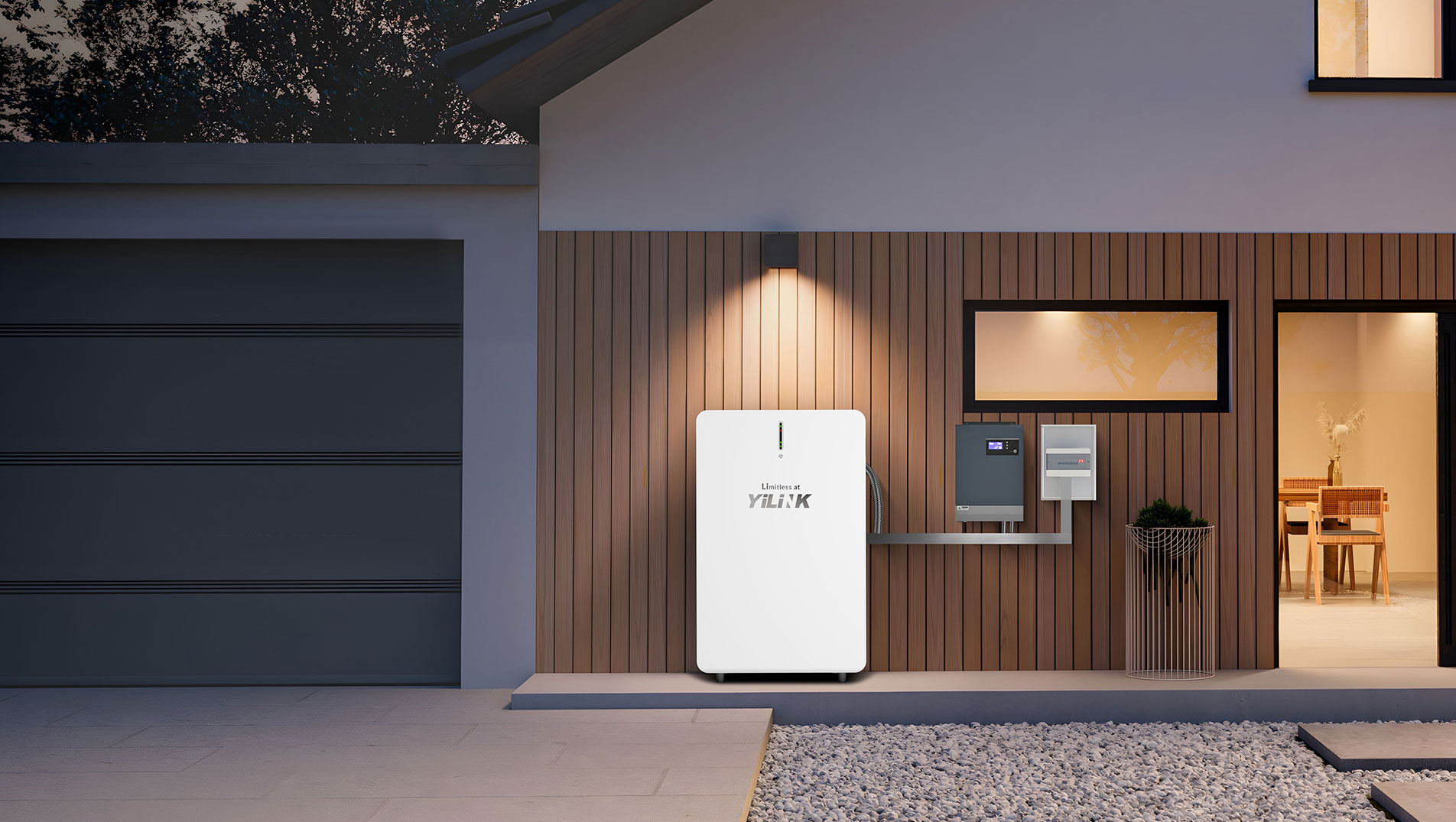

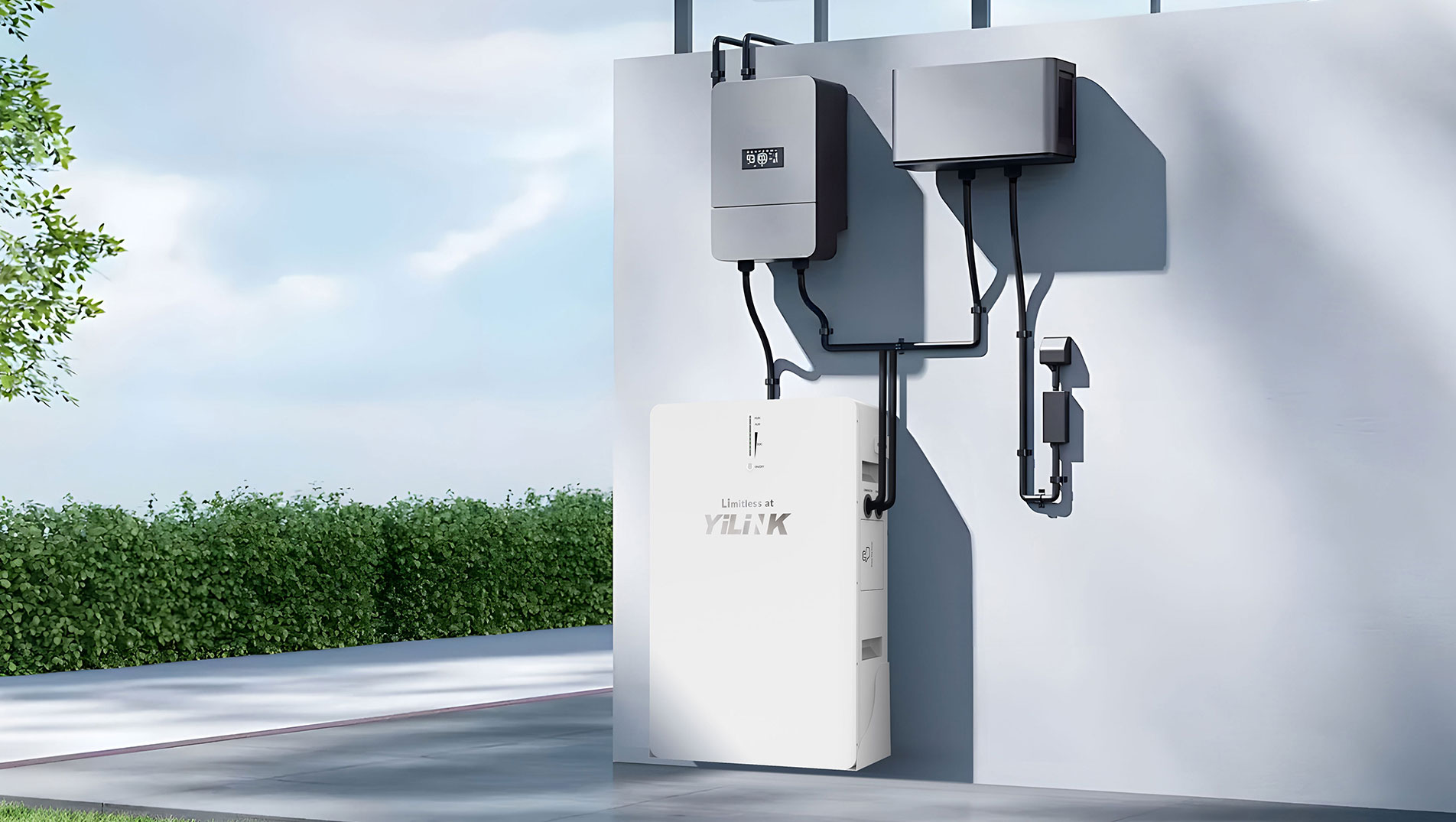

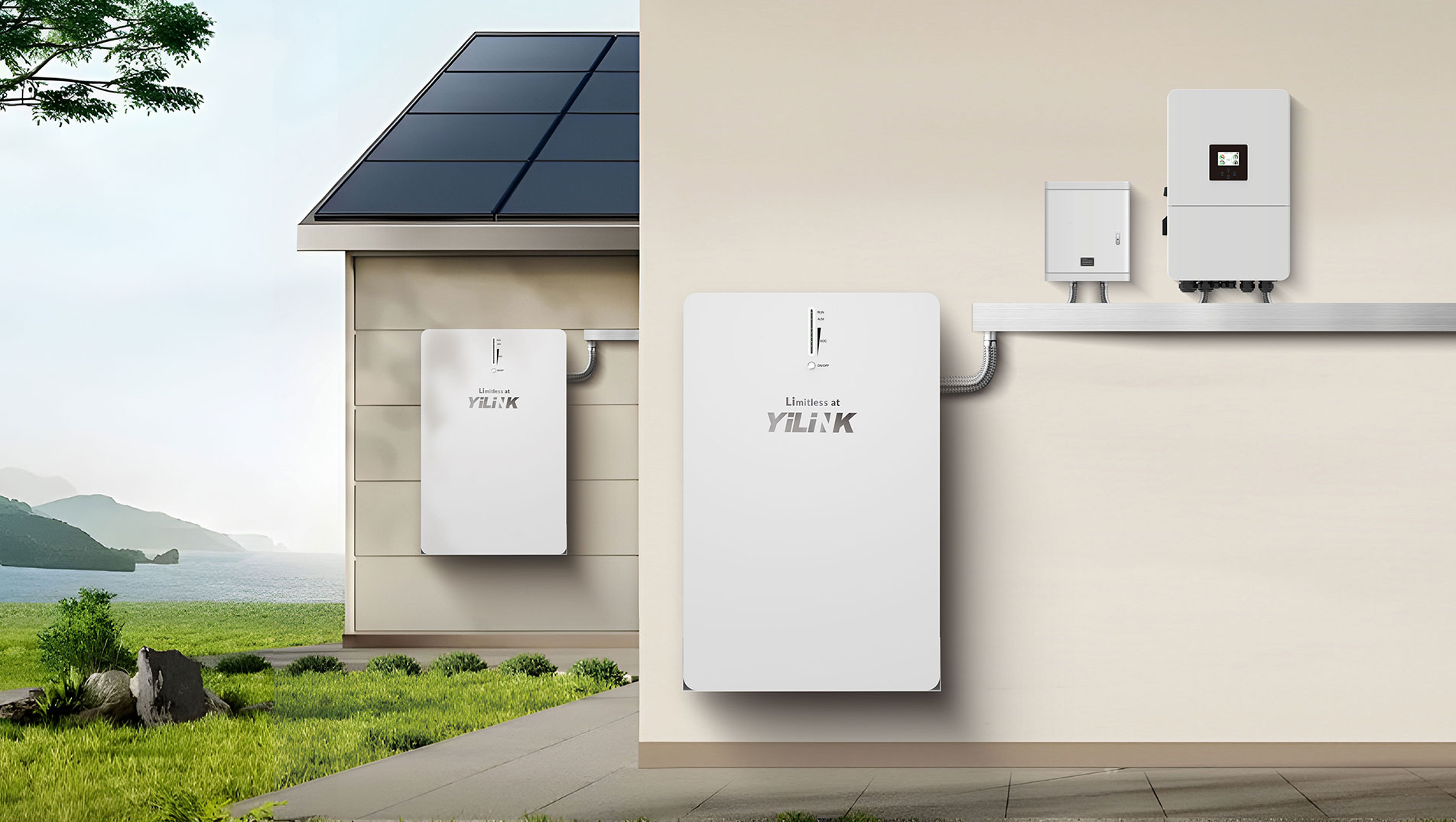

iPower LifePO4 batteries are ideal for off-grid and hybriId applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, commercial, farm, factory, data room, holiday hotel, etc.

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	YL-WS48300-100	YL-WS48300-150	YL-WS48300-200
Battery Type	LiFePO4
Nominal Voltage	48V
Nominal Capacity	300Ah
Nominal Energy	14.4kWh
Max. Output Power(kW)	4.8	7.2	9.6
Recommended Charge Current(A)	60
Max. Continuous Charge Current(A)	100	150	200
Max. Continuous Discharge Current(A)	100	150	200
Net Weight(kg)	130kg
Dimension(mm)WDH	580900230
Installation Way	Indoor Wall Mount or Floor installation
IP Rating	IP31
Battery Level	Brand New Premium Grade A Battery Cells
BMS Leve	High Precision Intelligent BMS
Alarm and Protection	Multiple Protections from Battery Cells to Battery Pack
Operating Voltag	37.50~54.75V
Operating Temperature Charging	0~55°C
Operating Temperature Discharging	-20~60°C
Months Self Discharge	≤2%，@25℃
Efficiency Of Charge &Discharge	≥99.5%，@0.2C
Communication	Support up to 15PCS in Parallel
Cycle Life	More than 6,000 Times*
Communication	CAN/RS485/RS232/Dry Contact
Communication	Deye, Growatt, Sol-Ark, SunSynk, Victron, Voltronic, GoodweLuxpower, Sofar, SMA, Schneider, Solis, TBB, INVT. etc
Parallel Capability	Support up to 15PCS in Parallel
	Expendable up to 216kWh
Monitoring & Commissioning	PC Terminal or WiFi Module Remote Monitoring (Optional)
Warranty	5 to 10 Years
Certifications & Safety Standards	CE, IEC62619, IEC/EN61000-3, IEC/EN61000-6, ROHS, UL1973, UN38.3, MSDS

*: @0.2C, 80% DoD, 25℃

Upcoming Certification: UL1973 cULus (USA and Canadian Version)

■ Parallel capability up to 15 units, meeting different site energy requirements

■ Excellent inverter communication compatibility: Deye, Growatt, Sol-Ark, SunSynk, Victron, Voltronic, Goodwe, Luxpower, Sofar, SMA, Schneider, Solis, TBB, INVT, etc

■ PC Monitoring and optional WiFi remote monitoring & commissioning

■ Wall-mounted, floor-standing, and rack-mounted installations supported

■ International CLASS 9 dangerous goods packing certifications

■ High energy density with light-weight

■ Full set of matched accessories supported

Powerwall Battery 48V300Ah 15kWh LifePO4 Lithium Battery YILINK iPower

Specification：Powerwall Battery 48V300Ah 15kWh LifePO4 Lithium Battery YILINK iPower.pdf
