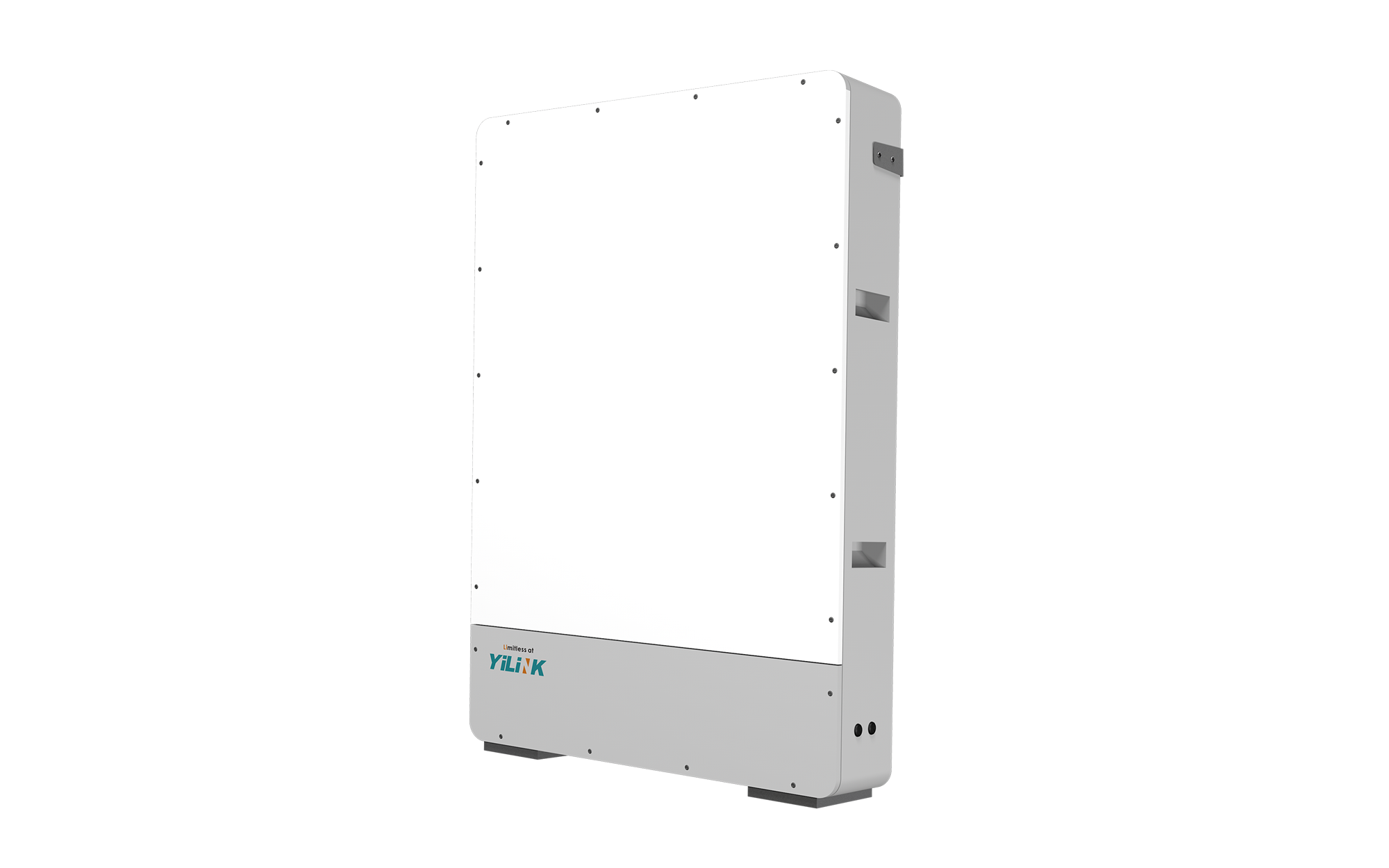

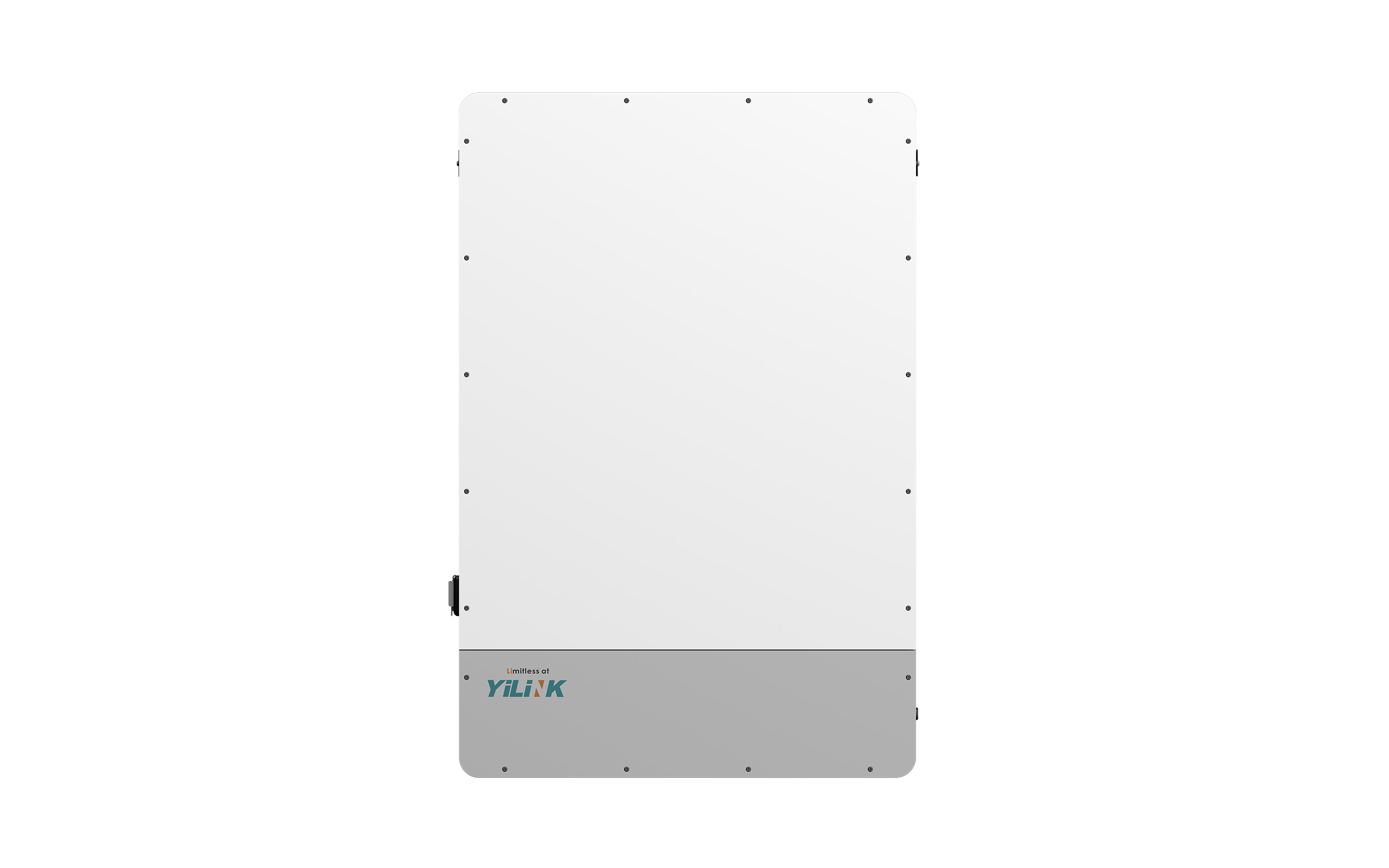

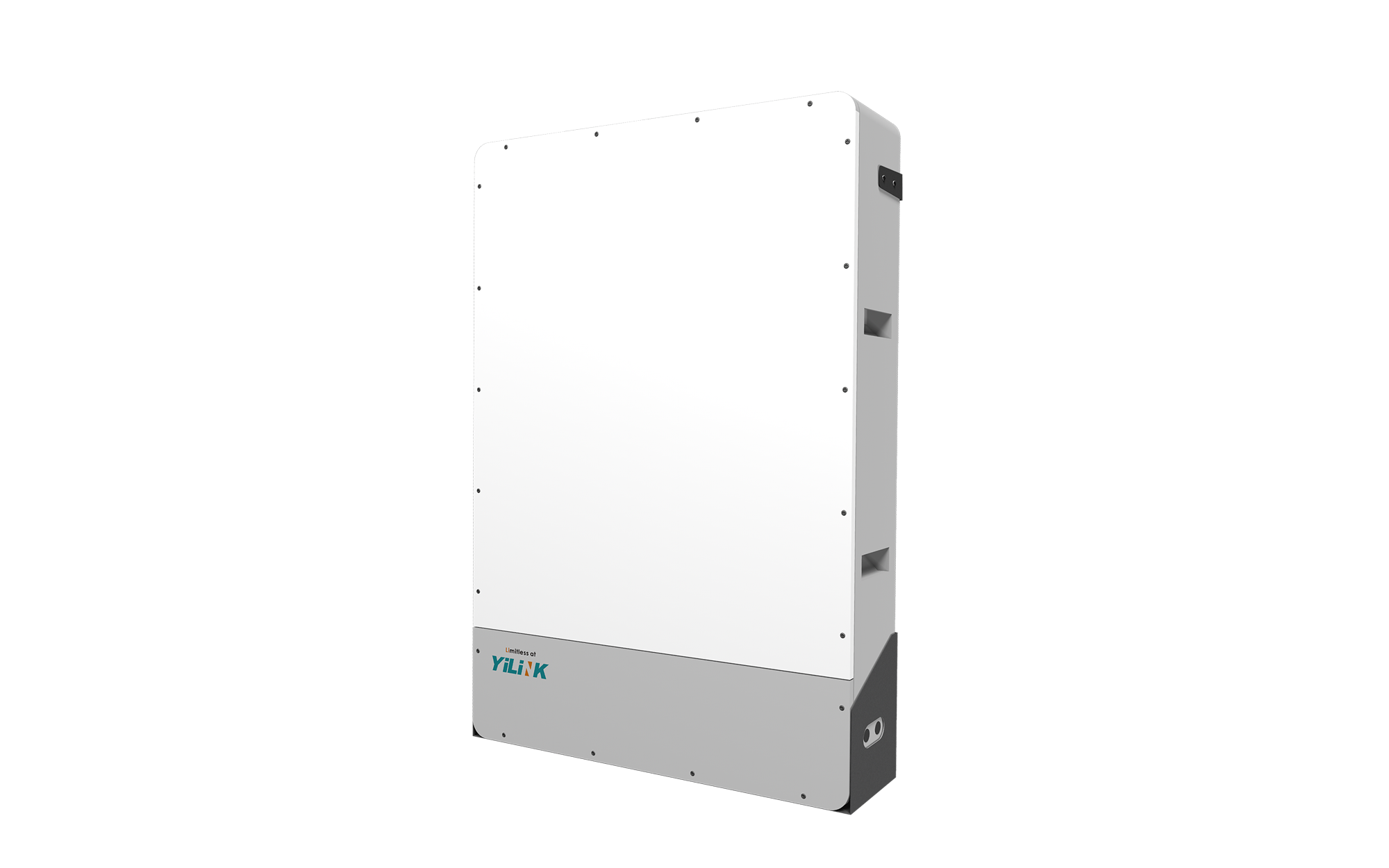

Water-proof Wall Mounted 384VDC Battery LifePO4 Lithium Battery YILINK iPower

iPower is specially tailored for energy storage system, it offers a greater efficiency, higher reliability, intelligent battery management system, intelligent battery monitoring system, long lifespan to your solar system.


iPower LifePO4 batteries are ideal for off-grid and hybriId applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, commercial, farm, factory, data room, holiday hotel, etc.

Application:
Solar System | Residential | Commercial | Off-grid | Hybrid | Microgrid
Certification:
Water-proof Wall Mounted 384VDC Battery  LifePO4 Lithium Battery YILINK iPower

Share it:

  • Specification
  • Features
  • Download
  • Video
ModelYL-HV384025YL-HV384050
Battery TypeLiFePO4
Nominal Voltage(V)384
Nominal Capacity(Ah)2525
Nominal Energy(kWh)9.619.2
Max. Output Power(kW)9.619.2
Recommended Charge Current(A)12.525
Max. Continuous Charge Current(A)2550
Max. Continuous Discharge Current(A)2550
Net Weight(kg)85140
Dimension(mm)W*D*H600*850*200950*1350*200
Installation WayIndoor Wall Mount or Floor installation
IP RatingIP65
Battery LevelBrand New Premium Grade A Battery Cells
BMS LeveHigh Precision Intelligent BMS
Alarm and ProtectionMultiple Protections from Battery Cells to Battery Pack
Operating Voltag(V)300.00~438.00
Operating Temperature Charging0~55°C
Operating Temperature Discharging-20~60°C
Months Self Discharge≤2%,@25℃
Efficiency Of Charge &Discharge≥99.5%,@0.2C
CommunicationSupport up to 15PCS in Parallel
Cycle LifeMore than 6,000 Times*
CommunicationCAN/RS485
CommunicationGrowatt, Solis, Deye, Sol-Ark, SunSynk, Goodwe, Sofar, SMA, Megarevo, Afore, etc
Parallel CapabilitySupport up to 7PCS in Parallel
Expendable up to 144kWhExpendable up to 288kWh
Monitoring & CommissioningPC Terminal or WiFi Module Remote Monitoring (Optional)
Warranty

5 to 10 Years

Certifications & Safety Standards

CE, IEC62619, IEC/EN61000-3, IEC/EN61000-6, ROHS, UL1973, UN38.3, MSDS

*: @0.2C, 80% DoD, 25℃

Upcoming Certification: UL1973 cULus (USA and Canadian Version)


■   10kWh to 288kWh expendable

■   Excellent inverter communication compatibility: Growatt, Solis, Deye, Sol-Ark, SunSynk, Goodwe, Sofar, SMA, Megarevo, Afore, etc

■   PC Monitoring and optional WiFi remote monitoring & commissioning

■   Wall-mounted, Floor-standing

■   High energy density with light-weight

■   Full set of matched accessories supported
