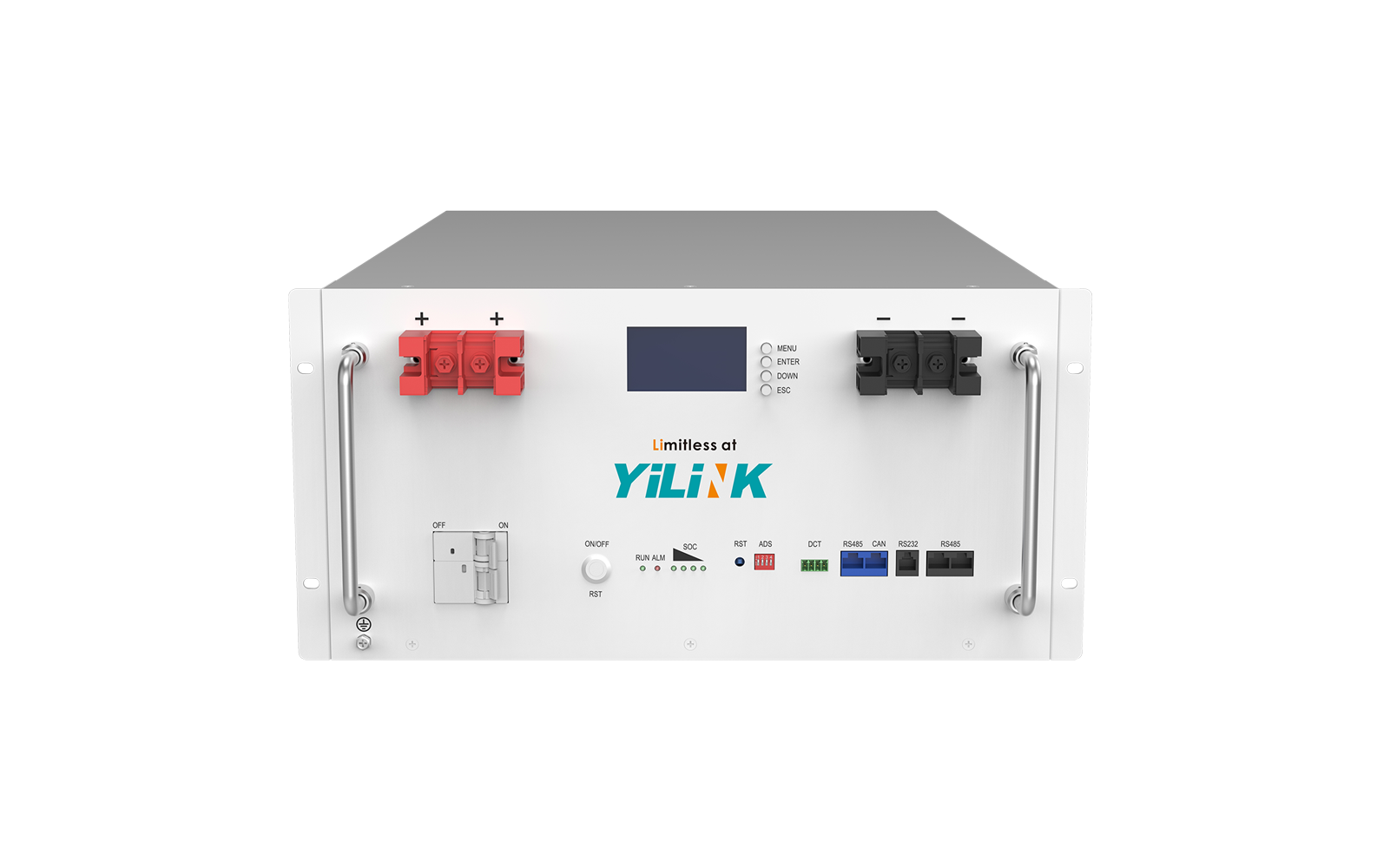

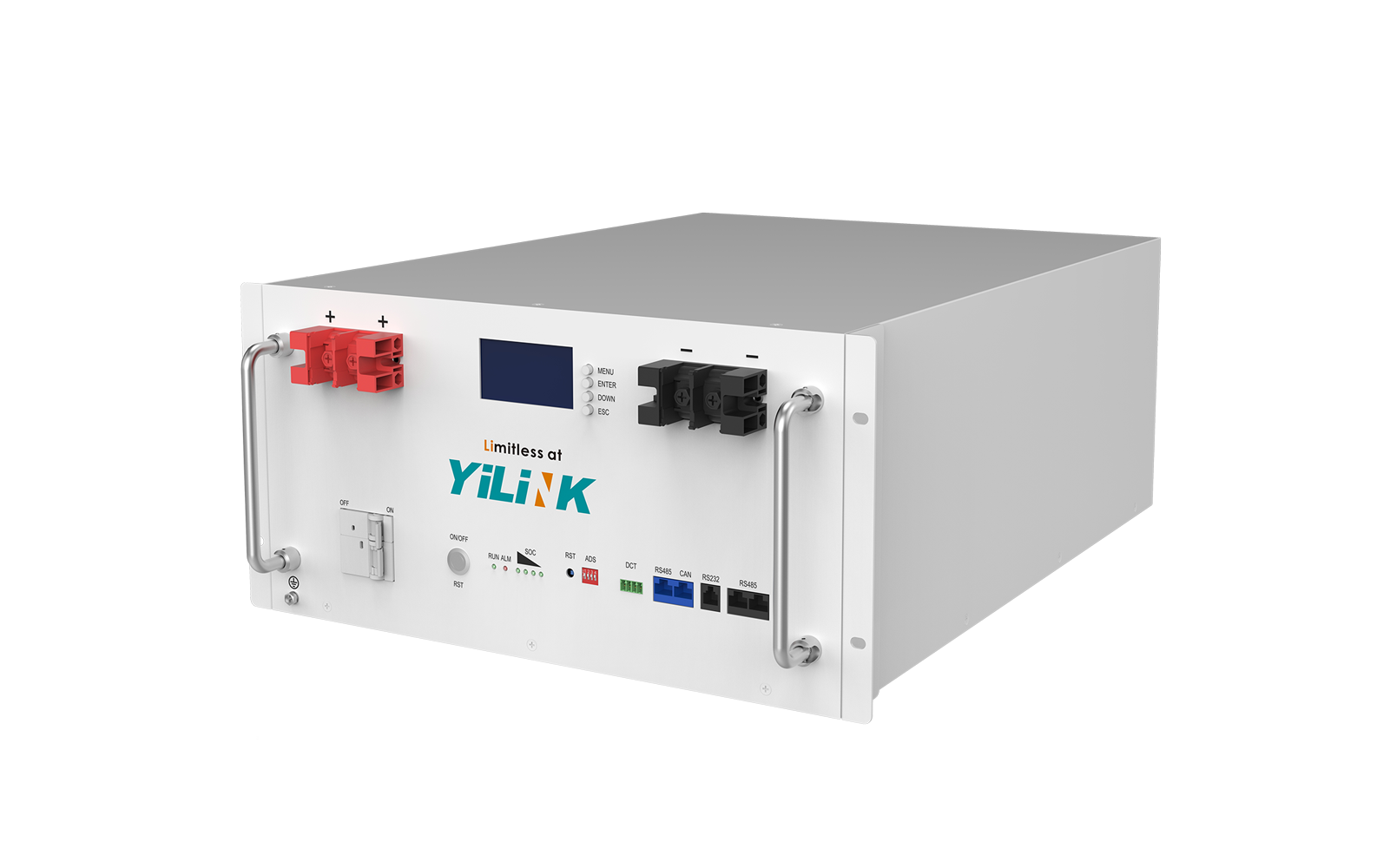

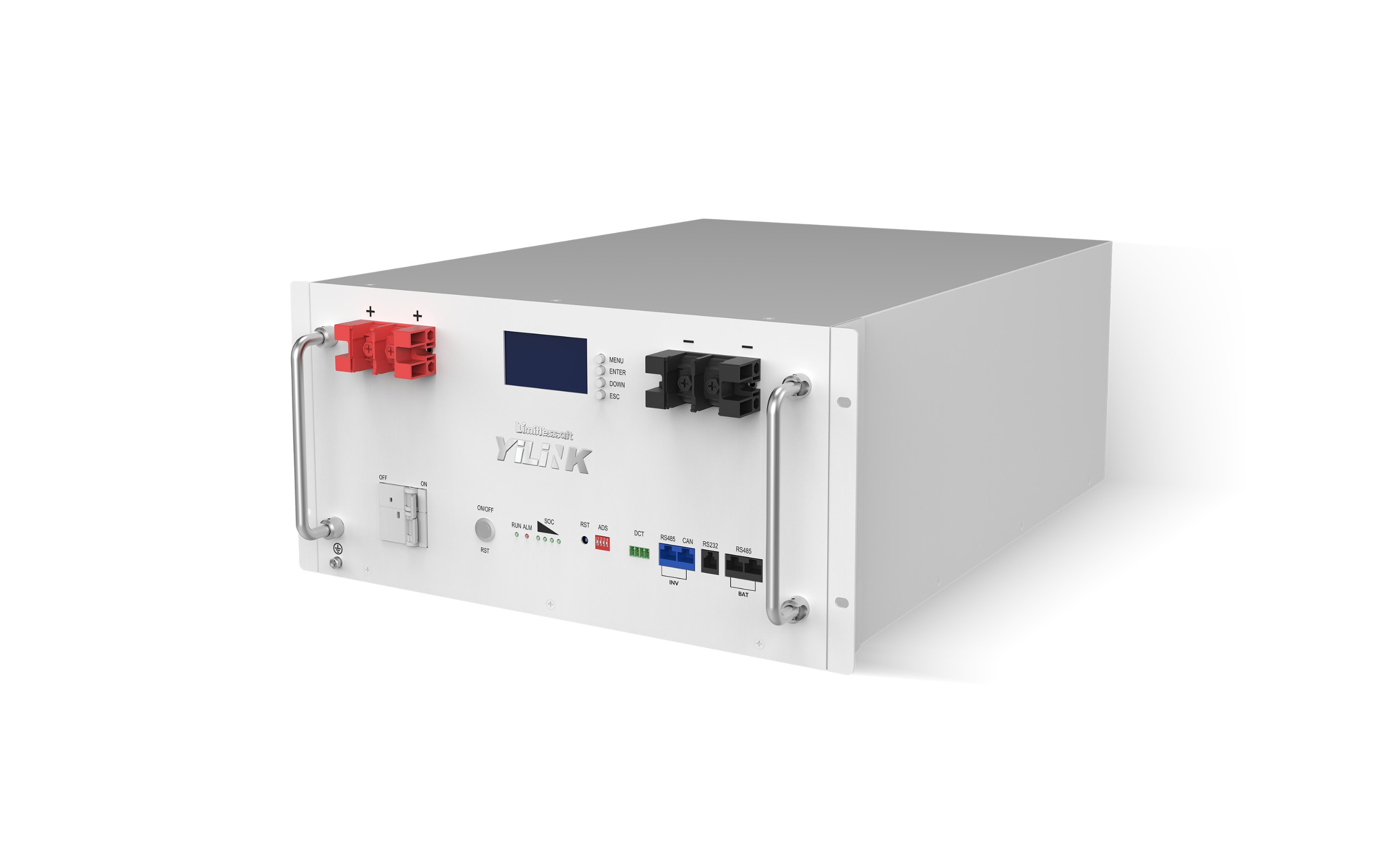

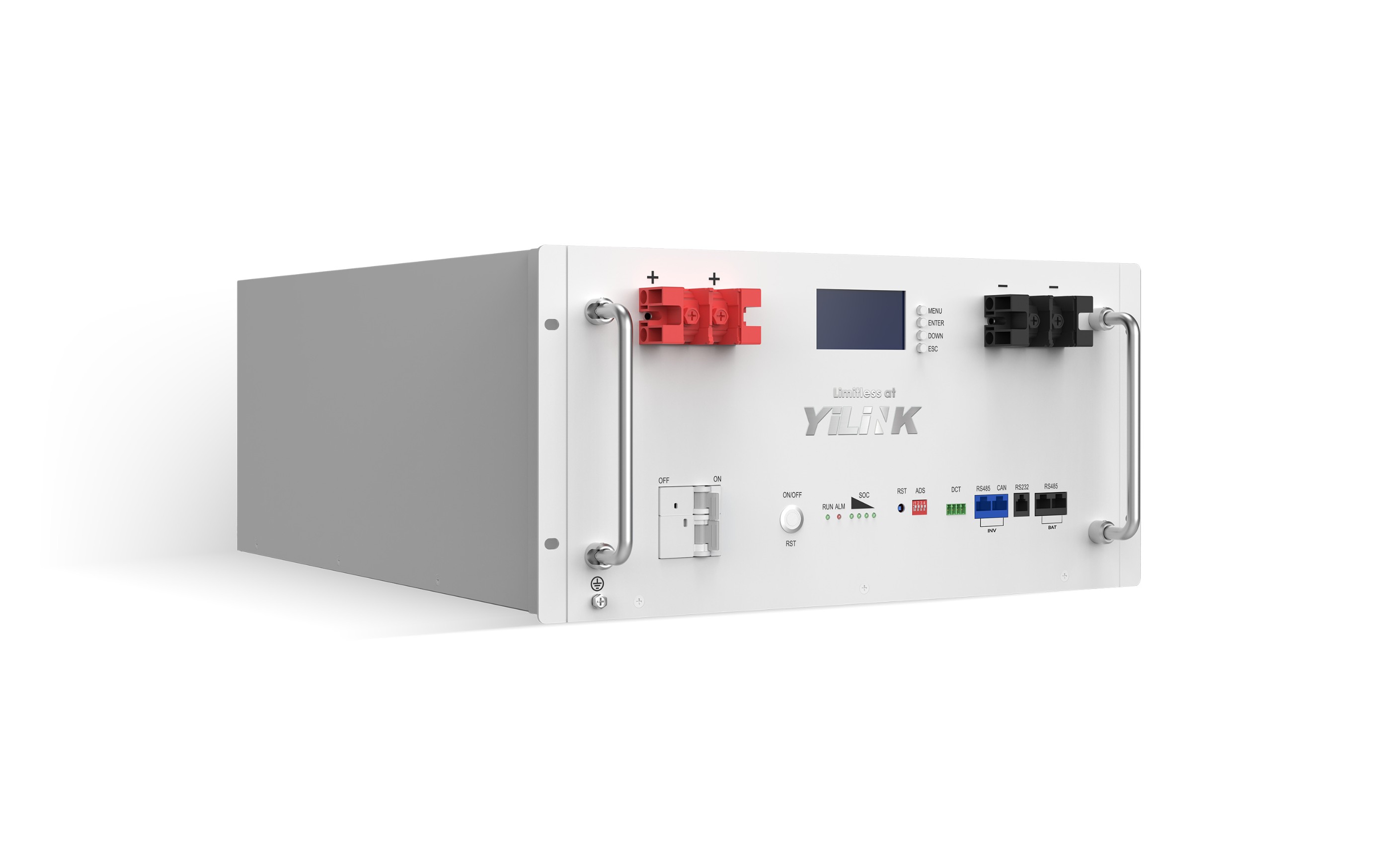

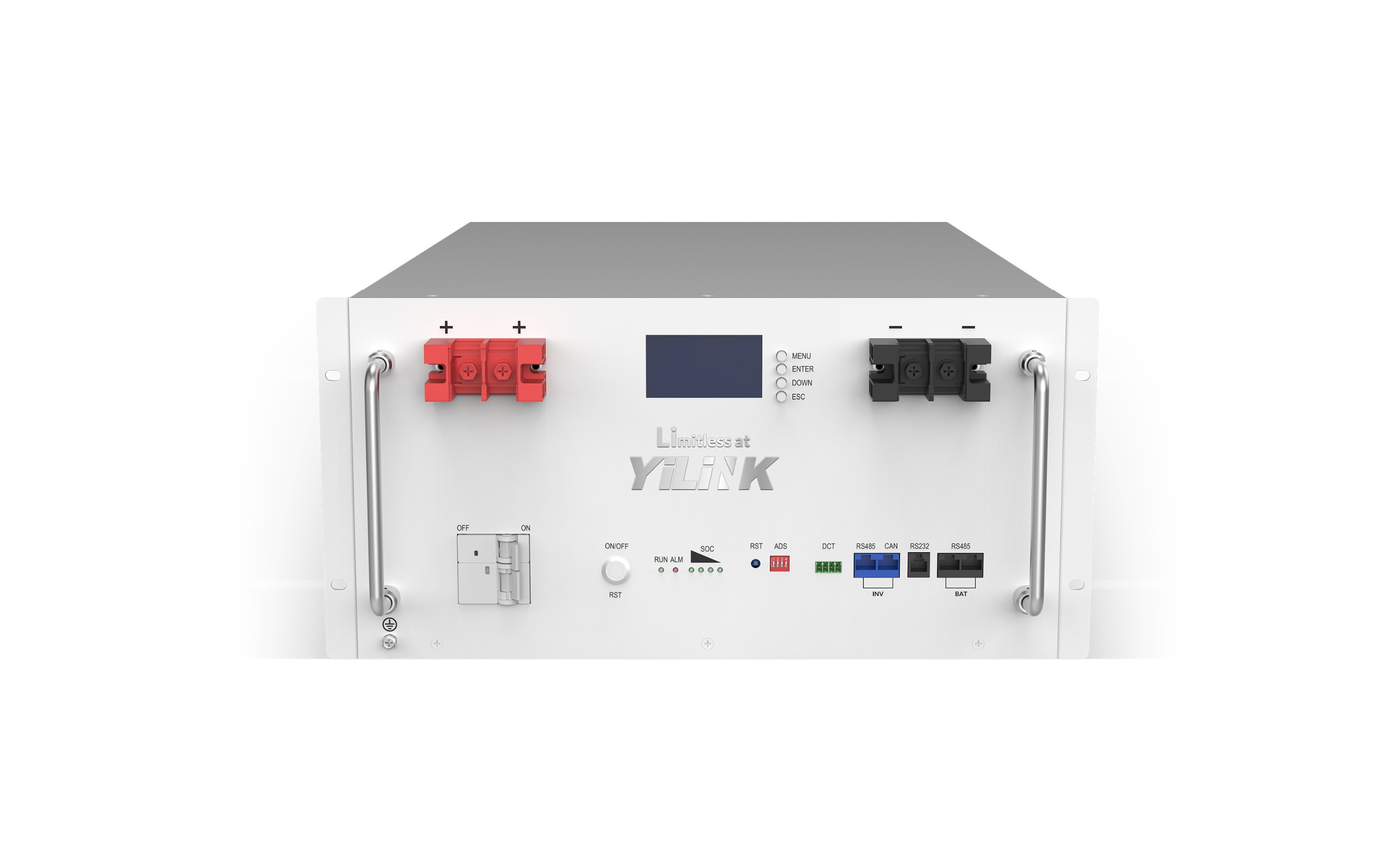

Rack Mounted 48V200Ah 9.6Kwh LifePO4 Lithium Battery YILINK iPower

iPower is specially tailored for energy storage system, it offers a greater efficiency, higher reliability, intelligent battery management system, intelligent battery monitoring system, long lifespan to your solar system.

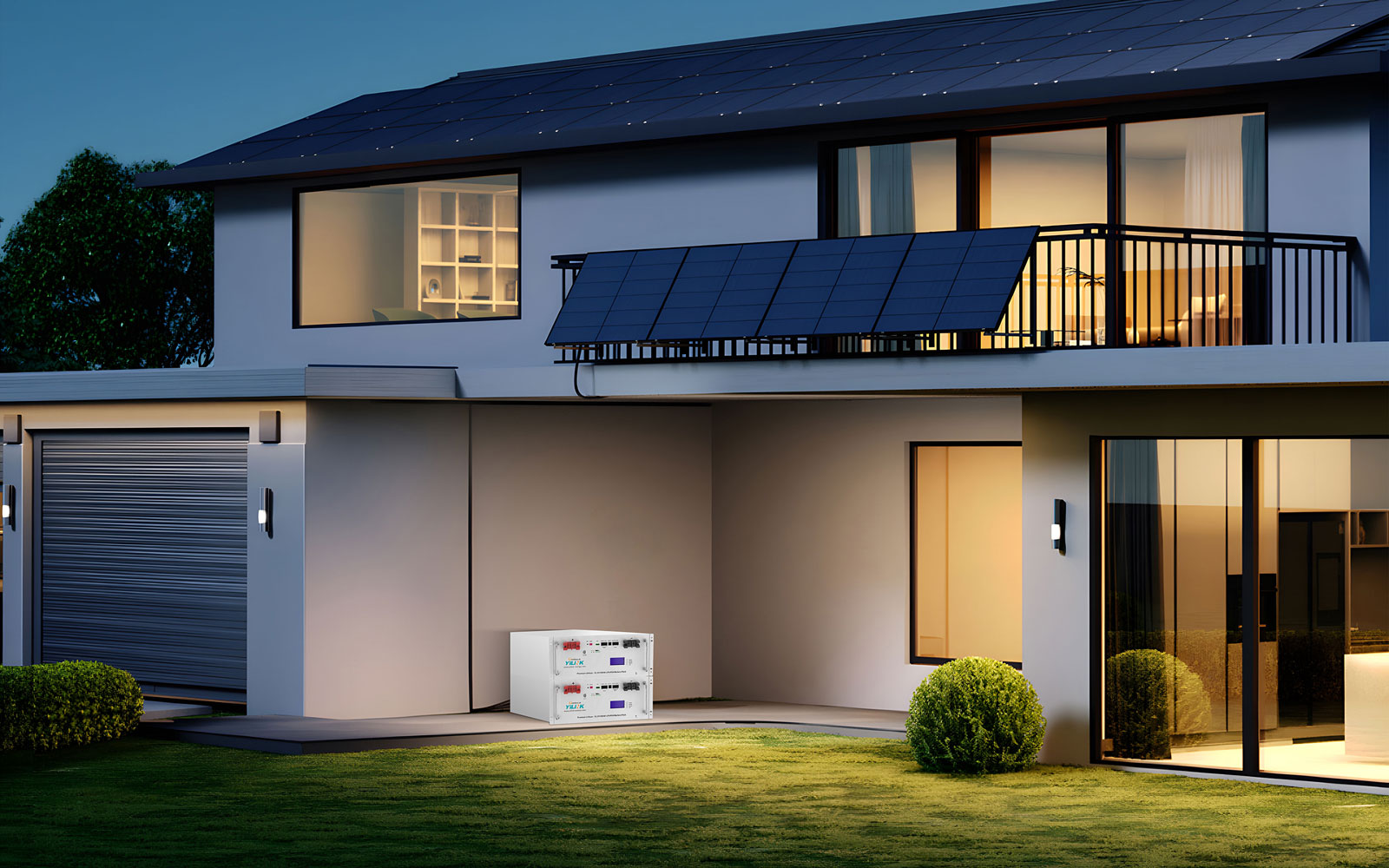

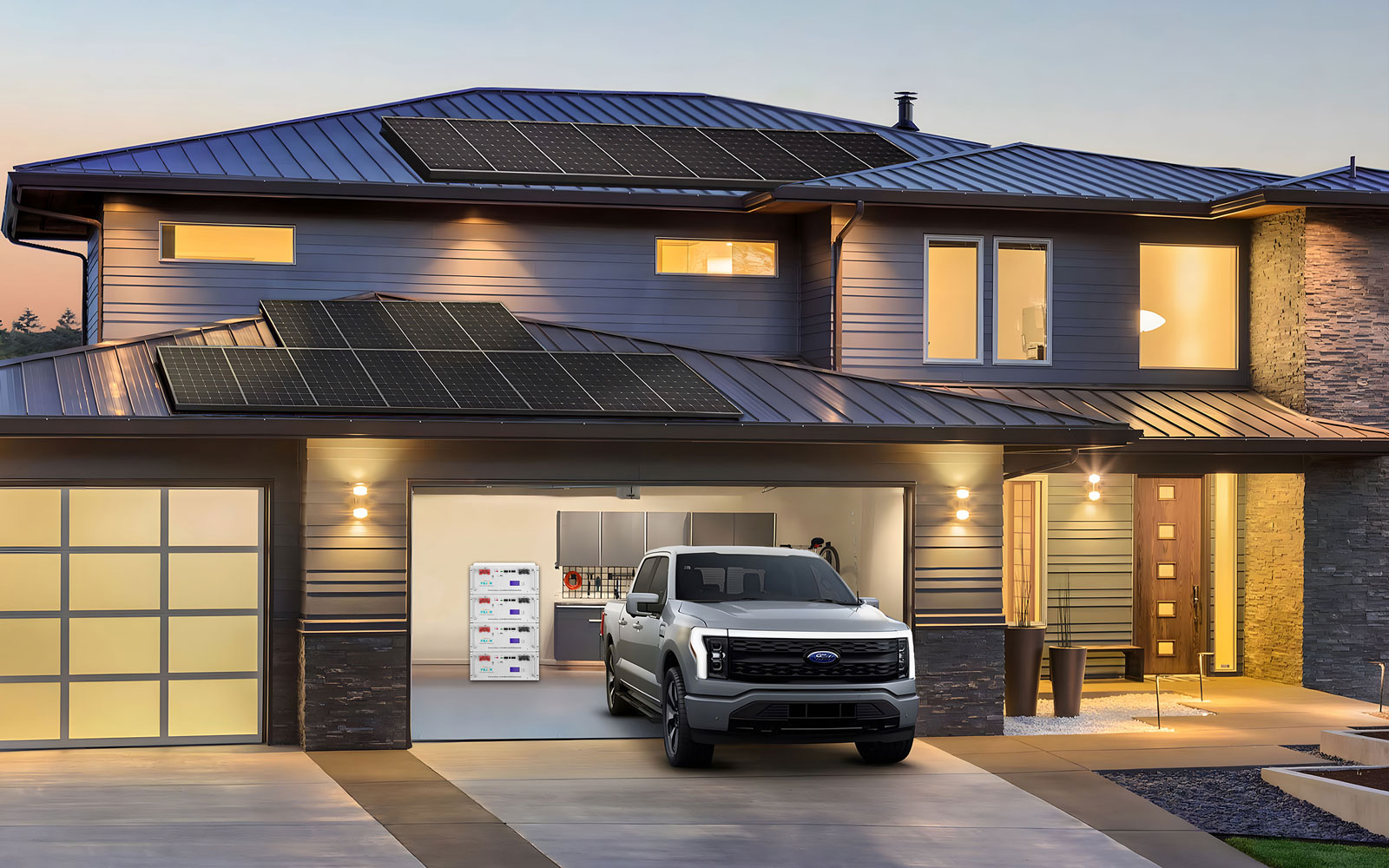

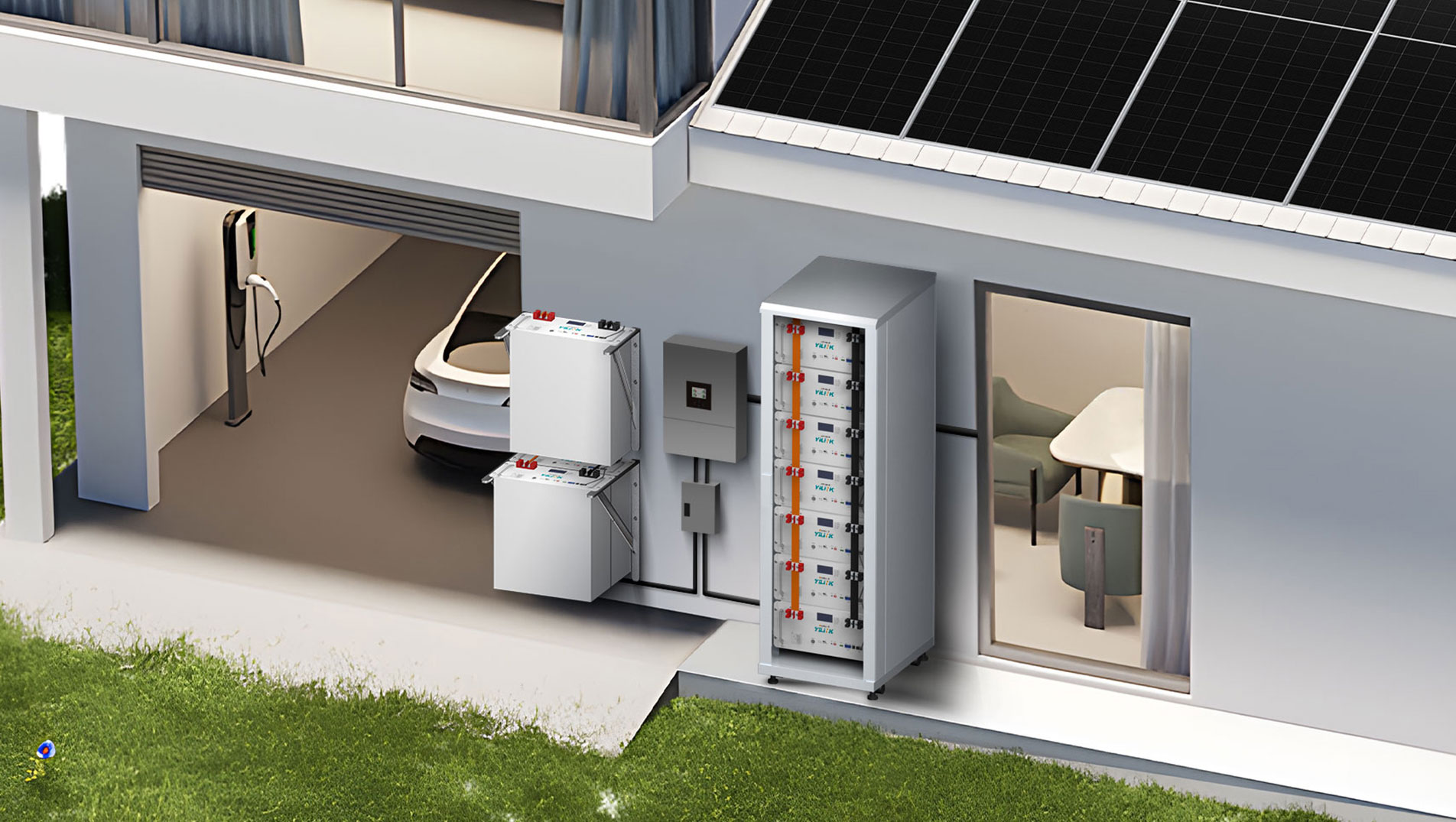

iPower LifePO4 batteries are ideal for off-grid and hybrid applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, commercial, farm, factory, data room, holiday hotel, etc.

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	YL-S24100	YL-S24200	YL-S4850	YL-S48100	YL-S48150	YL-S48200
Battery Type	LiFePO4
Nominal Voltage	25.6V		48V
Nominal Capacity(Ah)	100	200	50	100	150	200
Nominal Energy(kWh)	2.56	5.12	2.4	4.8	7.2	9.6
Max. Output Power(kW)	2.56	2.56	2.4	4.8	4.8	4.8
Recommended Charge Current(A)	20	40	10	20	30	40
Max. Continuous Charge Current(A)	100	100	50	100	100	100
Max. Continuous Discharge Current(A)	100	100	50	100	100	100
Net Weight(kg)	25	48	25	45	60	74
Dimension(mm)WDH	442280177	442340230	442480132	442450177	442450195	442450230
Installation Way	Indoor 19 Inch Rack Mount or Stackable
IP Rating	IP31
Battery Level	Brand New Premium Grade A Battery Cells
BMS Leve	High Precision Panasonic Intelligent BMS
Alarm and Protection	Multiple Protections from Battery Cells to Battery Pack
Operating Voltag	20.00~29.20V		37.50~54.75V
Operating Temperature Charging	0~55°C
Operating Temperature Discharging	-20~60°C
Months Self Discharge	≤2%，@25℃
Efficiency Of Charge &Discharge	≥99.5%，@0.2C
Communication	Support up to 15PCS in Parallel
Cycle Life	More than 6,000 Times*
Communication	CAN/RS485/RS232/Dry Contact
Communication	Deye, Growatt, Sol-Ark, SunSynk, Victron, Voltronic, Goodwe, Luxpower, Sofar, SMA, Schneider, Solis, TBB, INVT, etc
Parallel Capability	Support up to 15PCS in Parallel
Parallel Capability	Expendable up to 38.4kWh	Expendable up to 76.8kWh	Expendable up to 36kWh	Expendable up to 72kWh	Expendable up to 108kWh	Expendable up to 144kWh
Monitoring & Commissioning	PC Terminal or WiFi Module Remote Monitoring (Optional)
Warranty	5 to 10 Years
Certifications & Safety Standards	CE, IEC62619, IEC/EN61000-3, IEC/EN61000-6, ROHS, UL1973, UN38.3, MSDS

*: @0.2C, 80% DoD, 25℃

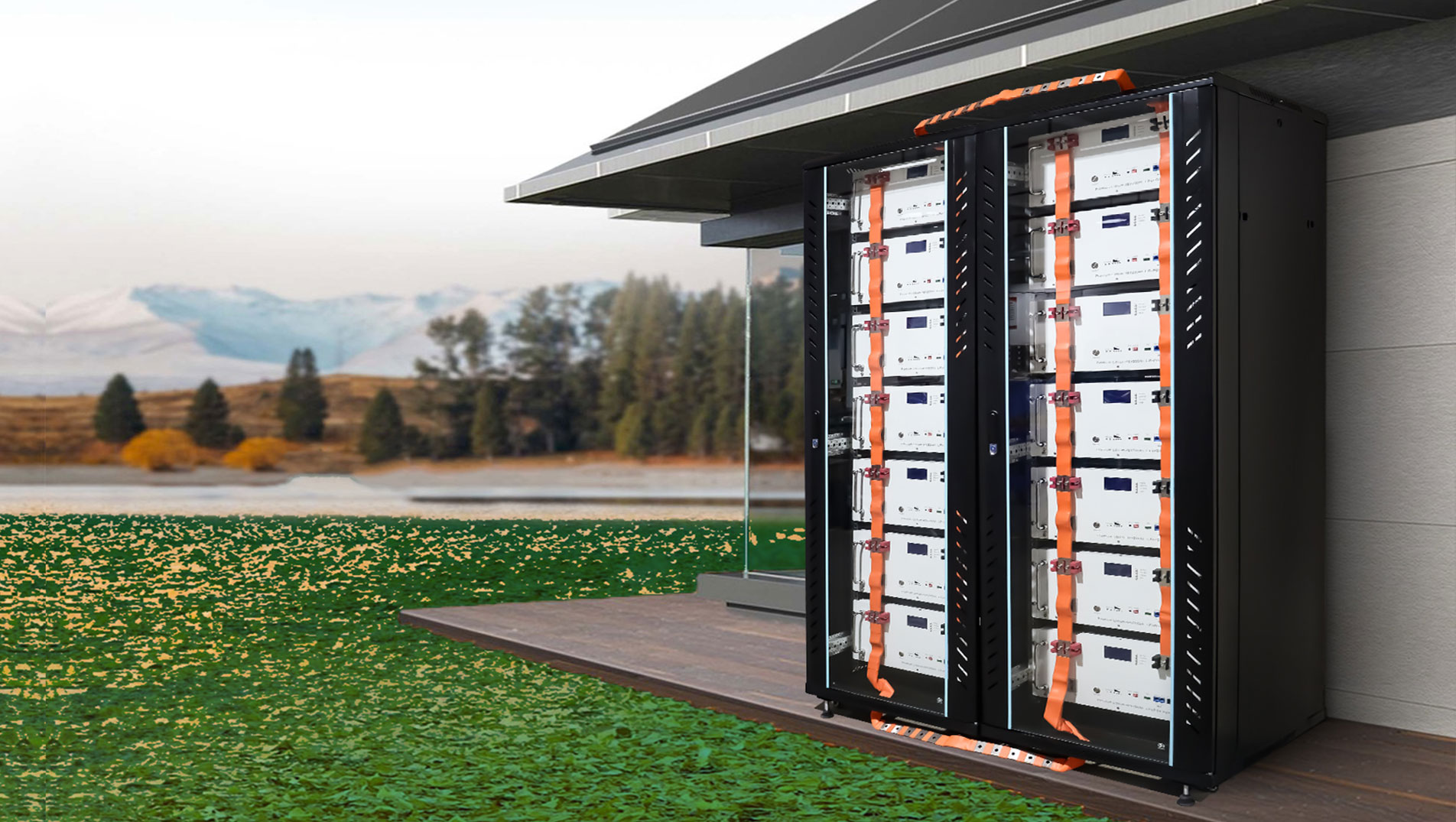

■ Parallel capability up to 15 units, meeting different site energy requirements

■ Excellent inverter communication compatibility: Deye, Growatt, Sol-Ark, SunSynk, Victron, Voltronic, Goodwe, Luxpower, Sofar, SMA, Schneider, Solis, TBB, INVT, etc

■ PC Monitoring and optional WiFi remote monitoring & commissioning

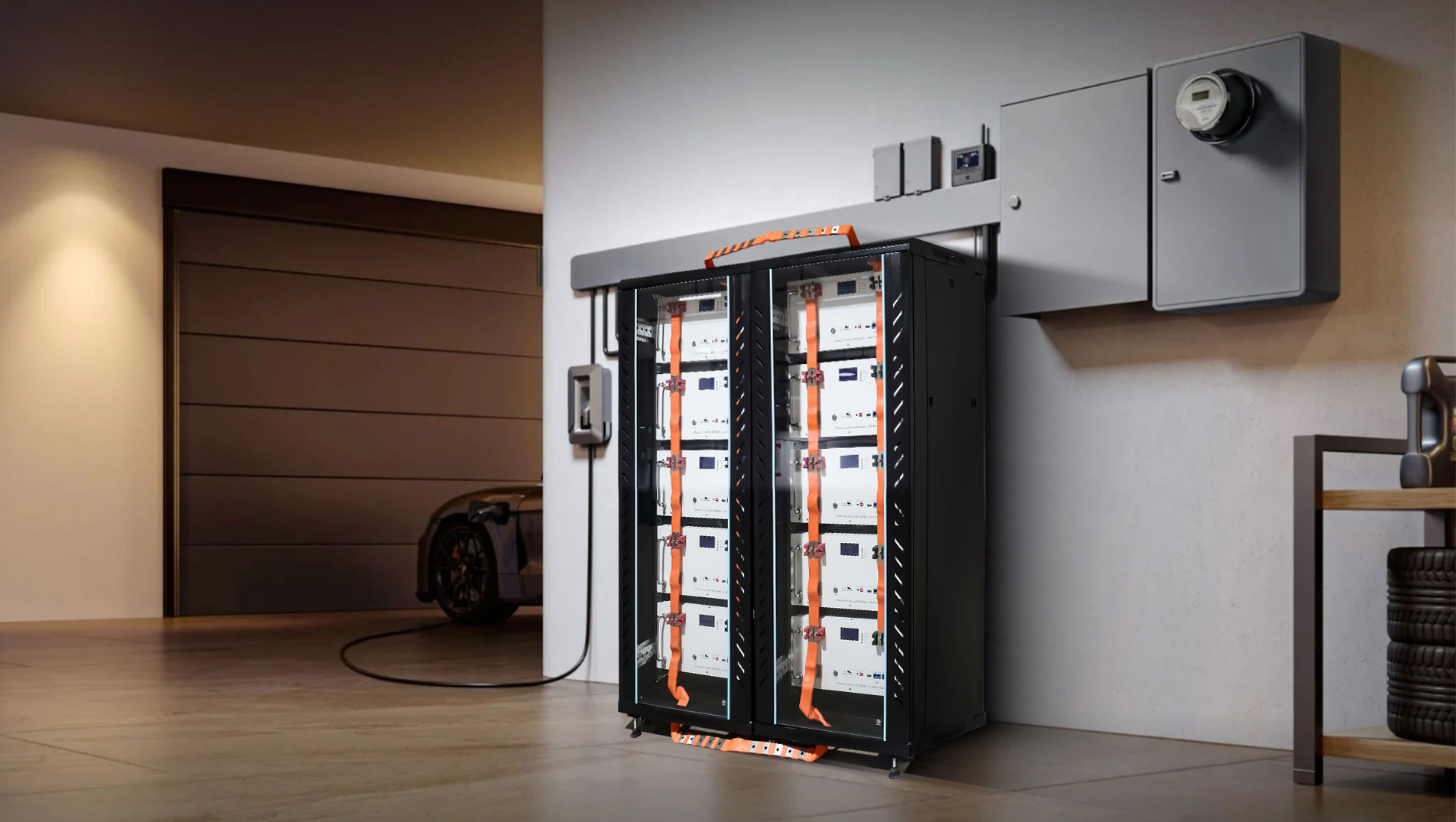

■ Wall-mounted, floor-standing, and rack-mounted installations supported

■ International CLASS 9 dangerous goods packing certifications

■ High energy density with light-weight

■ Full set of matched accessories supported

Rack Mounted 48V200Ah 9.6Kwh LifePO4 Lithium Battery YILINK iPower

Specification：Rack Mounted 48V200Ah 9.6Kwh LifePO4 Lithium Battery YILINK iPower.pdf
