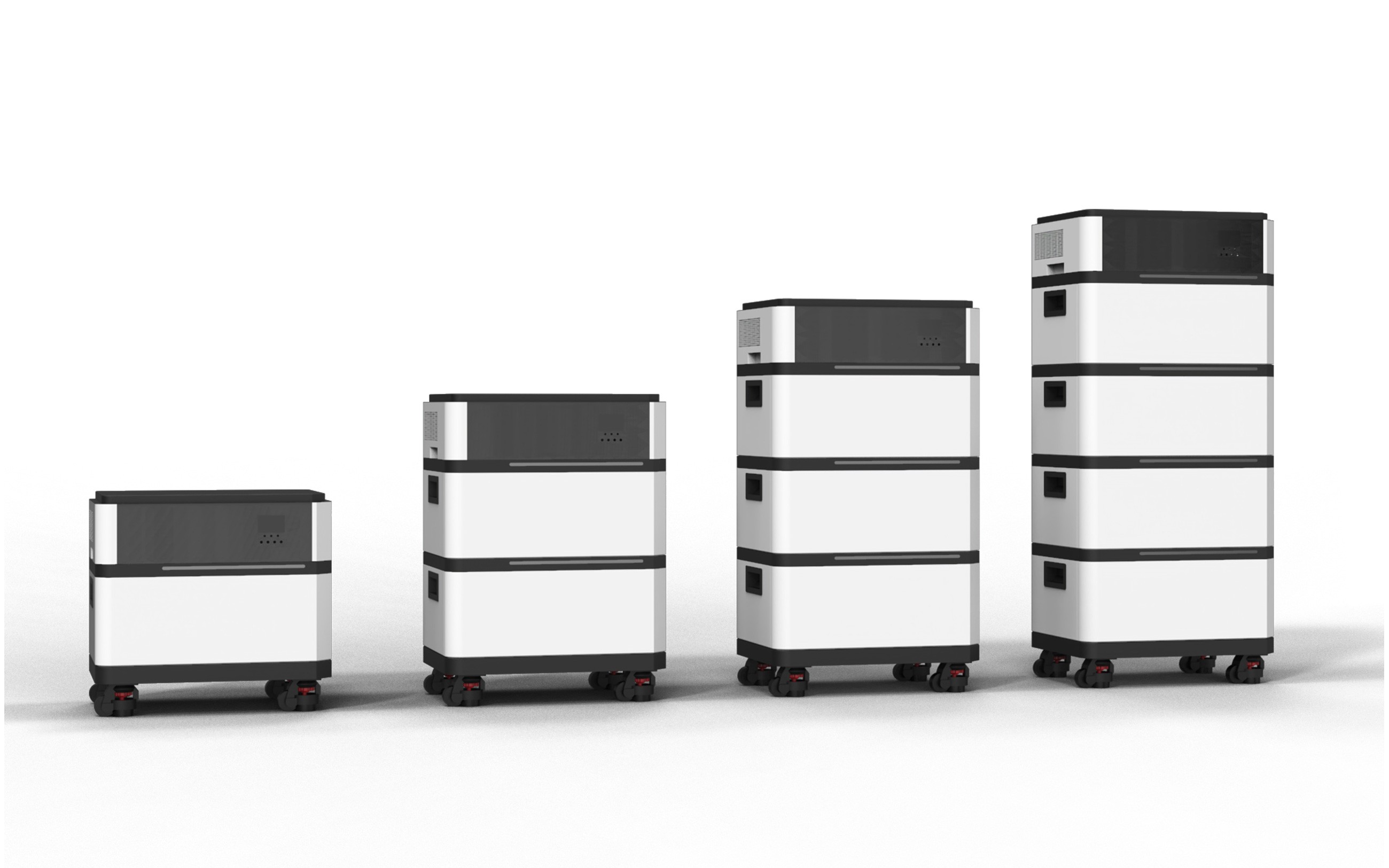

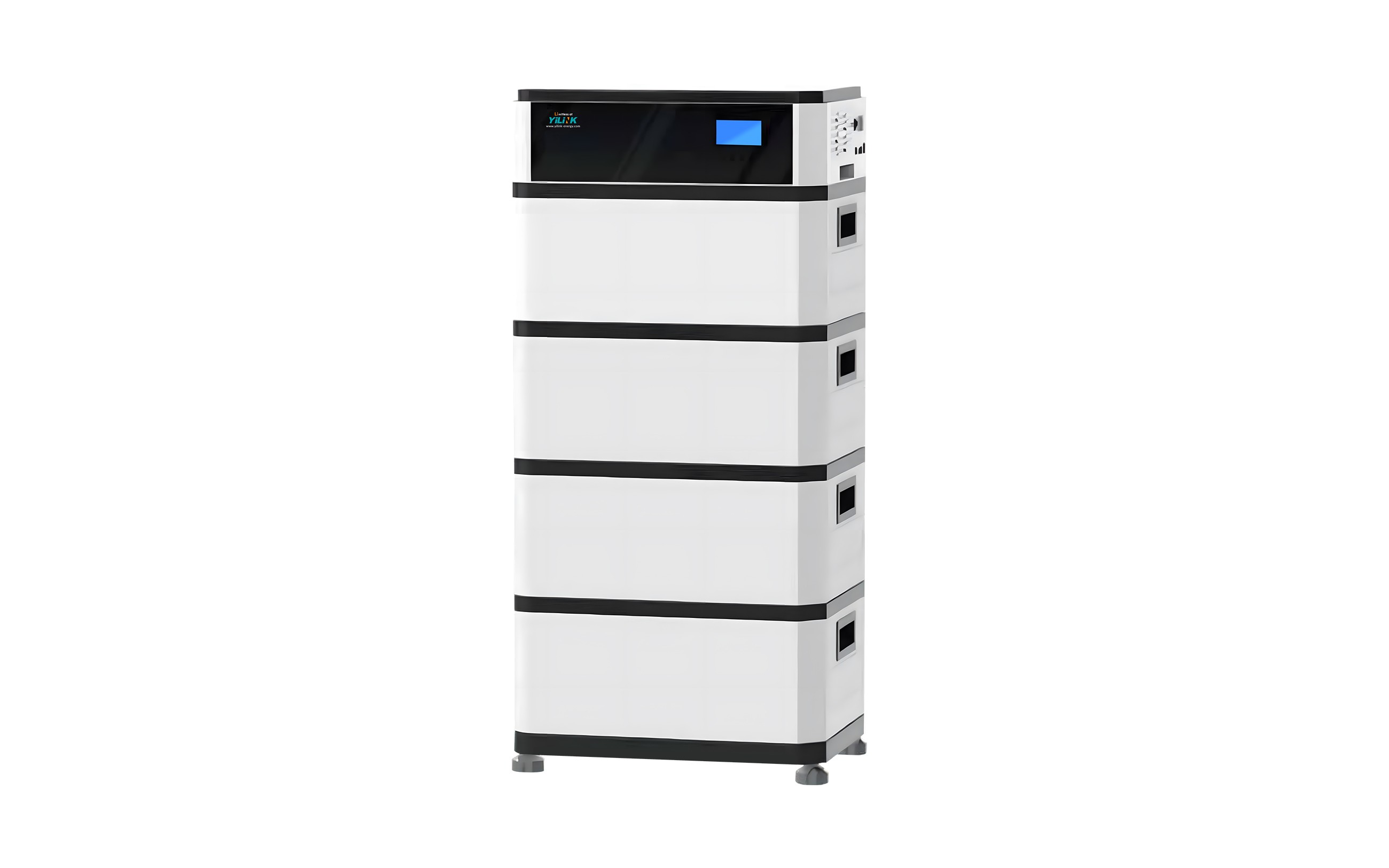

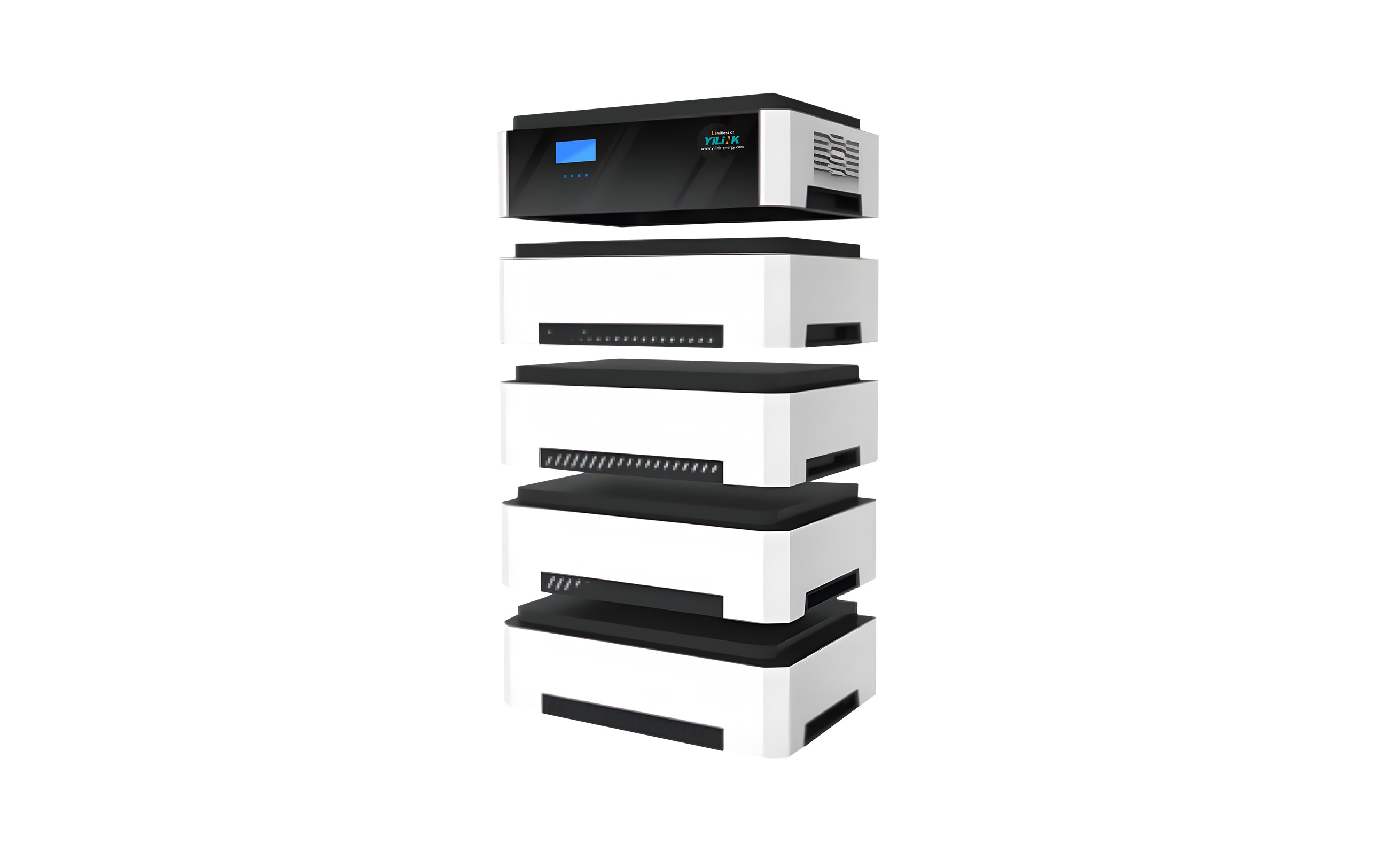

Power Cube Off-grid Home Energy Storage System

iPower is specially tailored for energy storage system, it offers a greater efficiency, higher reliability, intelligent battery management system, intelligent battery monitoring system, long lifespan to your solar system.

iPower LifePO4 batteries are ideal for off-grid and hybriId applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, commercial, farm, factory, data room, holiday hotel, etc.

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	YL5K-100A	YL5K-100B
Battery Type	LiFePO4
Nominal Voltage	51.2V	51.2V
Nominal Capacity	100Ah	100Ah
Operating Voltage Range	40.00~58.40V	25.6
Max. Charge Current	100A	100A
Max. Discharge Current	100A	100A
Max. Stack Quantity	4 PCS
Operating Temperature Range	Charge: 0~60℃℃ & 32~140°F Discharge:-20~60°℃ & -4~140°F
Operating RH	0~95% RH
Operating Altitude	<3000m
Aembly Method	Stack
Net Weight	51kg	51kg
Total Dimension(HWD)	841640449mm	1287560430mm
Num. of MPPT Trackers	1 PC
Max. PV Array Power	5200W
Max. Input Current	18A
Max. Voltage of Open Circuit	500Vdc
MPPT Voltage Range	120~450Vdc
MPPT Tracking Effciency	99.9%
Nominal Output Power	5,000W
Max. Peak Power	10,000W
Nominal Output Voltage	120/230Vac(Split-Phase L+N+PE)
Max. Battery Inverter Effciency	>90%
Load Capacity of Motors	4HP
Nominal AC Frequency	50/60Hz
Waveform	Pure Sine Wave

■ Parallel capability up to 4 units, meeting different site energy requirements

■ Excellent inverter communication compatibility:

■ Deye, Growatt, Sol-Ark, SunSynk, Victron, Voltronic, Goodwe, Luxpower, Sofar, SMA, Schneider, Solis, TBB, INVT, etc

■ PC Monitoring and optional WiFi remote monitoring & commissioning

■ Wall-mounted, floor-standing, and rack-mounted installations supported

■ International CLASS 9 dangerous goods packing certifcations

■ High energy density with light-weight

■ Full set of matched accessories supported
