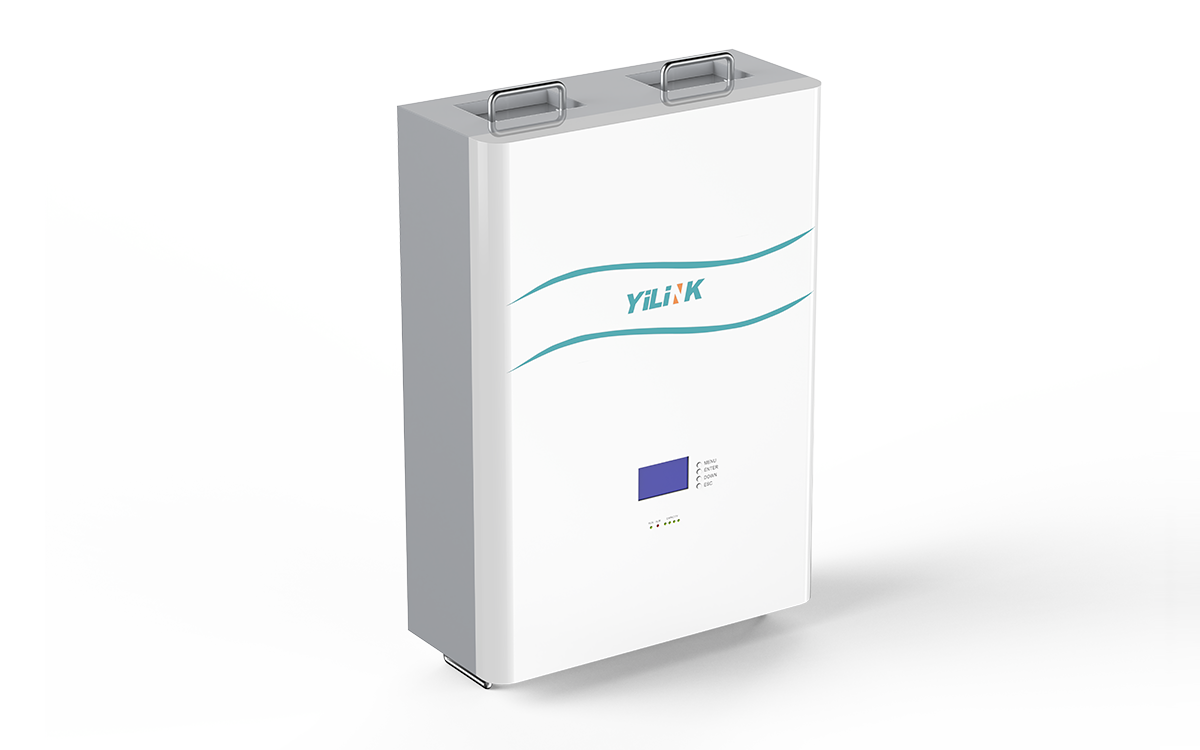

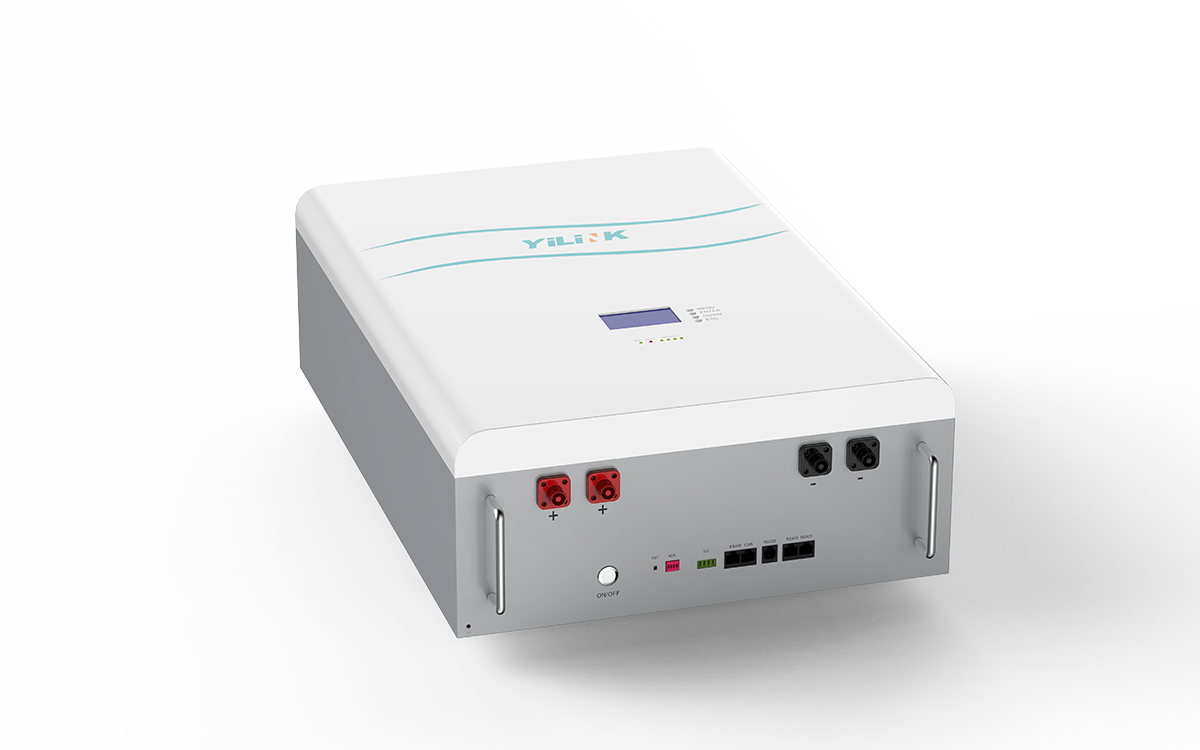

Powerwall 48V100Ah 150Ah 200Ah 4.8Kwh 7.2Kwh 9.6Kwh LifePO4 Lithium Battery

Return

Powerwall 48V100Ah 150Ah 200Ah 4.8Kwh 7.2Kwh 9.6Kwh LifePO4 Lithium Battery

iPower is specially tailored for energy storage system, it offers a greater efficiency, higher reliability, intelligent battery management system, intelligent battery monitoring system, long lifespan to your solar system.

iPower LifePO4 batteries are ideal for off-grid and hybriId applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, commercial, farm, factory, data room, holiday hotel, etc.

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	iPower
Series	H48100	H48150	H48200
Battery Type	LiFePO4
Nominal Voltage(V)	48
Nominal Capacity(Ah)	100	150	200
Nominal Energy(kWh)	4.8	7.2	9.6
Max. Output Power(kW)	4.8	4.8	4.8
Net Weight(Kg)	58	77	93
Dimension(mm)WDH	480520188	670620155	570630188
Working Voltage(V)	40~54
Operating Temperature Charging(℃)	0~55
Operating Temperature Discharging(℃)	-20~60
Max. Charge Current(A)	100
Max. Discharge Current(A)	100
Recommend Charge Current(A)	20	30	40
Months Self Discharge	≤2%，@35℃
Efficiency Of Charge &Discharge	≥99.5%，@0.2C
Communication	CAN/RS485/RS232/Dry Contact
Cycle Life	≥6000，@0.2C，35℃
Certification & Safety Standard	IEC62619/UN38.3/MSDS/CE
Compatible Inverters	Goodwe/Growatt/Victron/Voltronic/Deye/Sofar/Luxpower More brands in testing
