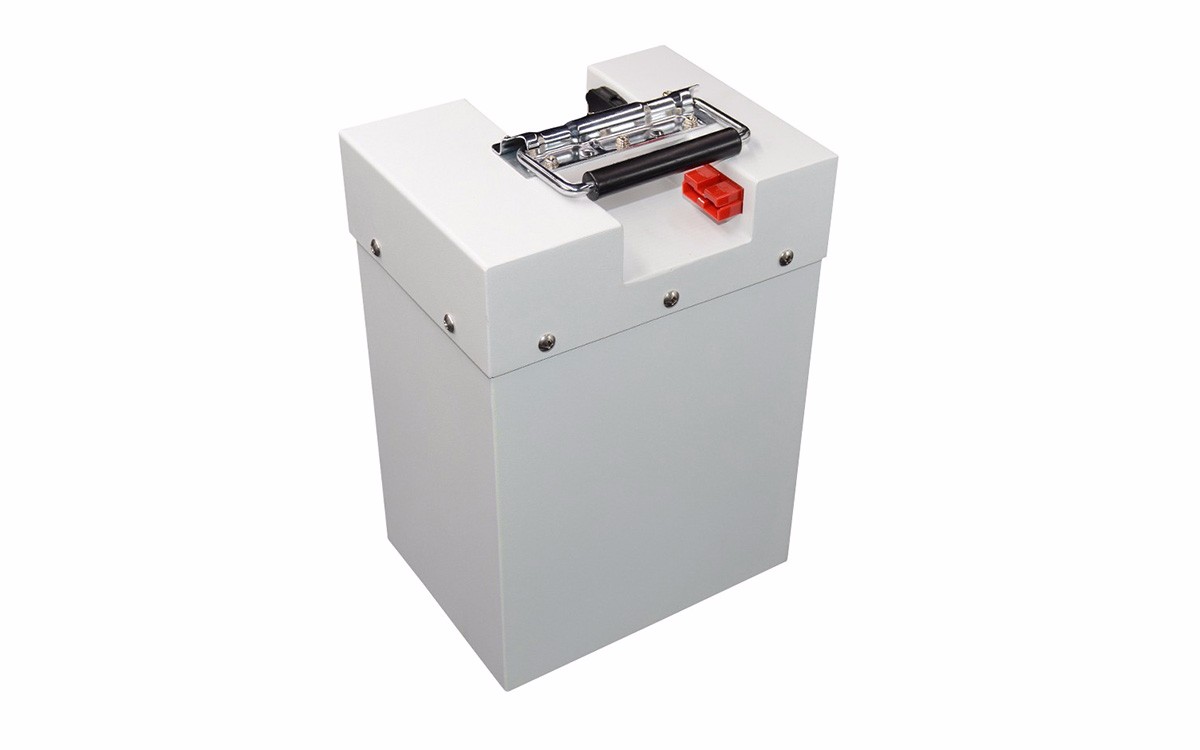

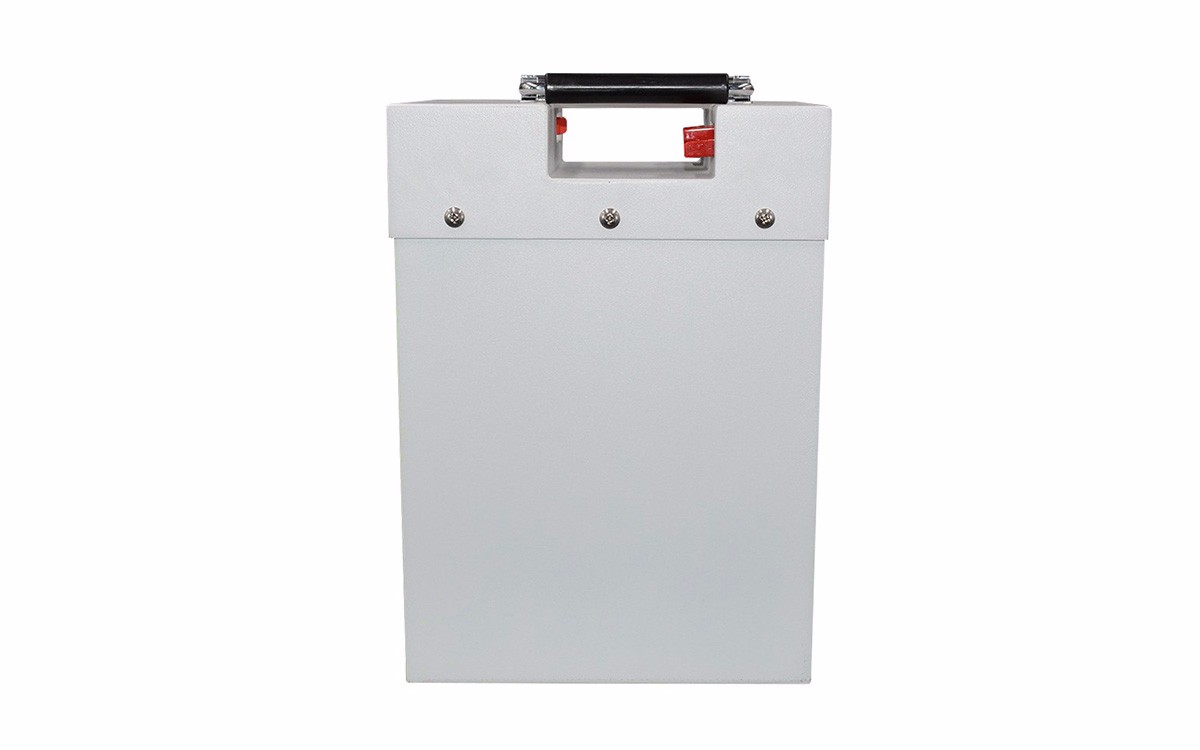

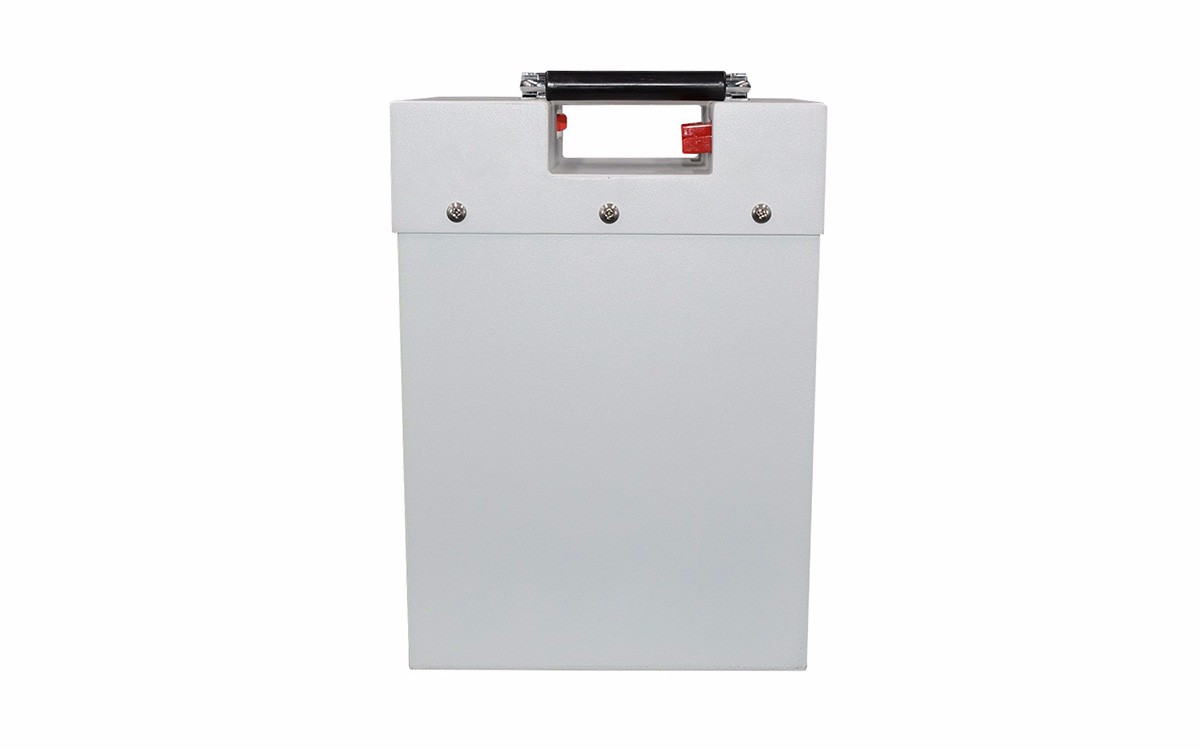

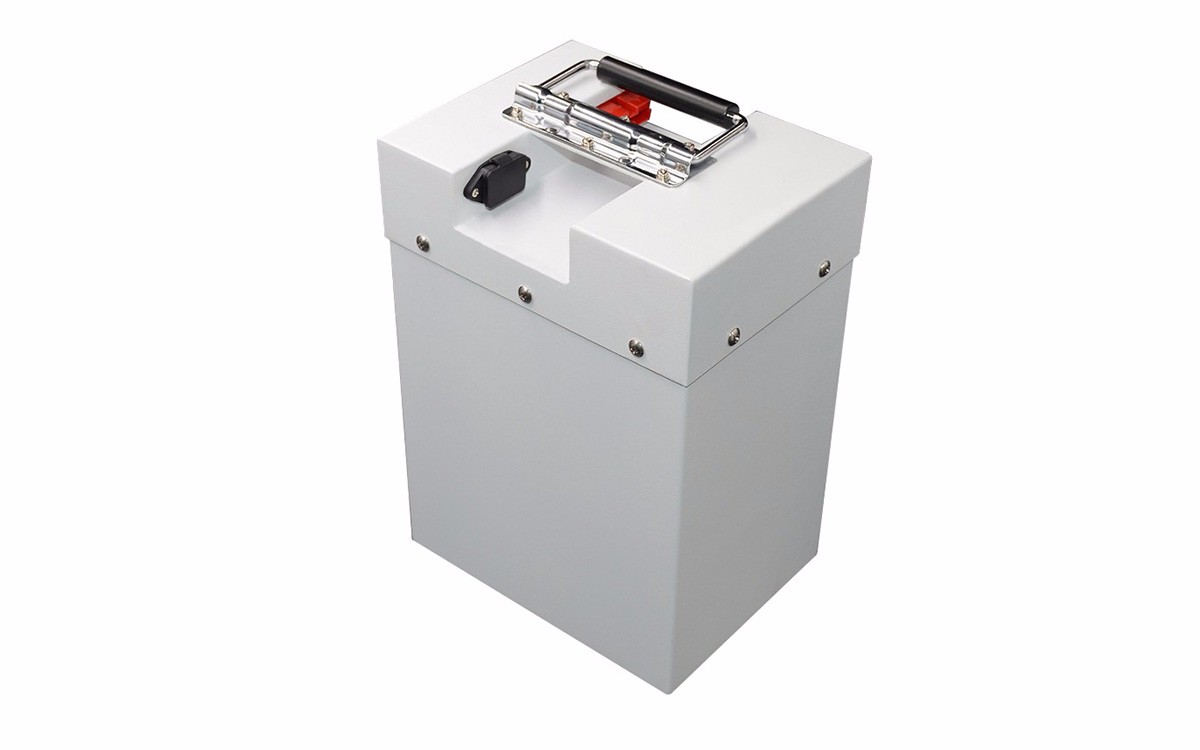

Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles
Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles
Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles
Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles
Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles
Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles
Application：
Electric Vehicle | Sightseeing Vehicle | AGV | Golf Carts | Low-speed Cars
Certification：
Lithium LiFePO4 48V40AH Battery Pack for E-Vehicles

Share it：

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V48V









The specifications are adjustable according to your specific needs

Rated Capacity - Ah40Ah
Energy - Wh1920Wh
Battery ChemicalLiFePO4
Max continuous discharge current - A40A
Peak discharge current – A & Sec80A-Sec
Max continuous charge current - A20A
BMS/PCBBuild-in BMS



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20～60℃

-4～140°F

Charge Temperature – ℃ / °F

0～45℃

32～113°F

Storage Temperature – ℃ / °F

-10～45℃

24～113°F

Dimension - mm213*164*298mm
Dimension - Inches8.38*6.45*11.73Inches
Weight - Kg16Kg
Weight – Lbs35.27Lbs
Enclosure MaterialSECC
TerminalCustomization
CommunicationBlue-Tooth
MaintenanceMaintenance Free
ApplicationElectric Vehicle / Back-up Power, etc
