Lithium-ion NCM 48V60AH Battery Pack For Medical equipment energy storage
Application:
Electric Vehicle | Sightseeing Vehicle | AGV | Golf Carts | Low-speed Cars
Certification:
Lithium-ion NCM 48V60AH Battery Pack For  Medical equipment energy storage

Share it:

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V46.8V










The specifications are adjustable according to your specific needs

Rated Capacity - Ah60Ah
Energy - Wh2808Wh
Battery ChemicalNCM
Max continuous discharge current - A60A
Peak discharge current – A & Sec75A 2Sec
Max continuous charge current - A12A
BMS/PCBBuild-in BMS



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20~60℃

-40~140°F

Charge Temperature – ℃ / °F

0~45℃

32~113°F

Storage Temperature – ℃ / °F

-5~45℃

23~113°F

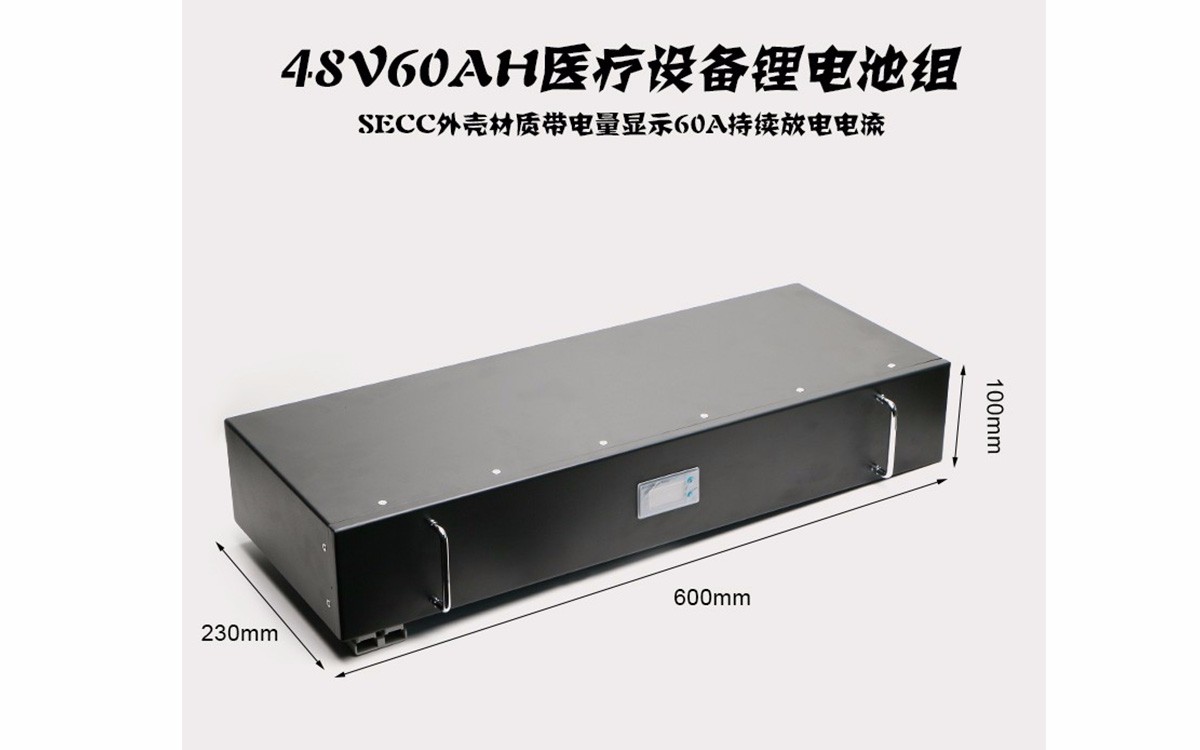

Dimension - mm100*230*600mm
Dimension - Inches3.94*9.05*23.62Inches
Weight - Kg26.5Kg
Weight – Lbs58.42Lbs
Enclosure MaterialSECC
TerminalCustomization
CommunicationRS485/RS232
MaintenanceMaintenance Free
ApplicationE-Scooter
