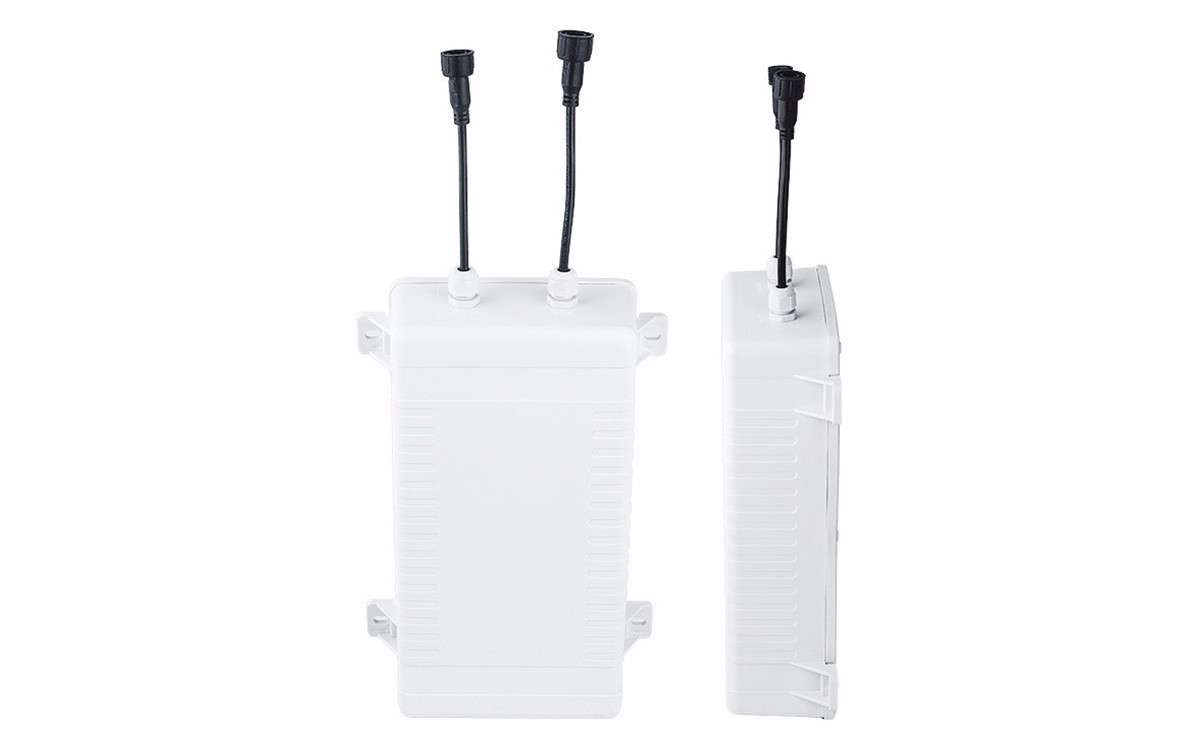

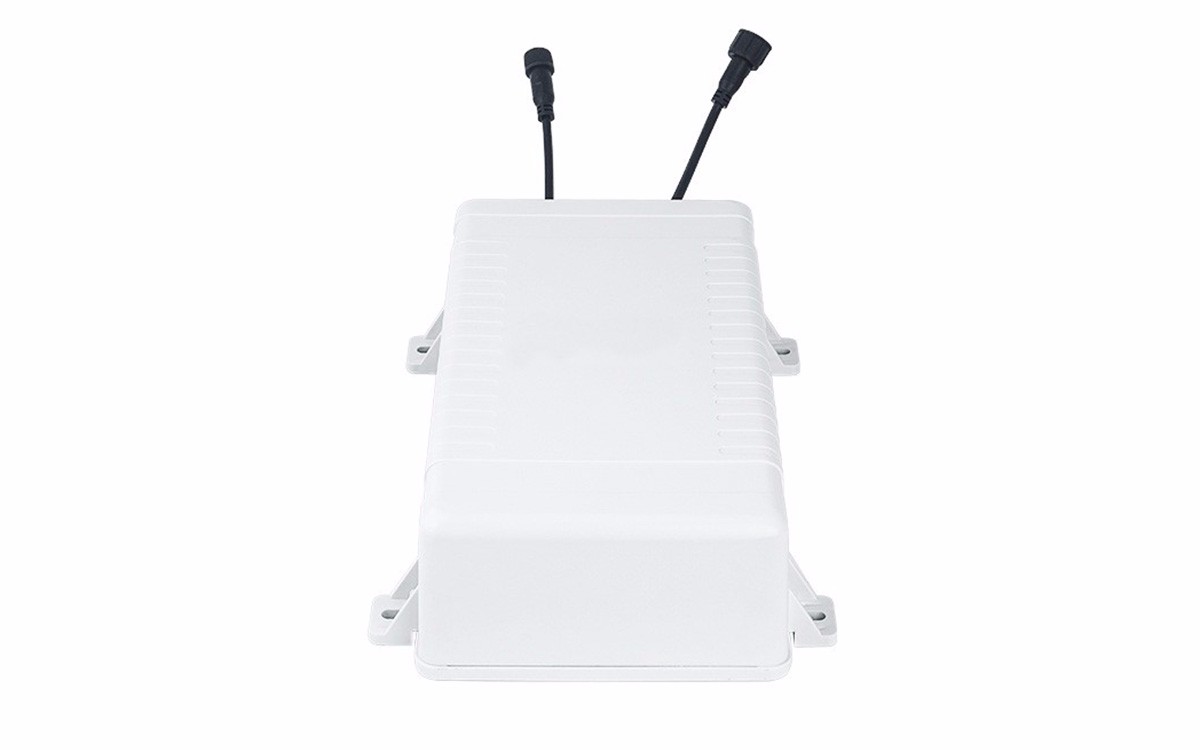

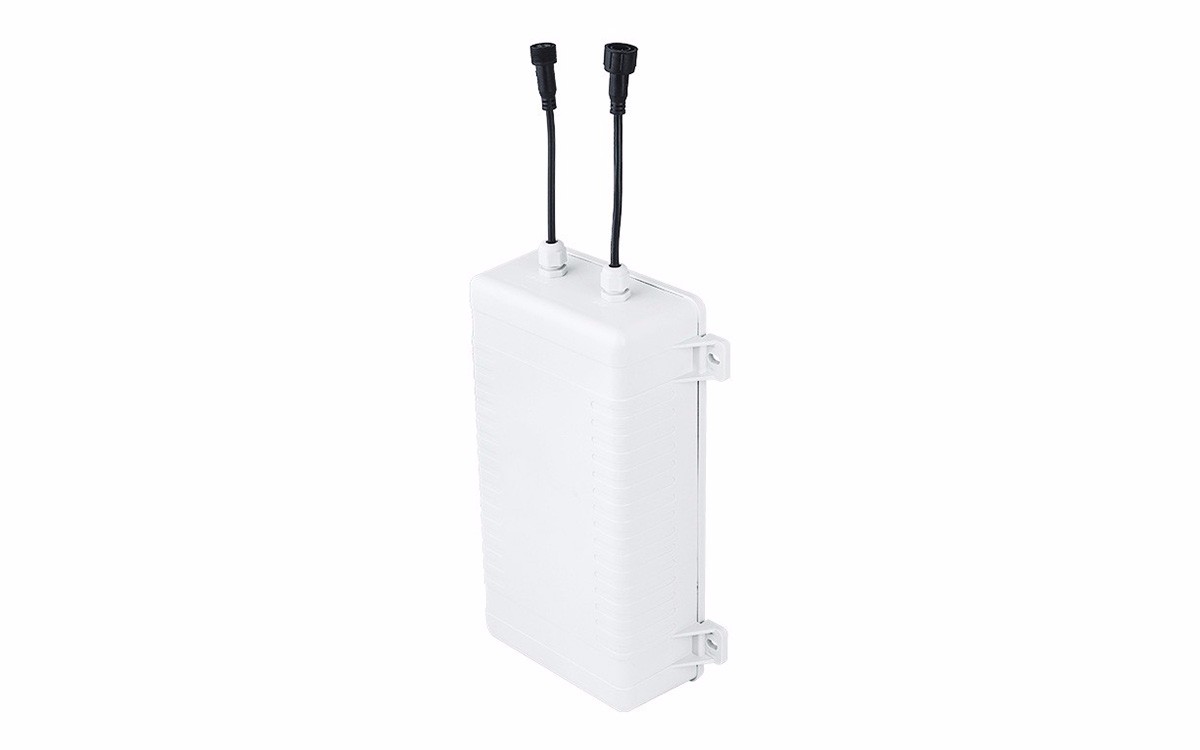

Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp
Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp
Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp
Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp
Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp
Application：
Solar Street Light
Certification：
Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp

Share it：

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V10.8V










The specifications are adjustable according to your specific needs

Rated Capacity - Ah20Ah
Energy - Wh216Wh
Battery ChemicalNCM
Max continuous discharge current - A20A
Peak discharge current – A & Sec40A 2Sec
Max continuous charge current - A10A
BMS/PCBPCB



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20～60℃

-4～140°F

Charge Temperature – ℃ / °F

0～45℃

32～113°F

Storage Temperature – ℃ / °F

-20℃～45℃

-4～113°F

Dimension - mm83*163*276mm
Dimension - Inches3.26*6.41*10.86Inches
Weight - Kg2.2Kg
Weight – Lbs4.85Lbs
Enclosure MaterialABS
TerminalCustomization
CommunicationNone
MaintenanceMaintenance Free
ApplicationSolar Street Lamp Energy Storage Lithium Battery


Lithium-ion NCM 10.8V 20AH Battery Pack for Solar Street Lamp
