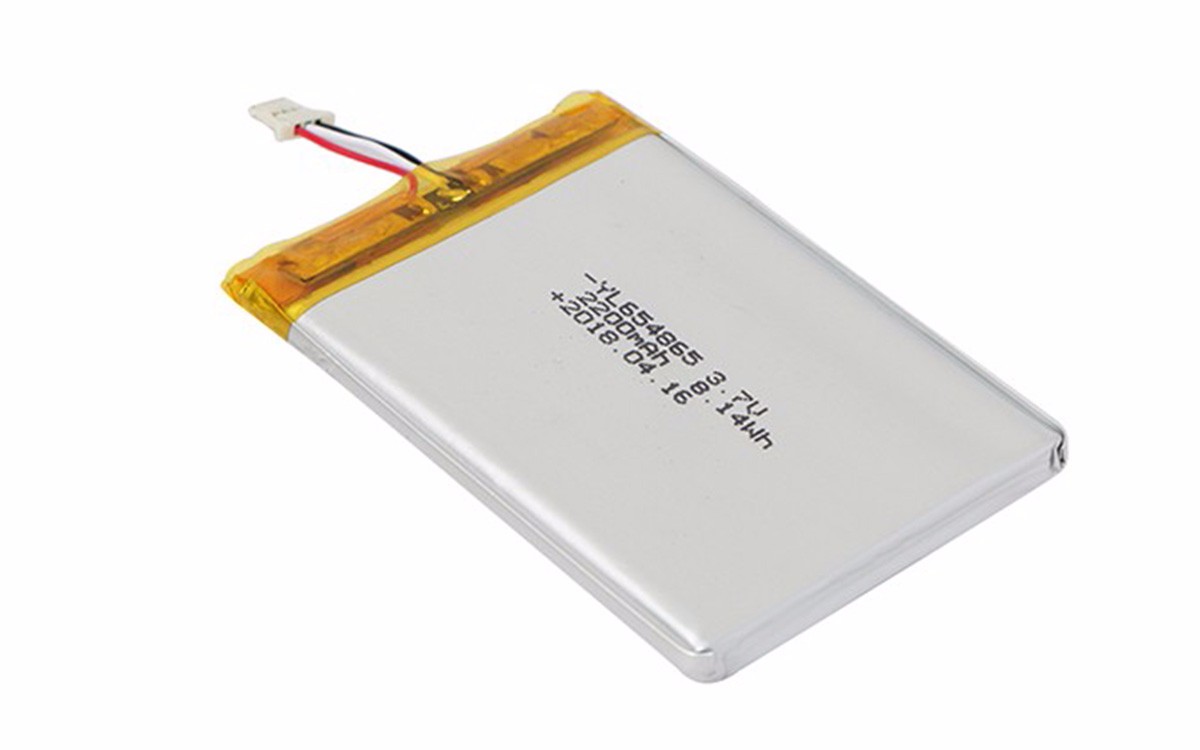

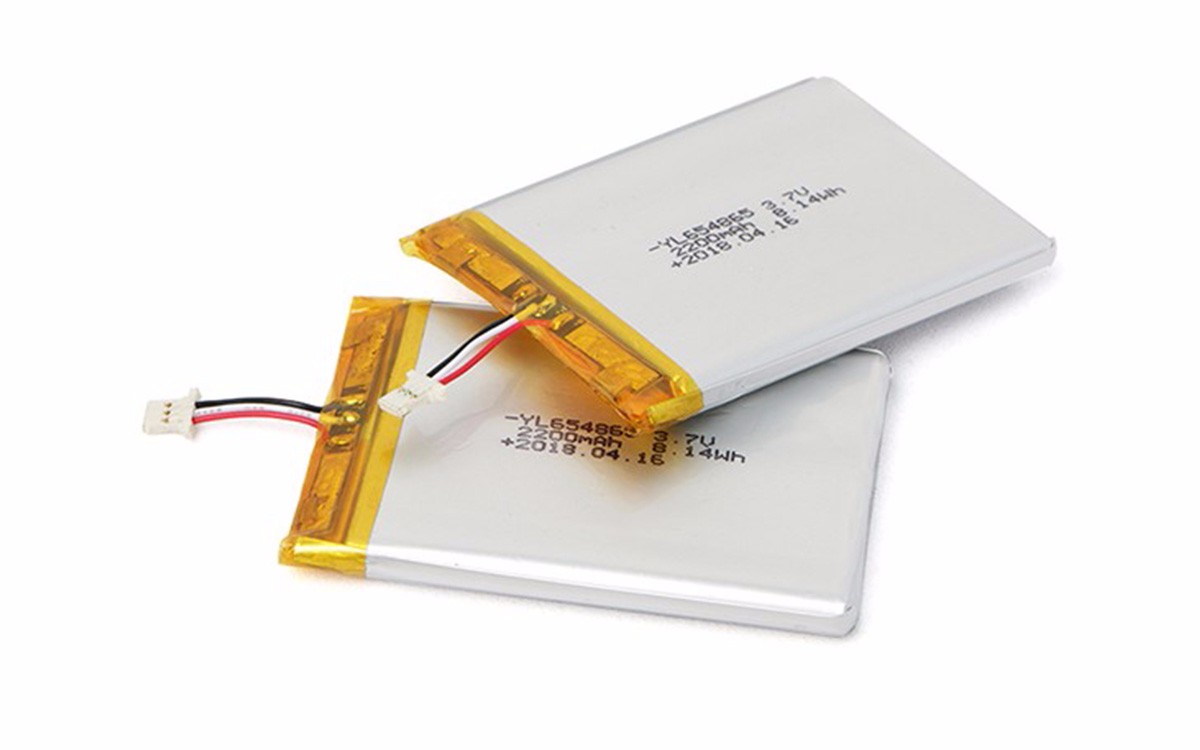

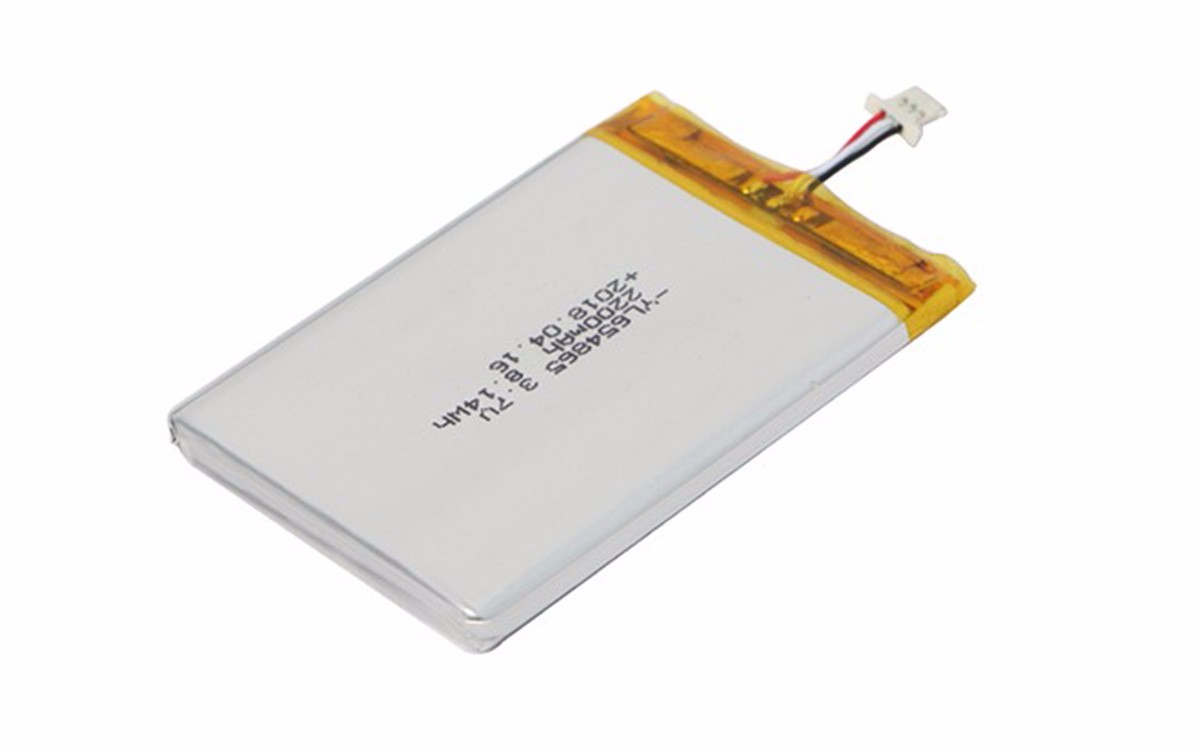

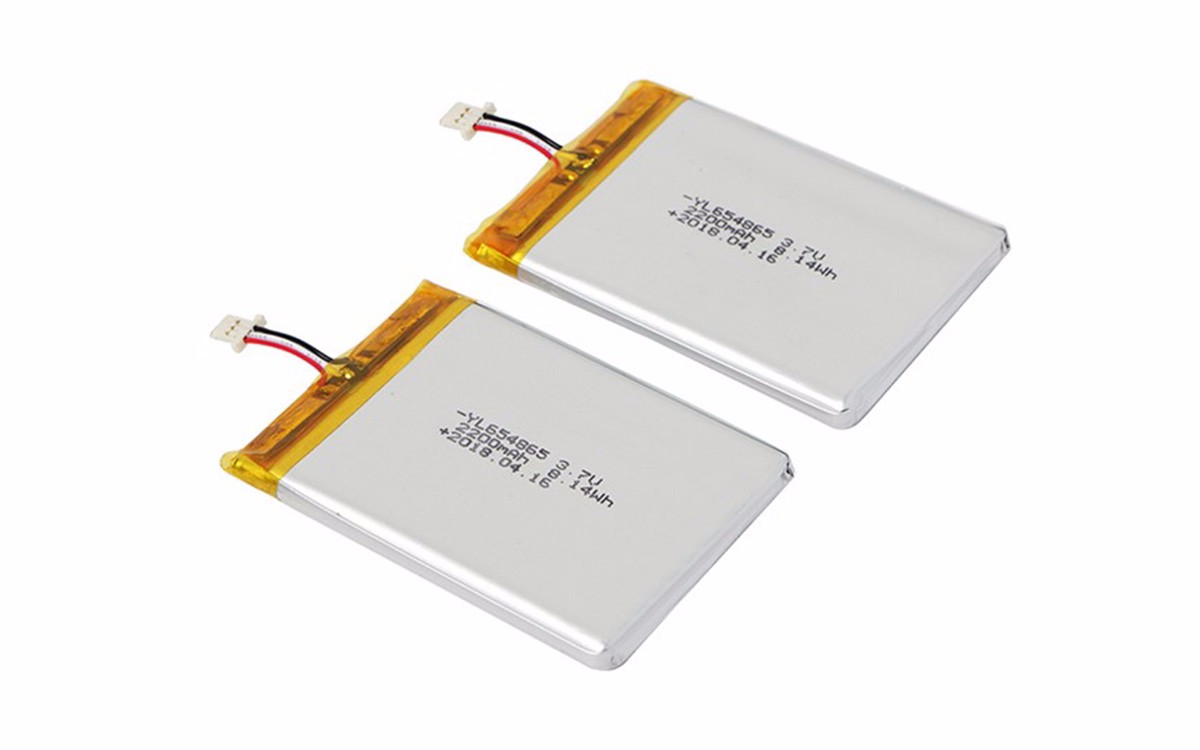

Lithium Li-polymer 654865 3.7V 2200mAH Battery Pack For Digital Products

Return

Application：

Smart Device | Bluetooth Device | Wearable Device | Medical Device

Certification：

INQUIRY

Share it：

Item	Parameters	Note
Nominal DC Voltages - V	3.7V	The specifications are adjustable according to your specific needs
Rated Capacity - Ah	2.2Ah
Energy - Wh	8.14Wh
Battery Chemical	li-polymer
Max continuous discharge current - A	2.2A
Peak discharge current – A & Sec	4.4A-2Sec
Max continuous charge current - A	1.1A
BMS/PCB	PCB
Protection	Over-Voltage
	Over-Current
	Over-Temperature
	Short - Circuit
Operation Temperature – ℃ / °F	-20～60℃ -4～140°F
Charge Temperature – ℃ / °F	0～40℃ 32～104°F
Storage Temperature – ℃ / °F	-20～45℃ -4～113°F
Dimension - mm	7.04968mm
Dimension - Inches	0.271.932.68Inches
Weight - Kg	0.05Kg
Weight – Lbs	0.11Lbs
Enclosure Material	Not Application
Terminal	Customization
Communication	None
Maintenance	Maintenance Free
Application	Digital Products
