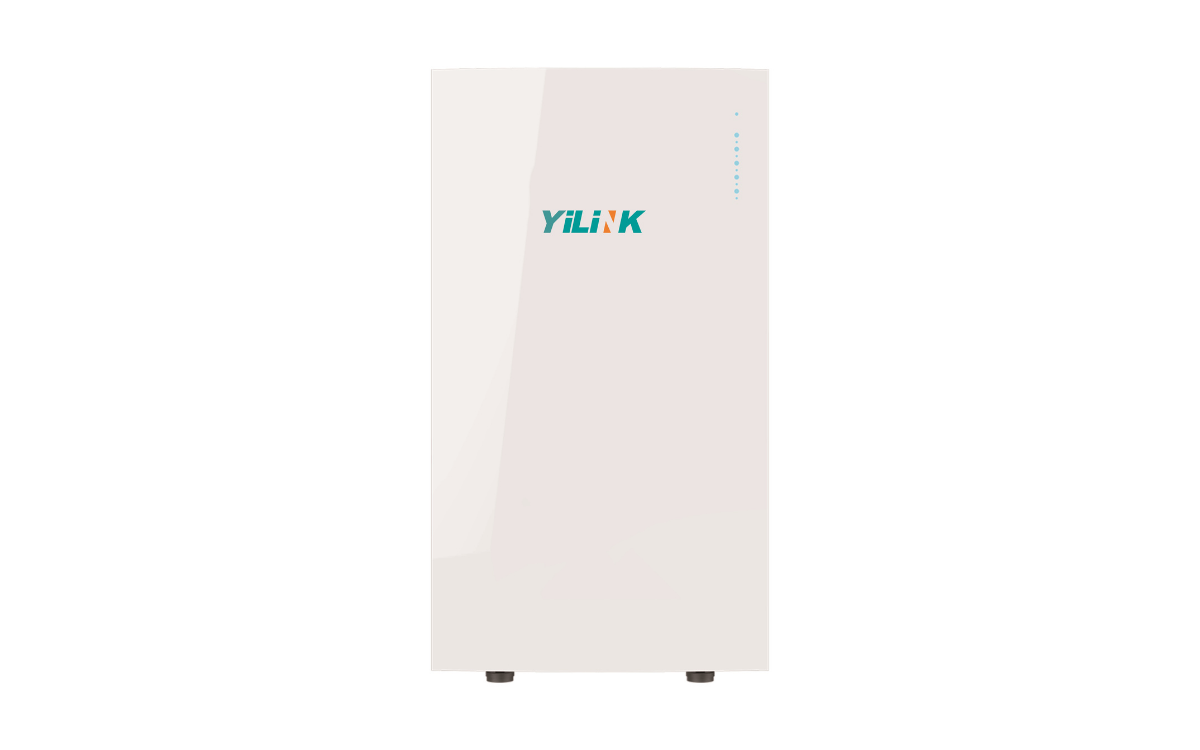

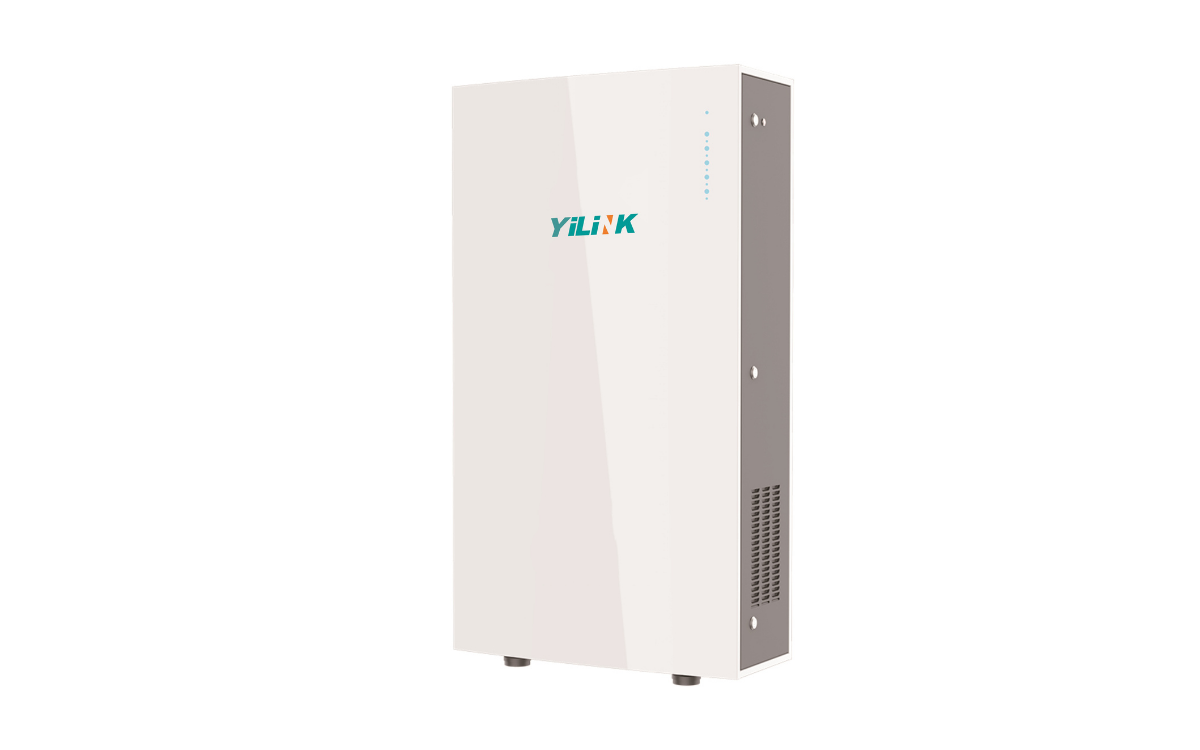

ESS Energy storage system LiFePO4 battery pack 5kWh 10kWh

■ Built-in integrated EMS, BMS, and inverter master control triple safety protection;

■ Globally integrated monitoring and management, APP one-click registration;

■ Freely set the priority order of battery power, city power, and photovoltaic;

■ 10ms seamless switching between on-off and off-grid, and never power on;

■ It can automatically determine the off-grid/on-grid mode (support 50/60Hz output), smartly connect to the grid, realize peak-shaving and valley-filling, and self-use;

■ The system efficiency is as high as 98.5%;

■ Integrated design, ready to use;

■ Applicable scenarios: Home backup/home energy-saving electricity/home emergency electricity

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Items	3KW/5KWh	5KW/10KWh
PV Input
PV Max. Power(W)	3300	6600
Max. Voltage(V)	500	500
MPPT Voltage Range(V)	120~450	120~450
Max. Input Current(A)	13	13
On-girl Output
Rated Power(W)	3000	5000
Rated Output Voltage	208/220/230/240	208/220/230/240
Grid Voltage Range(V)	180~270	180~270
Grid Frequency Range(Hz)	45-55/55-65	45-55/55-65
Rated Output Current(A)	13	13
Power Factor	≥0.99	≥0.99
THDi(%)	≤2%(Full Load)	≤2%(Full Load)
Type Of Gird Connection	L+N+PE	L+N+PE
EPS Output(With Battery)
Out Power(VA)	3000	5000
Rated Output Voltage(V)	208/220/230/240(±2%)	208/220/230/240(±2%)
Gird Frequency Range(Hz)	50/60(±2%)	50/60(±2%)
Transfer Time(ms)	10ms	10ms
Voltage Harmonic(%)	≤2%(Linear Load)	≤2%(Linear Load)
Battery
Battery Type	LFP	LFP
Nominal Voltage(V)	48	48
Max. Charging Power(A)	3000	5000
Max. Charging Current(A)	60	120
Max.Discharging Power(A)	3000	5000
Max.Discharging Current(A)	60	120
Battery Capacity(Ah)	100	200
System
Max. Efficiency(%)	97.2%/97.7%	97.2%/97.7%
Europe Efficiency(%)	96.5%/97%	96.5%/97%
Installation	Floor Mounted Against The Wall	Floor Mounted Against The Wall
IP Grade	IP54	IP54
Isolation Method(Solar)	Transformerless	Transformerless
Isolation Method(Battery)	HF	HF
Cooling	Air Cooling	Air Cooling
Noise Emission(dB)	<25	<25
Display	LED/APP	LED/APP
Ambient Humidity(%)	10~90%,Non Condensation	10~90%,Non Condensation
Temperature(℃)	-25~45	-25~45
Operation Altitude(m)	0-3000	0-3000
Standard	VDE-AR-N4105; AS/NZS4777.2:2015; NB/T 32004-2013	VDE-AR-N4105; AS/NZS4777.2:2015; NB/T 32004-2013
Safety	IEC62109-1:2010; IEC62109-2:2011; EN61000-6-2:2005	IEC62109-1:2010; IEC62109-2:2011; EN61000-6-2:2005
Communication Interface	RS485/CAN/Wifi	RS485/CAN/Wifi
Accessorier	CT,Smart Meter(Optional)	CT,Smart Meter(Optional)
Dimension(WHD)[mm]	7001245288	7001610288
Inverter Weight(Kg)	20	20
Battery Weight(Kg)	50	100
