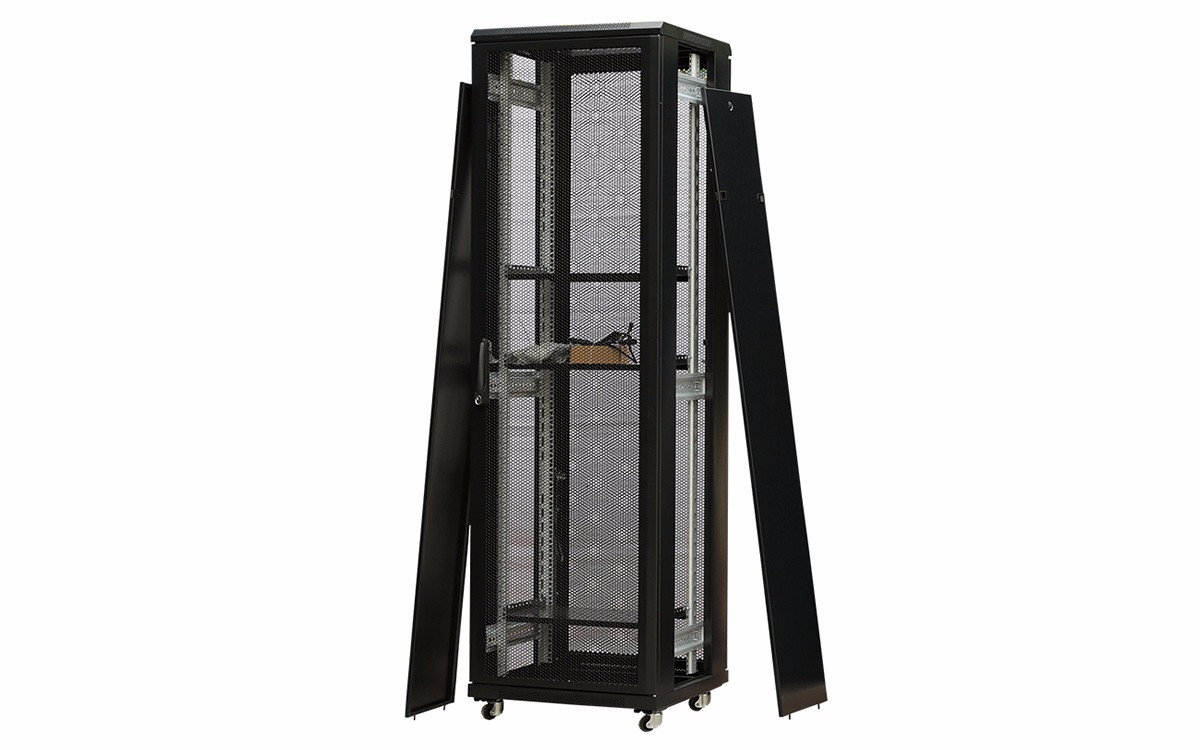

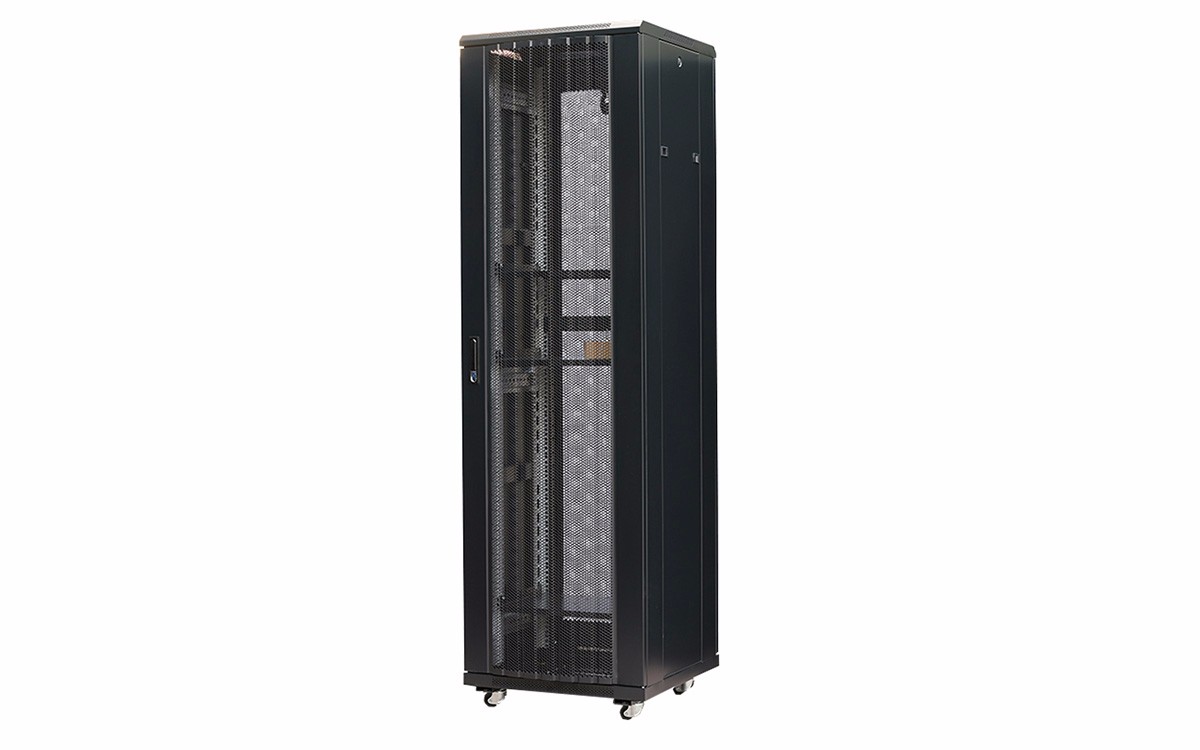

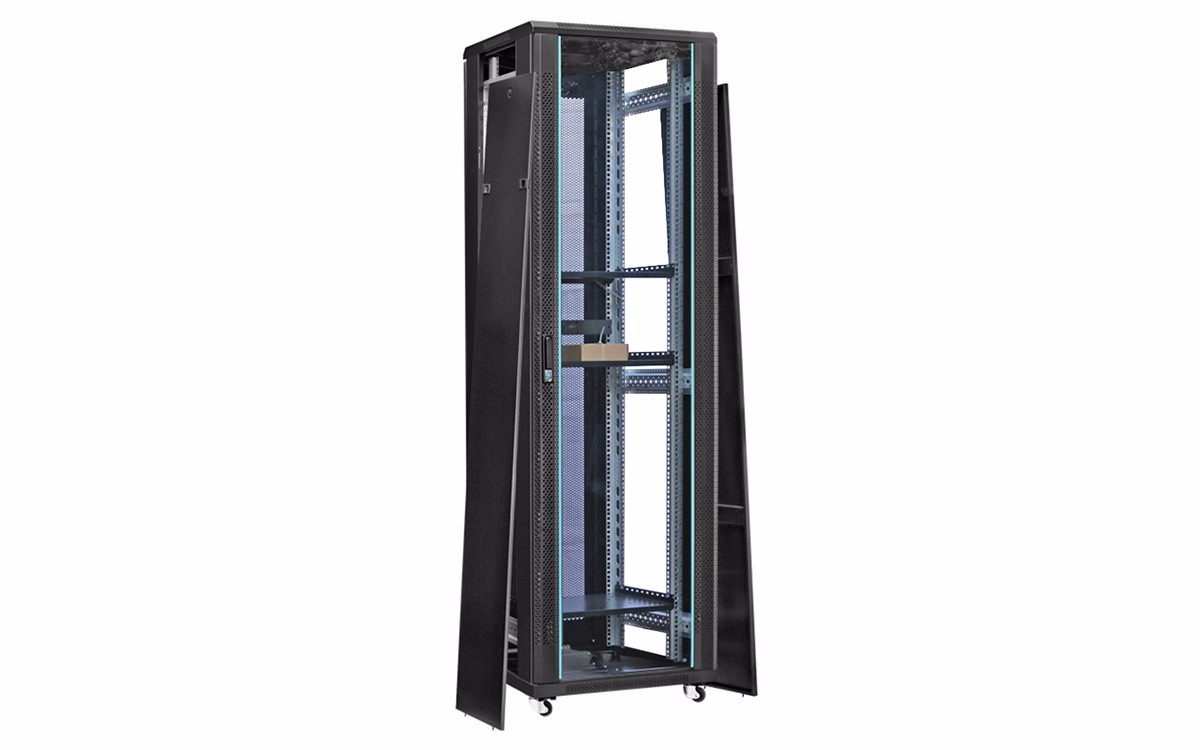

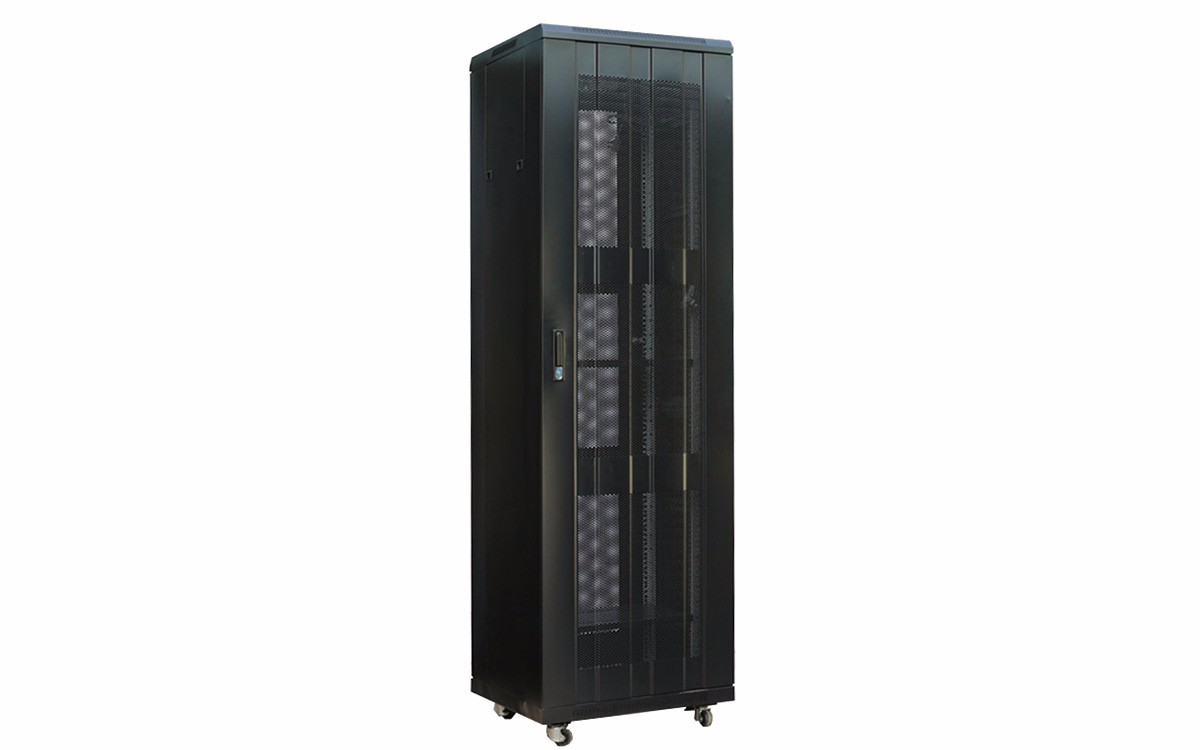

19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet
19INCH 18U~42U Rack Cabinet

19INCH Cabinet is suitable for YILINK iPower rack mounted 48V, 24V lithium battery. Multiple batteries can be installed into one cabinet conveniently.

Application：
Solar system | Data Room | UPS
Certification：
19INCH 18U~42U Rack Cabinet

Share it：

  • Specification
  • Features
  • Download
  • Video

19INCH 18U~42U Rack Cabinet


Description:



This cost-effective range of server cabinets is available in a combination of 600mm or 800mm widths with a 600mm,800mm or 1000mm depth. All cabinets are available in 18U to 42U heights with either a glass or mesh front door.



Complied with Standards:

ANSI/EIA RS-310-DIEC297-2DIN41494;PART1DIN41494;PART7, ETSI standard.



Thickness:

Mounting Rail: 1.5/2.0mm,Frame of front door: 1.5mm

Others:1.0 or1.2mm


Standard Accessory :

A.screw and nut.

B.with 4pcs castor and adjusters.

C.with 2 fixed shelf.

D.with 2 fans for 600*600 type, 4fans for 600*800 and 600*1000type.

E.1 piece PDU


ESS,Rack mounted battery,lithium ion battery,yilink


Quick Details


Cabinet Standard: ANSI/EIA RS-310-DIEC297-2DIN41494;

Material: SPCC Cold Rolled Steel

Size:18U~42U

Product name: Floor Network Cabinet

Description:19 Inch Floor Network Rack

Height:18U~42U

Width: 600mm,800mm

Depth: 600mm,800mm,1000mm

Color: Black,Grey

Environment:Standing type

Packing: Carton+Pallet


Product Description


Quick Detail:

1. Material:Cold rolled steel with powder coat finishing

2. 19 inch standard floor Cabinet,available from 18U to 42U.

3. Lockable key type and reversible quick-release front and rear doors.

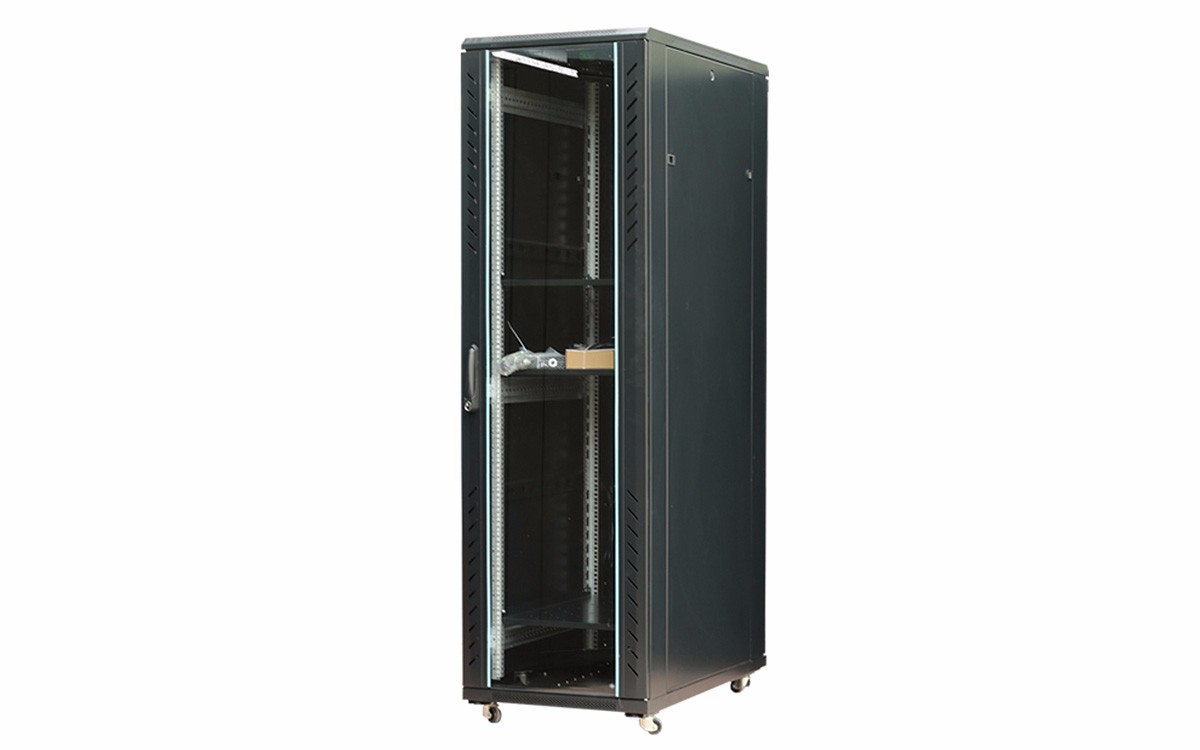

4. Front door with safety but toughened glass,easy to check the status inside of the cabinet without open the door.

5. Perforated steel rear door

6. Size: Wideth:600mm or 800mm.Depth:600mm or 800mm or 1000mm,800mm or 1000mm.

7. Packing:Whole pack or in Bulk


19INCH 18U~42U Rack Cabinet
