Application:
Certification:
Solar battery connector

Share it:

  • Specification
  • Features
  • Download
  • Video

●  Durability:500 times;

●  Rated Voltage:600V AC(MAX);

●  Resistance:0.5 milliohm(MAX);

●  Insulation Resistance:2000 Megohm (MIN);

●  Separating Force:110N(MIN)

●  Operating Temperature:-40℃ ~ +125°C;

●  Cable Range:25mm²~50mm²

●  Fire Rating:UL94V-0

●  IP Class:IP67(Mated)

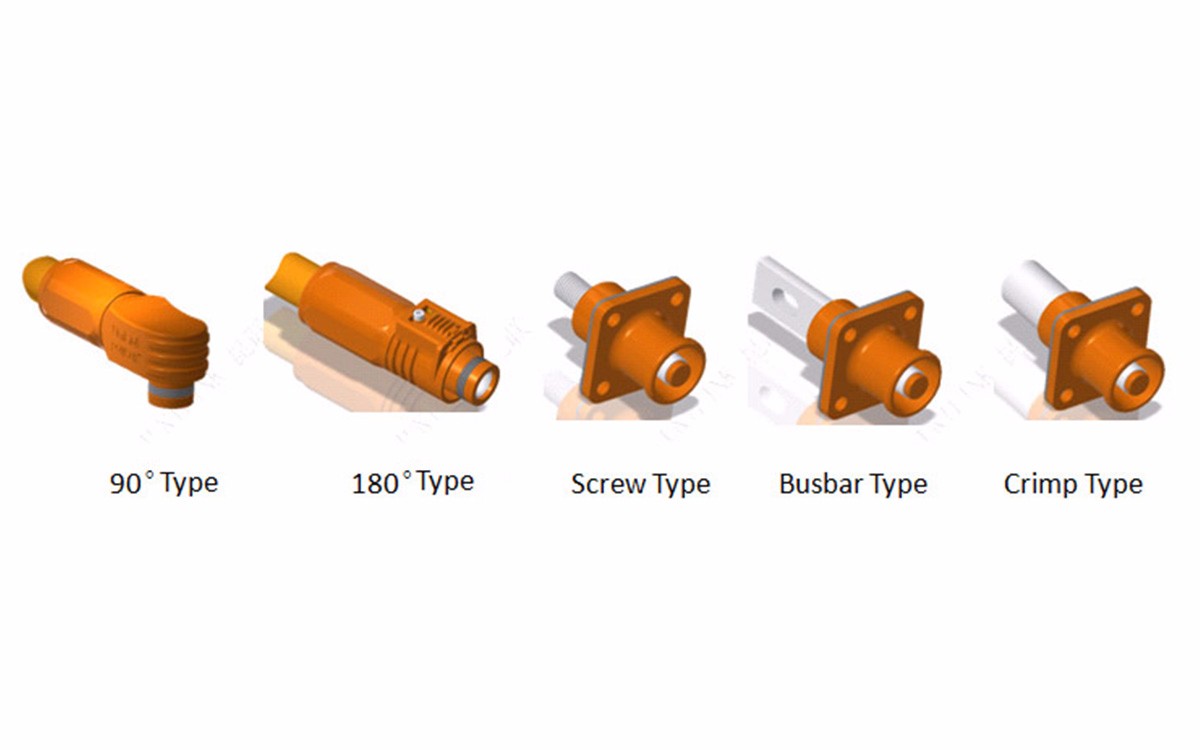

Product diagram


ESS,battery connector,yilink,lithium ion

Product specifications and models


Pin diameter(mm)Rated Current(A)ReceptaclePlug


6.0


125

Screw Type


90°Type

Busbar Type
Crimp Type


8.0


180

Screw Type


90°Type

180° Type

Busbar Type
Crimp Type


10.0


250

Screw Type


90°Type

180° Type

Busbar Type
Crimp Type
