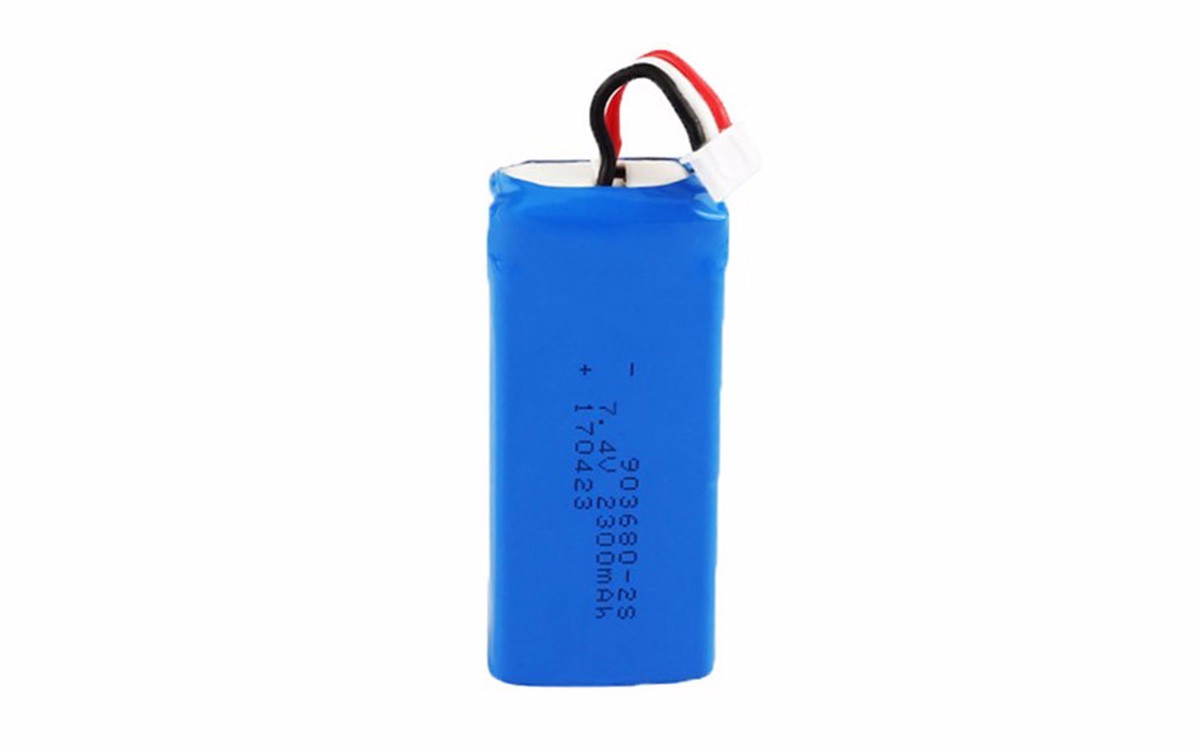

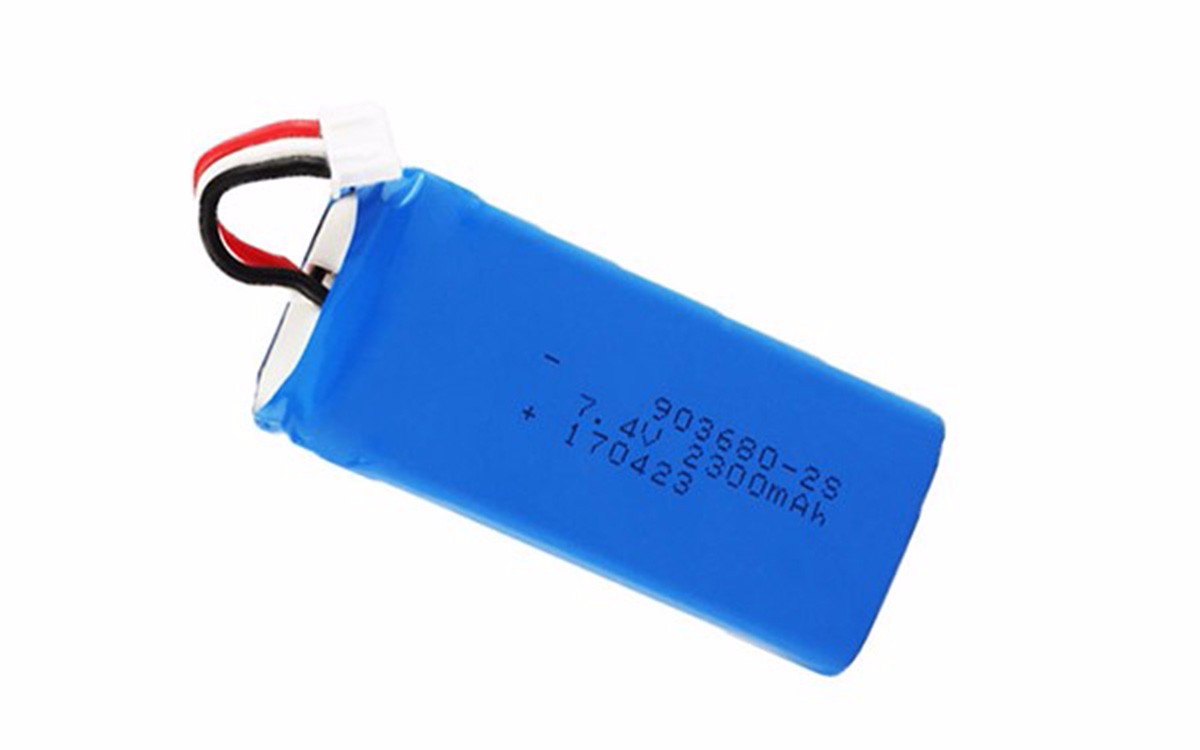

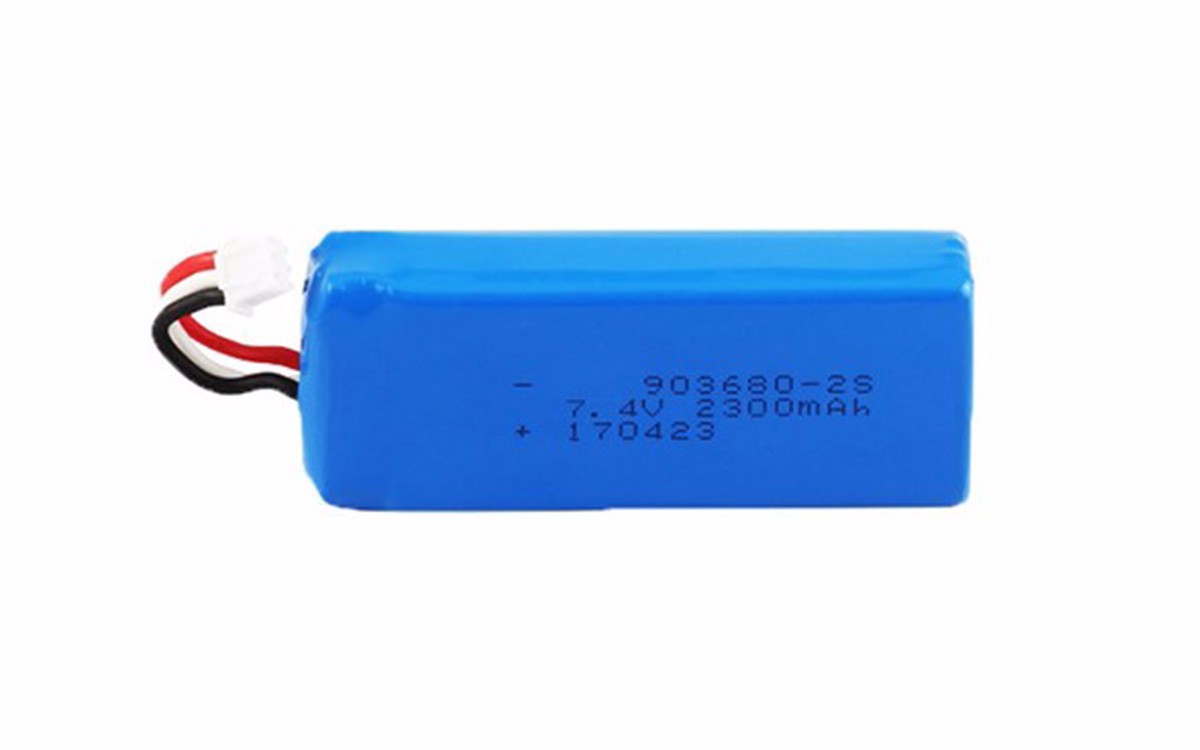

Lithium Li-polymer 903680 7.4V 2300mAH Battery Pack For Toy
Application:
Smart Device | Bluetooth Device | Wearable Device | Medical Device
Certification:
Lithium Li-polymer 903680 7.4V 2300mAH Battery  Pack For Toy

Share it:

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V7.4V










The specifications are adjustable according to your specific needs

Rated Capacity - Ah2.3Ah
Energy - Wh17.02Wh
Battery ChemicalLi-polymer
Max continuous discharge current - A2.3A
Peak discharge current – A & Sec4.6A-2Sec
Max continuous charge current - A1.15A
BMS/PCBPCB



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20~60℃

-4~140°F

Charge Temperature – ℃ / °F

0~40℃

32~104°F

Storage Temperature – ℃ / °F

-20~45℃

-4~113°F

Dimension - mm19*37*83mm
Dimension - Inches0.75*1.46*3.27Inches
Weight - Kg0.09Kg
Weight – Lbs0.20Lbs
Enclosure MaterialPVC
TerminalCustomization
CommunicationNone
MaintenanceMaintenance Free
ApplicationModel airplanes, Model cars, Various Toys
